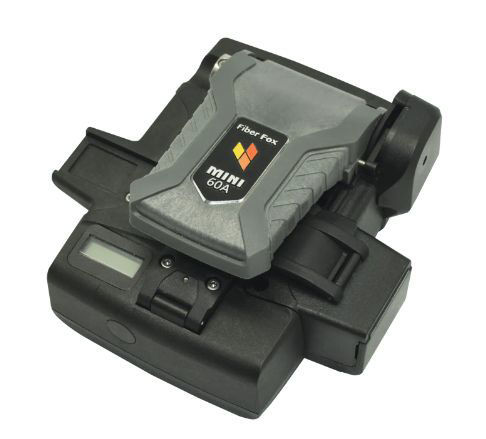

Softing IT Networks FFMINI60A,228406 Softing, e.g. FiberFox Mini 60A fiber optic breaking device with fiber waste container content_copy

The FiberFox Mini-60A is an optical fiber cleaver (fiber cutting device, cleaver) from Softing IT Networks, specifically designed for precise and clean cutting of optical fiber cables in the field of optical networks. It serves as a tool for field termination of fiber optic cables, particularly in FTTH installations (Fiber to the Home), where accurate fiber cleaving is essential for subsequent connector mating. The device is compactly designed and enables a reproducible, clean fiber end face, ensuring high transmission quality and minimal reflections. The integrated fiber residue container collects the cut fiber pieces, ensuring a clean working environment and minimizing the risk of fiber splinters.

Applications

The FiberFox Mini-60A is primarily used in fiber optic installations, especially for mounting fiber optic connections in telecommunications, FTTH connections, or data centers. It is suitable for cutting single-mode fibers (SM) with a core diameter of 9/125 µm, which are installed in cables with a diameter of 0.9 mm. The application mainly takes place on-site, where quick and reliable fiber cleaving is required, for example, during the installation of LC or SC connectors.

Functions and Equipment in Detail

The device features a mechanical guide that enables precise positioning of the fiber to ensure a clean, perpendicular cut. The integrated fiber cleaving is performed by a sharp, precisely adjusted cleaving mechanism, producing a uniform and reproducible fiber end face. The fiber residue container is directly attached to the device and collects the cut fiber pieces, ensuring a contamination-free working environment. The device is designed for use in craft practice, with simple and intuitive operation.

Technology Explained Simply

An optical fiber cleaver (cleaver) is used to cleanly and perpendicularly cut the end of an optical fiber cable without damaging or irregularly breaking the fiber. A clean fiber end face is crucial for efficient optical connection, as it minimizes reflections and signal loss. The FiberFox Mini-60A uses a mechanical cleaving process, where the fiber is positioned in a guide and broken at a defined point. The precision of the cleaving mechanism ensures that the fiber end face is perpendicular to the fiber axis, which is necessary for optimal connector mating. The fiber residue container prevents cut fiber pieces from being lost or contaminating the work environment.

Compatibility and Accessories

The FiberFox Mini-60A is designed for use with optical fiber cables with a diameter of 0.9 mm, particularly single-mode fibers (SM) with 9/125 µm. It is compatible with accessories such as field-terminable connectors (LC/APC, SC/APC) and other tools for fiber optic installation, such as fiber cutters, stripping tools, and carrying cases. Use with a fiber checker (laser light, VFL) allows verification of fiber integrity after cleaving. Combining it with a Kevlar scissors or a fiber cleaver can support the workflow during cable preparation.

Mounting and Installation

The device is operated manually. The fiber is inserted into the cleaver's guide, with positioning supported by a mechanical guide. The cleaving mechanism is then activated, breaking the fiber at the designated point. The cut fiber is automatically directed into the integrated fiber residue container. Operation requires no additional tools or aids, and the device is designed for use in craft practice.

Advantages in Operation

The FiberFox Mini-60A offers high precision in fiber cleaving, resulting in improved signal quality and reduced reflections. The integrated fiber residue disposal ensures a clean working environment and reduces the risk of fiber splinters. The compact design enables easy handling and portability, making it particularly suitable for mobile applications. Using this device leads to faster and more reliable cable termination, increasing overall efficiency in fiber optic installations.

General
Function	Fibre cleaver
Compatibility	Fibre optic cable 0.9 mm, SM 9/125 µm

---
