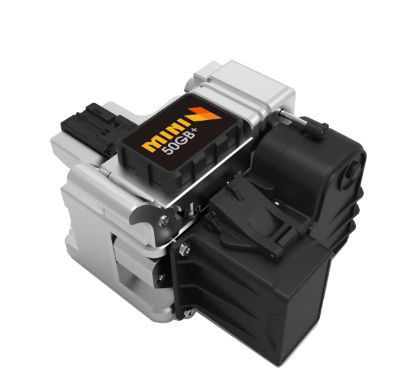

Softing IT Networks FFMINI50GB,228405 Softing, e.g. FiberFox Mini 50GB+ fiber optic breaking device with fiber waste container content_copy

The FiberFox Mini-50GB+ is a fiber optic cleaver from the brand Softing IT Networks, specifically developed for precise cutting of fiber optic cables in the field of optical networking technology. It is a fiber cleaving device (cleaver) designed for processing single-mode and multi-mode fibers, ensuring high cut quality. The device is equipped with a fiber residue container, enabling safe and hygienic disposal of the resulting fiber fragments. It is used in measurement technology and network installation, where clean and reproducible fiber end preparation is required.

Applications

The FiberFox Mini-50GB+ is used in the installation and maintenance of fiber optic cable networks, particularly in telecommunications, FTTH connections, and data centers. It is suitable for field termination of fiber optic cables, where fast and reliable fiber end preparation is necessary. The device is designed for use with standard fiber optic cables, especially cables with a diameter of 0.9 mm, commonly used in FTTH applications. The integrated fiber residue container function makes it particularly suitable for mobile applications, where a clean working environment must be ensured.

Functions and Equipment in Detail

The device features a mechanical cleaving mechanism that enables precise and clean fiber breaking. The fiber is positioned in a guiding system and broken under defined pressure, resulting in a clean, perpendicular cut. This is essential for optimal light transmission in the subsequent fiber connection system. The integrated fiber residue container collects the resulting fragments, preventing contamination of the work environment. The device is compact and easy to handle, making it suitable for mobile applications.

Technology Explained Simply

A fiber optic cleaver, also known as a cleaver, is used for precise cutting of fiber optic cables. Unlike simple scissors or pliers, which often produce inaccurate or angled cuts, a cleaver operates mechanically and produces a clean, perpendicular cut. This is crucial to minimize reflections and signal loss in optical networks. The FiberFox Mini-50GB+ uses a mechanical cleaving mechanism that breaks the fiber under defined pressure, achieving high cut quality. The integrated fiber residue container function ensures that the resulting fragments are safely collected.

Compatibility and Accessories

The FiberFox Mini-50GB+ is designed for processing standard fiber optic cables, especially cables with a diameter of 0.9 mm. It is compatible with accessories such as fiber optic accessory carrying bags, stripping tools, fiber cleavers, Kevlar scissors, and field-terminable connectors (LC(APC) and SC(APC) for 0.9 mm SM 9/125 µm cables). These accessories support the device’s use in field installations and enable efficient and clean fiber processing. Additionally, fiber optic testing devices such as a Fiber Checker (VFL) can be used to check the integrity of the processed fiber after cutting.

Mounting and Installation

The device requires no mounting; it is held and operated directly by hand. The fiber is placed into the guiding system, and the cutting process is initiated by actuating a lever mechanism. Operation is manual, with fiber positioning and pressure application being critical for cut quality. The integrated fiber residue container must be emptied after each use to ensure continuous operation.

Advantages in Operation

The FiberFox Mini-50GB+ offers high cut accuracy, which is crucial for the quality of the optical connection. The integrated fiber residue container function ensures a clean working environment and reduces the risk of injury from sharp fiber fragments. The compact design enables mobile use, and the simple operation makes it suitable for technicians in the field. Use in combination with other fiber optic accessories, such as stripping tools or field-terminable connectors, supports efficient and safe fiber processing.

General
Manufacturer	Softing IT Networks
Function	Fibre cleaver
Accessories	Fiber residue container
Compatibility	Fibre optic cable, 0.9 mm

---
