Softing IT Networks 230000 Softing WireXpert MP C8 LAN Kupferkabel-Zertifizierer Klasse D, E, EA, F, FA, I, II und höher 3000 MHz content_copy

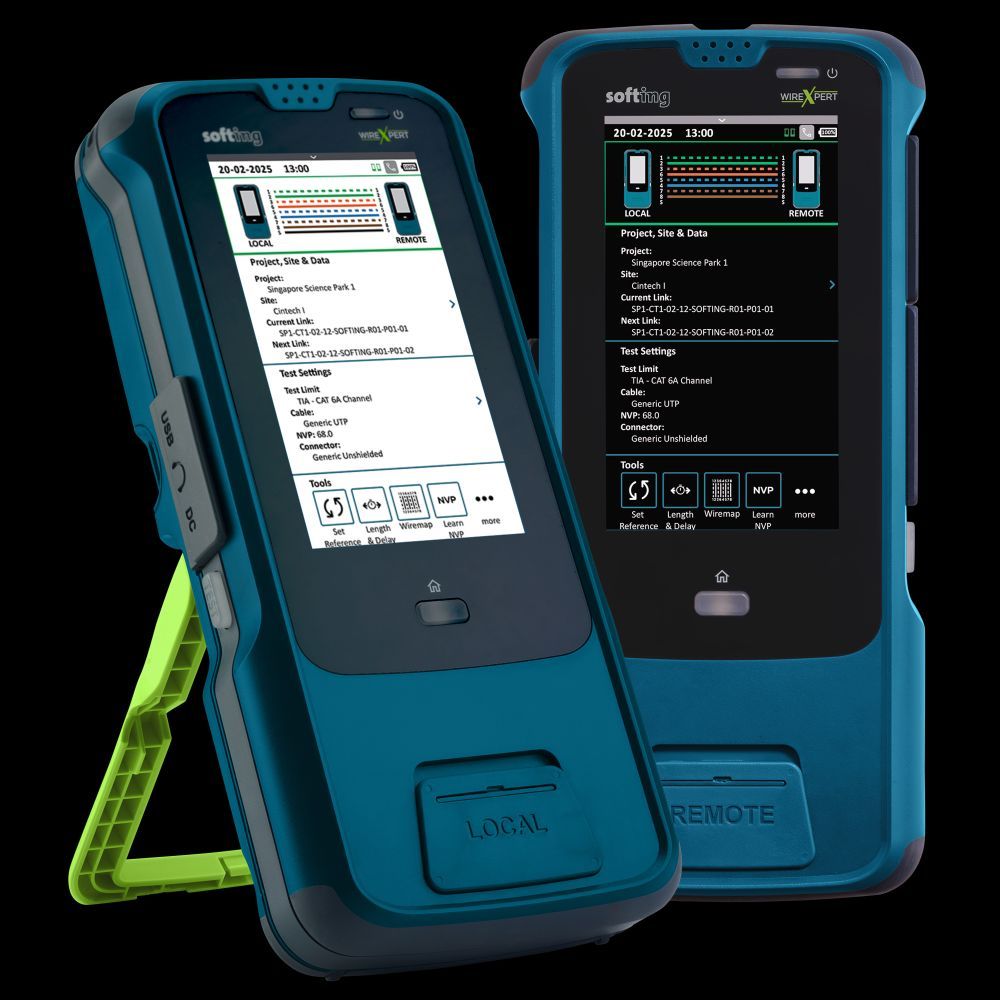

The Softing WireXpert MP C8 is a high-quality LAN copper cable certifier developed for testing and certifying cabling systems up to a bandwidth of 3000 MHz. It is used for validating cables according to standards Class D, E, EA, F, FA, I, II and higher, including Cat 5, 5e, 6, 6A, 7, 7A, and Cat 8. The device is part of the WireXpert MP series and is positioned as the flagship for copper testing up to Cat 8. It features a Dual Control System PLUS (DCS+™), enabling simultaneous use of two devices as Local and Remote ends, thereby making testing processes more efficient. Both devices are equipped with large colour LCD screens, simplifying operation and fault diagnosis. The FlipTag mode allows flexible use of each device as Local or Remote, optimising team workflows.

Applications

The WireXpert MP C8 is designed for professional users in the field of network infrastructure, particularly for installers, technicians, and testing engineers who need to certify cable systems in corporate networks, data centres, or buildings. It is suitable for testing copper cables in high-speed networks requiring up to 3000 MHz bandwidth, for example in environments with Cat 8.1 or Cat 8.2 cabling. Certification is performed according to internationally recognised standards, including ISO Level VI, V, IV, IIIe and TIA Level 2G as well as IIIe, with accuracy requirements confirmed by ETL certification. This ensures compliance with the highest quality standards.

Functions and Equipment in Detail

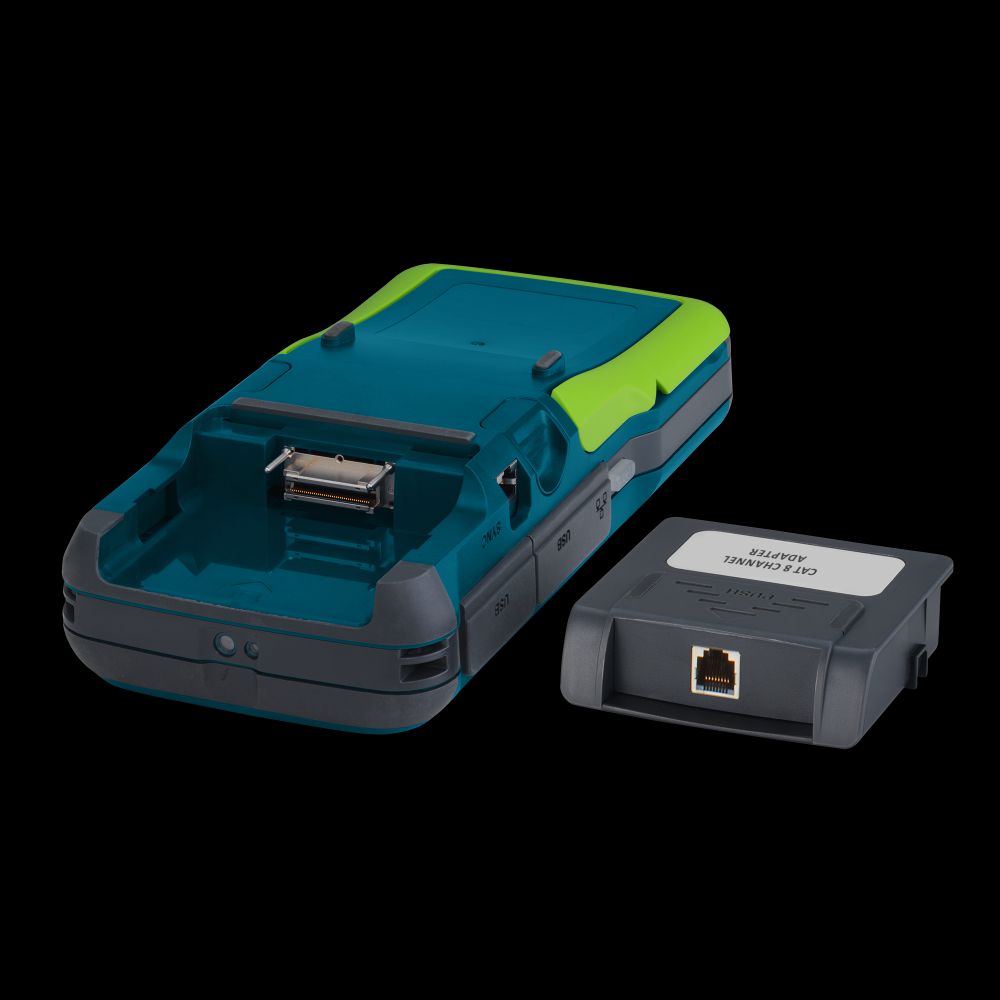

The device supports various test modes, including DCRU and TCL measurement, as well as MPTL and EzE test modes. Fast testing times enable efficient processing of jobs. A quick Pre-Wiremap function detects Wiremap issues before starting an autotest, speeding up fault detection. The equipment includes two WireXpert MP mainframes, each with a copper test module C8 up to 3000 MHz, two Li-ion batteries, two power supplies, a carrying bag, a calibration certificate, the evaluation software eXport (provided as a download), two CAT8.1 Channel adapters, two CAT8.1 Permanent Link adapters, Longlife Permanent Link test cables, a DCRU calibration artefact, two speaker sets, and a quick start guide. The Longlife test cables are replaceable and cost-effective, making maintenance and operation economical.

Technology Explained Simply

The 3000 MHz bandwidth enables testing of the most modern cable systems designed for high-speed data transmission. The test modules are designed for testing cables up to Cat 8.2, meeting the highest requirements for performance and signal integrity. The Dual Control System PLUS (DCS+™) ensures that both devices can be operated independently, reducing testing time and simplifying fault localisation. The integrated evaluation software eXport enables the creation of detailed reports and documentation required for traceability and certification. The software is available free of charge and can be downloaded directly.

Compatibility and Accessories

The WireXpert MP C8 is expandable with various accessories that extend its functionality. These include the WireXpert MP Fibre Optic Test Module FM, the WireXpert MP Fibre Optic Test Module Quad, the WireXpert MP Fibre Optic Test Module FS, the CAT 8.2 TERA Channel Adapter, the Camera Cover, the Headset, the Hard Shell Case for WireXpert MP Kit, and the Softing Cable Tracker Probe CP15. These components enable integration into comprehensive testing and maintenance systems, especially for fibre optic infrastructures. The fibre optic test modules support measurements at 850/1300 nm (multimode) and 1310/1550 nm (singlemode), enabling comprehensive quality assurance.

Installation and Mounting

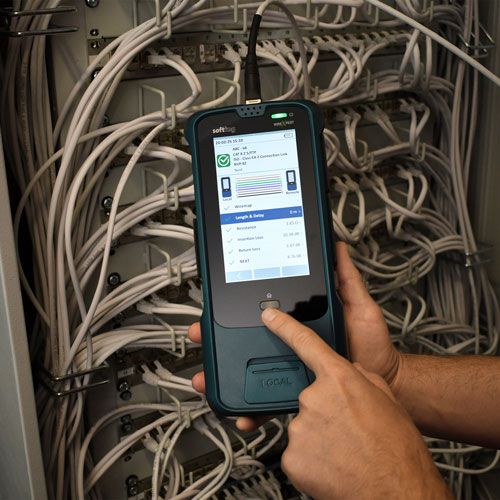

Installation is performed by connecting the two mainframes via test cables at each end of the cable to be tested. The devices are designed for practical use and require no special mounting. Operation is via the integrated screens, with the quick start guide supporting setup and initial use. The devices are designed for field use and can be operated with the included batteries, ensuring mobile operation.

Operational Advantages

The WireXpert MP C8 offers high testing accuracy and reliability, guaranteed by ETL certification and compliance with international standards. Fast testing times and integrated fault diagnosis reduce working time and increase efficiency. The replaceability of Longlife test cables reduces operating costs. Documentation functions enable detailed traceability and archiving of test results, which is essential for certification and maintenance of network infrastructures. Compatibility with various accessories expands application possibilities and allows flexible adaptation to different requirements.

General
Number of mainframes	2
Number of power supplies	2
Number of channel adapters	2
Number of Permanent Link adapters	2
Number of speaker sets	2

---
