Softing IT Networks 226003,PS_LM35 Softing LanMaster 35
|
319,28 EUR |
|
|
( 379,94 EUR incl. VAT ) ≈ £266.28 | ≈ $356.64 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 463791 |
|---|---|
| Mfg Part No: | 226003,PS LM35 |
| UPC/EAN: | 0046382253481 |
| Weight: | 0.524 kg |
Further Network Analyzers from Softing IT NetworksFurther products in category Network Analyzers
All products of Softing IT Networks
Product information for Softing IT Networks 226003,PS_LM35:

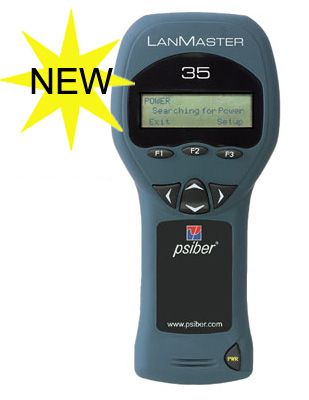

The LanMaster 35 from Softing IT Networks is a handheld network tester for Local Area Networks (LAN). It is used for diagnosis and troubleshooting in Ethernet networks and enables checking of connections, cable lengths, as well as detection of short circuits and breaks. The device is specifically designed for testing 10/100/1000 BaseTX connections and detects the current link speed and duplex mode. It supports detection of Power over Ethernet (PoE) according to the IEEE 802.3af standard as well as Cisco Inline Power, which is considered a non-standard variant. These functions are important for quickly identifying power supply issues in network cables, especially during installation or maintenance of PoE devices such as IP cameras or VoIP phones.
Applications
The LanMaster 35 is used in IT infrastructure installation and maintenance, particularly for testing network cables on-site. It is suitable for technicians working in network technology, building automation, or telecommunications. The integrated hub activation enables testing of connections via a hub or switch, simplifying the diagnosis of network problems. The tone generator function supports cable identification in a cable distribution, especially in complex installations with many parallel lines.
Functions and Equipment in Detail
The device measures the length of Ethernet cables, which is helpful during installation to ensure the maximum allowable length of 100 meters is not exceeded. It detects short circuits and breaks, which can cause connection issues. Detection of link speed (10/100/1000 BaseTX) and duplex mode (half- or full-duplex) enables precise analysis of the network connection. PoE detection according to IEEE 802.3af and Cisco Inline Power is particularly useful to ensure that power supply over the network cable is functioning correctly. The integrated hub activation temporarily activates the hub to test the connection without requiring additional devices.
Technology Explained Simply
The LanMaster 35 analyzes electrical signals in the Ethernet cable to determine cable length and locate faults such as short circuits or breaks. PoE detection is based on analyzing voltage and current flow in the cable to determine whether power is being supplied over the network cable. Link speed detection is achieved by analyzing the signal transmission rate, with the device distinguishing between 10, 100, and 1000 Mbit/s. The duplex mode is also detected to verify whether the connection is operating in half- or full-duplex mode. The tone generator produces an acoustic signal that is transmitted over the cable and can be received using a separate tone receiver.
Compatibility and Accessories
The device is compatible with standard Ethernet connections in the 10/100/1000 BaseTX range. It supports PoE according to IEEE 802.3af and Cisco Inline Power. The tone receiver is required to receive the acoustic signal from the built-in tone generator, which is helpful for cable identification in a cable distribution. Using the tone receiver requires no additional devices or software, as the function is directly integrated into the LanMaster 35.
Mounting and Installation
The LanMaster 35 is directly connected to the Ethernet cable without additional mounting or installation. Testing is performed by simply connecting the device to the connection to be tested. Operation is via an integrated user interface that displays the test results. Device functions such as cable length measurement, fault detection, and PoE testing are automatically executed as soon as the device is connected. The integrated hub activation is also controlled via the device, without requiring additional settings.
Advantages in Operation
The LanMaster 35 provides fast and reliable diagnosis of network connections. Integrated functions such as cable length measurement, fault detection, and PoE testing reduce troubleshooting time. The combination of tone generator and optional tone receiver use enables precise cable identification in complex installations. Operation is simple and requires no special software or additional devices, increasing efficiency during installation and maintenance. The device is compact and easy to handle, making it suitable for mobile applications.
Note: Batteries are not included in the delivery scope.
Applications
The LanMaster 35 is used in IT infrastructure installation and maintenance, particularly for testing network cables on-site. It is suitable for technicians working in network technology, building automation, or telecommunications. The integrated hub activation enables testing of connections via a hub or switch, simplifying the diagnosis of network problems. The tone generator function supports cable identification in a cable distribution, especially in complex installations with many parallel lines.
Functions and Equipment in Detail
The device measures the length of Ethernet cables, which is helpful during installation to ensure the maximum allowable length of 100 meters is not exceeded. It detects short circuits and breaks, which can cause connection issues. Detection of link speed (10/100/1000 BaseTX) and duplex mode (half- or full-duplex) enables precise analysis of the network connection. PoE detection according to IEEE 802.3af and Cisco Inline Power is particularly useful to ensure that power supply over the network cable is functioning correctly. The integrated hub activation temporarily activates the hub to test the connection without requiring additional devices.
Technology Explained Simply
The LanMaster 35 analyzes electrical signals in the Ethernet cable to determine cable length and locate faults such as short circuits or breaks. PoE detection is based on analyzing voltage and current flow in the cable to determine whether power is being supplied over the network cable. Link speed detection is achieved by analyzing the signal transmission rate, with the device distinguishing between 10, 100, and 1000 Mbit/s. The duplex mode is also detected to verify whether the connection is operating in half- or full-duplex mode. The tone generator produces an acoustic signal that is transmitted over the cable and can be received using a separate tone receiver.
Compatibility and Accessories
The device is compatible with standard Ethernet connections in the 10/100/1000 BaseTX range. It supports PoE according to IEEE 802.3af and Cisco Inline Power. The tone receiver is required to receive the acoustic signal from the built-in tone generator, which is helpful for cable identification in a cable distribution. Using the tone receiver requires no additional devices or software, as the function is directly integrated into the LanMaster 35.
Mounting and Installation
The LanMaster 35 is directly connected to the Ethernet cable without additional mounting or installation. Testing is performed by simply connecting the device to the connection to be tested. Operation is via an integrated user interface that displays the test results. Device functions such as cable length measurement, fault detection, and PoE testing are automatically executed as soon as the device is connected. The integrated hub activation is also controlled via the device, without requiring additional settings.
Advantages in Operation
The LanMaster 35 provides fast and reliable diagnosis of network connections. Integrated functions such as cable length measurement, fault detection, and PoE testing reduce troubleshooting time. The combination of tone generator and optional tone receiver use enables precise cable identification in complex installations. Operation is simple and requires no special software or additional devices, increasing efficiency during installation and maintenance. The device is compact and easy to handle, making it suitable for mobile applications.
Note: Batteries are not included in the delivery scope.
