Siglent SDM3045X

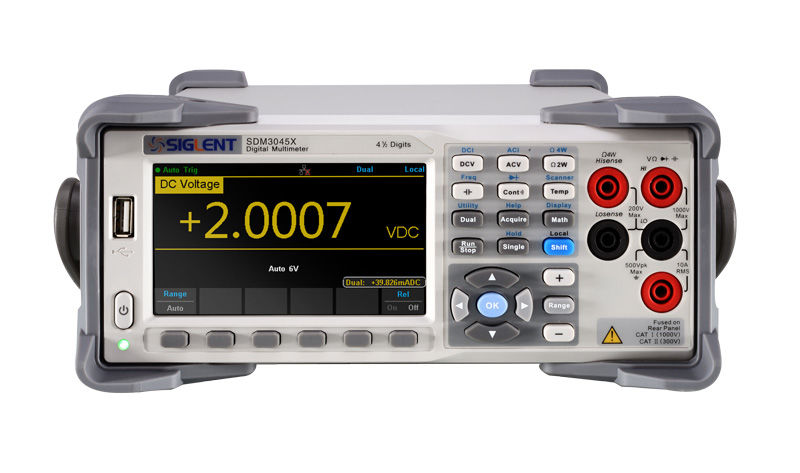

Digital Multimeter / The SDM3045X is a high quality digital multimeter with a memory depth of 10k.

The Siglent SDM3055 has a memory depth of 10k, a measurement speed of up to 150 Sa/s and 1 GB Nand Flash. Siglent's SDM3055 can be used to perform true RMS measurements of AC voltage and AC current. With its intuitive menu navigation and convenience function, it makes it easier for the user to carry out their measurement tasks and helps to achieve more precise measurement results. The display of the SDM3055 with 10,9 cm ( 4,3 inch ) 480*272 pixels gives a good overview of all functions and offers a resolution of 5 1/2 digits (240,000 counts).
FeaturesReal 4½-digit (66,000 counts) measurement resolution Up to 150 rdgs/s Measuring speed True RMS AC voltage and AC current measurement 1GB NAND flash size, mass storage configuration files and data files Built-in cold terminal compensation for thermocouple With simple, convenient and flexible PC software: EasyDDM Standard interface: USB device, USB host, LAN User-friendly design 4.3? TFT LCD, 480*272 Supports dual display (Chinese and English menu) Built-in front-accessible help system File management (support USB driver and local storage) USB and LAN remote interfaces support the common SCPI command set Compatible with other common DMMs on the market Not compatible with the SC1016 Scanner Card Option Technical data Model comparison
SDM3045X
SDM3055
SDM3055-SC
SDM3065X
SDM3065X-SC max. resolution 4½ digits 5½ digits 5½ digits 6½ digits 6½ digits max. display value 60.0 00 240,000 240,000 2,200,000 2,200,000 max. sampling rate 150 Sa/s 150 Sa/s 150 Sa/s max. 10000 Sa/s max. 10000 Sa/s Memory depth 10k readings from historical records 10k readings from historical records 10k readings from historical Records 10k readings of historical records 10k readings of historical records Interfaces USB Client, USB Host, LAN USB Client, USB Host, LAN, GPIB(optional) USB Client, USB Host, LAN, GPIB(optional) USB Client, USB Host, LAN , GPIB(optional) USB Client, USB Host, LAN, GPIB(optional) DC voltage measuring range 200mV-1000V 200mV-1000V 200mV-1000V 200mV-1000V 200mV-1000V AC voltage measuring range 200mV-750V 200mV-750V 200mV -750V 200mV- 750V 200mV-750V DC current measuring range 200µA-10A 200µA-10A 200µA-10A 200µA-10A 200µA-10A Scanner Card No No Yes No Yes
