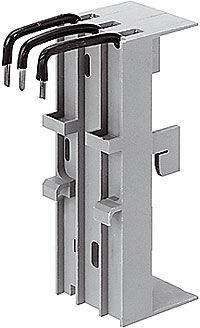

Siemens 8US12114TM00 Bar center distance , device adapter b = 72mm 480-690V content_copy

Busbar system, bar center distance 60mm, device adapter, width: 72mm, bar thickness: 5.10mm+TT profile for fitting with SIRIUS circuit breaker, size S3 (100A), length 182mm, application area 480-690V, 8US busbar system for installing protective devices such as fuse switch disconnectors and circuit breakers - safe, space-saving, clear. The use of Siemens 8US busbar systems offers a wide range of options for installing rail-adaptable connection, switching and installation devices. The space-saving modular design and quick-assembly contacting ensure economical electrical equipment in today's distribution board construction. Assembly takes place on longitudinal beams, the bar spacing is 60 mm. The Siemens 8US busbar systems are characterized above all by: 1. Mechanical fastening and electrical contacting in one operation. 2. Worldwide approval and therefore worldwide application possibilities in mechanical and plant engineering. 3. Easy replacement of individual devices or entire combinations. 4. Installation time saved and costs reduced thanks to fully assembled consumer branches. 5. High operational reliability thanks to finger-safe cover of the adapters and device carriers. 6. Wide range of usable busbars for easy adaptation to currents up to 1,600 A.
Type: 8US1211-4TM00
