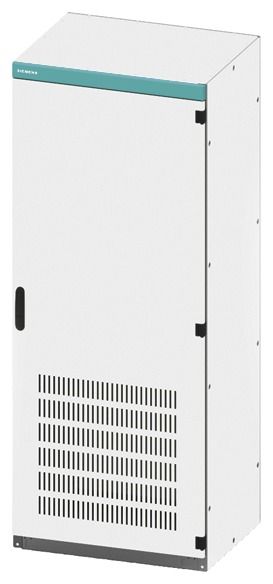

Siemens 8MF18053VS4 empty control cabinet housing

SIVACON, control cabinet empty housing, according to IEC 62208, with ventilation openings, IP20, H: 1800 mm, W: 1000 mm, D: 500 mm The SIVACON 8MF1 system cabinet - as diverse as your requirements. The modular SIVACON 8MF1 system kit enables customized solutions for almost all industrial sectors and applications. Completely pre-assembled, adapted to requirements or developed completely individually, the system cabinets support individual added value in control cabinet construction. The basis of the SIVACON 8MF1 system kit is the framework, available in 90 sizes and combinable with more than 2,000 individual elements. Complete cabinets are available in three versions for standard applications: closed, ventilated and with a viewing window. The SIVACON 8MF1 system cabinets are tested in accordance with IEC 61439 for corrosion resistance, heat resistance, resistance to unusual heat and fire, lifting, impact testing, protection class of enclosures, continuity of the protective conductor connection, proof of power loss dissipation capacity. The SIMARIS therm software can be used to calculate the correct dimensioning of the heat dissipation of control cabinets - simply by entering the respective ambient temperature and selecting the corresponding devices in the system cabinet. The Siemens SIVACON 8MF1 system cabinets are characterized above all by: 1. The SIVACON 8MF1 system cabinets are screwed and characterized by high stability. 2. Electrolytically galvanized and powder-coated housings ensure greater resistance to environmental influences, such as moisture. 3. Earthquake-proof versions as well as electromagnetically compatible empty control cabinet housings are also available. 4. If required, the SIVACON 8MF system cabinets are available in many special and functional colors, and if required also in multiple colors - with a slight increase in delivery time.
Type: 8MF1805-3VS4
