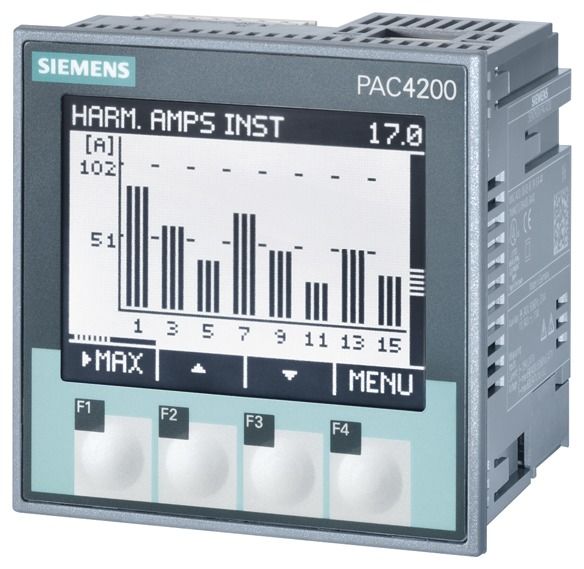

Siemens 7KM42120BA003AA0 SENTRON PAC4200 LCD 96x96mm, 7KM4212-0BA00 content_copy

SENTRON, measuring device, 7KM PAC4200, LCD, LL: 690 V, LN: 400 V, 5 A, 3-phase, Modbus TCP, optional Modbus RTU / PROFINET / PROFIBUS / DI/DO, apparent / active / reactive energy / cos phi, harmonics: 2nd - 64th, THD, class 0.2 acc. to IEC61557-12 or class 0.2S acc. to IEC62053-22, wide-voltage power supply, AC/DC, screw connection Measuring device for power quality measurement SENTRON 7KM PAC4200 for the precise recording of all important electrical measured variables in power distributions for the assessment of the system status and the power quality in the process and manufacturing industry, but also for critical infrastructures such as hospitals and data centers. The network analysis measuring device 7KM PAC4200 records all important electrical parameters for the Feed-in, electrical outlets or individual consumers. It not only provides comprehensive information about your electrical installation and energy distribution but also important measured values for assessing the system status and network quality. For further processing of the measured data, the devices can be very easily integrated into higher-level automation and energy management systems via Modbus TCP, PROFINET, PROFIBUS and Modbus RTU thanks to their diverse communication options. Additional modules can be used to implement additional digital inputs and outputs, analog inputs, N-conductor direct measurement, residual current measurement or RS485 gateway functionality.The 7KM PAC measuring devices are available in different versions to suit the scope of your requirements.SENTRON PAC - specialists in measured value acquisition.
Type: 7KM4212-0BA00-3AA0
