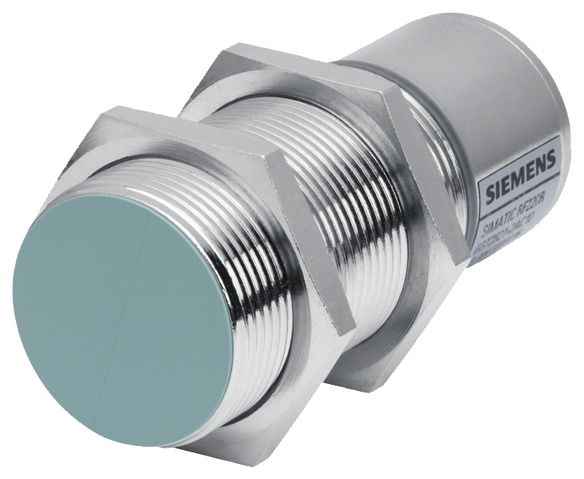

Siemens 6GT28212BC32 Reader RF220R IO-LINK V1.1

SIMATIC RF200 Reader RF220R IO-Link interface V1.1, IP67, -25 to +70°C, M30x 83mm, with integrated antenna 32 bytes IO, 230 kBit/s. SIMATIC RFReader RF220R IO-LinkCompact HF reader, particularly well suited for use in small assembly lines that require a somewhat greater range. Entry level for applications in the lower to medium performance range. Typical areas of application: assembly and handling technology, assembly lines (identification of workpiece carriers), especially small assembly lines, production logistics (material flow control, identification of containers and other receptacles), intralogistics, parts identification (transponder is attached to products or pallets), conveyor technology (e.g. electric overhead conveyors).Small compact reader in M18 housing for special installation situations. Robust thanks to welded housing with top design for enhanced usability. Standardized IO-Link interface for connection to IO-Link master modules. Simplification of engineering, commissioning, diagnostics and maintenance through seamless integration in TIA. Consistent bus connection via communication modules to the control level via PROFIBUS and PROFINET. Diagnostics through integrated error message. Open standard ISO 15693, standardized communication interfaces. Connection options to different bus systems from different manufacturers via communication modules. Particularly simple implementation without any programming effort via IO-Link.
Type: 6GT2821-2BC32
