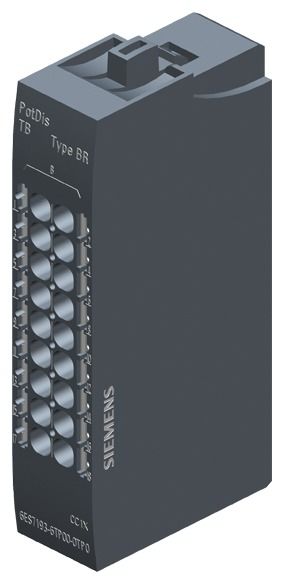

Siemens 6ES7193-6TP00-0TP0 SIMATIC ET 200SP, potential distribution module PotDis-TB content_copy

SIMATIC ET 200SP, potential distribution module, PotDis terminal block, PotDis-TB-BR-W, 18 x internally bridged push-in terminals, no connection to P1, P2, AUX, packaging quantity: 1 piece, SIMATIC ET 200SP is a modular, scalable and highly flexible, decentralized I/O system. Due to its small footprint, it is particularly designed for installation in small control boxes close to the machine. The modules can either be plugged directly into an ET 200SP CPU or connected to a central controller via PROFINET or PROFIBUS. SIMATIC ET 200SP can be expanded with up to 64 I/O modules that can be plugged in in any combination. The system offers a very extensive range of modules. Many modules are also available in different versions, which significantly improves scalability in terms of functionality and price. In addition to modules with standard functionality (ST), there are also modules with an extended range of functions and diagnostics (HF High Feature / HS High Speed). Modules with basic functionality (BA) are available for price-sensitive applications. The advantage of the ET 200SP system lies in its ease of use, for example through the free choice of PROFINET connection technology via the bus adapter, tool-free wiring using push-in technology, improved accessibility of the wiring through the new arrangement of the spring openers next to the associated conductor opening and the channel-specific diagnostic functions. The availability and productivity of the machine are ensured by the option of changing modules and terminal boxes during operation, known as hot swapping. The scalable and cost-optimized configuration of an ET 200SP station is guaranteed by the comprehensive range of signal modules. In addition to digital and analog input and output modules, fail-safe variants are also available for applications up to SIL 3 / PLe. This also applies to the integrated motor starters, which are suitable for motors up to 5.5 kW. Energy meters for measuring and analyzing energy consumption, IO-Link Master (V1.1.) and many other communication and technology modules enable the system to adapt to any automation task. Using the potential distribution modules, which can be combined with the corresponding BaseUnits as desired, space in the control cabinet can be saved by eliminating terminal blocks and clarity can also be increased.
