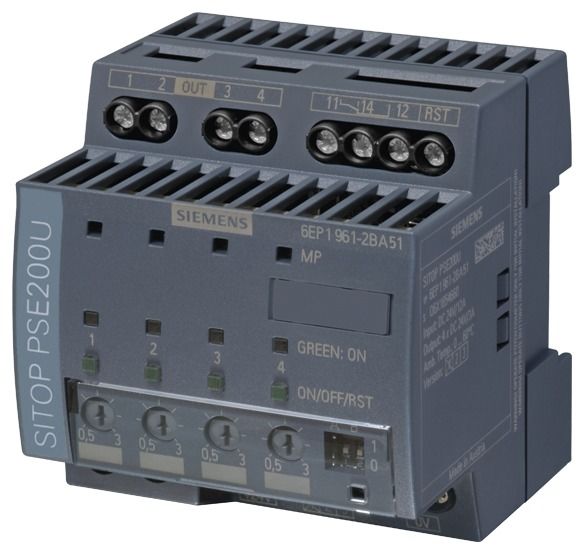

Siemens 6EP19612BA51 selectivity module SITOP PSE200U DC 24 V/4x0.5...3 A content_copy

SITOP PSE200U 3 A NEC CLASS 2 selectivity module 4-channel Input: DC 24 V/12 A Output: 24 V/4x 3A NEC class 2 Threshold adjustable 0.5-3 A with collective signaling contact The SITOP PSE200U selectivity module is the optimal addition to all 24 V power supplies to divide the load current between several current branches and monitor it. Overload and short circuits in one or more branches are reliably detected. The electronics allow short-term current peaks, e.g. due to high inrush current, and switch branches with longer overloads off. This is ensured even on high-impedance lines and in the event of creeping short circuits. The intact branches continue to be supplied with 24 V without interruption or feedback, thus minimizing system downtimes. The faulty branch is signaled via LEDs on the device and via a common signaling contact. The outputs meet the requirements of NEC Class 2. No matter what industry, no matter what requirement - Siemens offers reliable and efficient power supplies for every system.
Type: 6EP1961-2BA51
