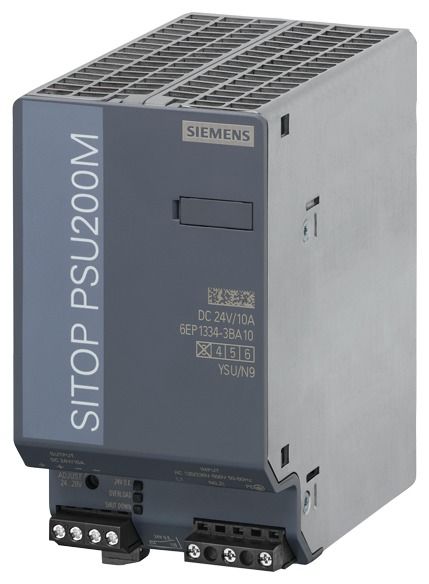

Siemens 6EP13343BA108AB0 6EP1334-3BA10-8AB0 PSU200M, PLUS 10 POWER SUPPL. 120-230 / 230-500VAC

SITOP PSU200M plus 10 A Regulated power supply Input: AC 120-230/230-500 V Output: DC 24 V/10 A Version with protective coating The 1- and 2-phase SITOP modular are technology power supplies for sophisticated solutions and offer maximum functionality for use in complex systems and machines. The ultra-wide range input enables connection to 1-phase supply networks or directly between the outer conductors of three-phase networks (2-phase) and ensures high safety even with large voltage fluctuations. The power boost briefly supplies up to three times the rated current. And in the event of an overload, you can choose between constant current with automatic restart or latching shutdown. The high efficiency keeps energy consumption and heat development in the control cabinet low and the compact metal housing also saves space. The version with the protective coating has improved resistance to extreme atmospheric stress such as condensation, dust and ESD stress, etc. To further increase the 24 V availability, the power supplies can be combined with buffer, DC UPS, redundancy and selectivity modules. No matter what industry, no matter what requirement - Siemens offers reliable and efficient power supplies for every system.
Type: 6EP1334-3BA10-8AB0
