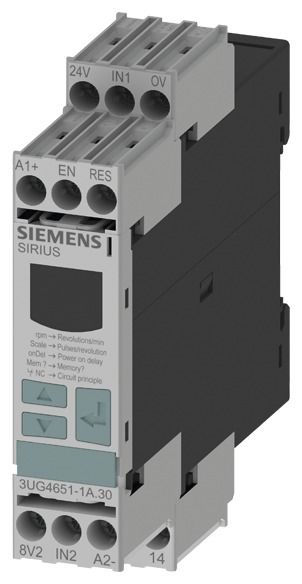

Siemens 3UG46511AW30 digital control relay, 3UG4651-1AW30 speed content_copy

Digital monitoring relay Speed monitoring from 0.1 to 2200 rpm Overshoot and undershoot AC/DC 24 to 240 V DC and AC 50 to 60 Hz Start-up delay 1 to 900 s Tripping delay 0.1 to 99.9 s Hysteresis 0.1 to 99 rpm 1 changeover contact with or without error memory Screw connection Successor product for 3UG3051 Digitally adjustable speed monitoring relay SIRIUS 3UG4 for monitoring speeds for overshoot and undershoot, e.g. in the event of slip or a belt drive break, also suitable for slowly rotating motors. Worldwide use thanks to wide voltage supply and international certificates. Fast commissioning possible thanks to menu-guided parameterization and actual value display for limit value determination. The device has a permanent display of the actual value or type of error. 2- or 3-wire sensors and sensors with mechanical switching or electronic output can be connected. Auxiliary voltage for the sensor is integrated. Devices can be changed without rewiring thanks to removable terminals. Reliable system diagnostics thanks to clear error messages on the display and switchable error memory. In addition to screw connection technology, the devices are also available with spring-loaded connections for a quick, maintenance-free and vibration-proof connection. They are optionally available with IO-Link. The comprehensive range of accessories, such as device identification plates, push-in tabs and cover caps, is standard for all relays. SIRIUS relays - a program for all cases.
Type: 3UG4651-1AW30
