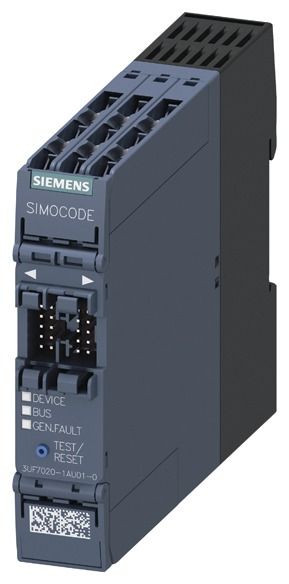

Siemens 3UF70201AU010 3UF7020-1AU01-0 basic unit, SIMOCODE pro S

Basic unit SIMOCODE pro S, PROFIBUS DP interface 1.5 Mbit/s, 4I/2O freely parameterizable, US: 110...240 V AC/DC, input for thermistor connection, monostable relay outputs, expandable with a multifunction module Motor management system SIMOCODE pro S for comprehensive protection, monitoring and control functions for asynchronous motors as well as detailed operating, service and diagnostic data for process control systems and controllers via the most common field bus systems. The smart and compact motor management system with PROFIBUS DP interface for direct, reversing, star-delta starters or control of a circuit breaker or soft starter works independently of the automation system. Its expandability with a multifunction module ensures a comprehensive set of inputs and outputs, precise earth fault detection via the 3UL23 residual current transformer and temperature detection. The system provides detailed operating, service and diagnostic data - always and everywhere. Worldwide approvals (e.g. IEC and UL/CSA) are also available for potentially explosive applications (ATEX or IEC Ex). Use with IE3/IE4 motors is supported. The SIMOCODE ES (TIA Portal) software is available for configuring, commissioning, operating and diagnosing SIMOCODE pro. With the SIMOCODE pro block library for SIMATIC PCS 7, SIMOCODE pro can be easily integrated into the SIMATIC PCS 7 process control system.The SIMOCODE pro S basic units are available with DC 24 V or AC/DC 110-240 V control supply voltage.At least one current measuring module and a suitable 3UF793 connecting cable are required for operation. These, an optional operator panel and a multifunction module are available separately.A step into the future with SIMOCODE pro.
Type: 3UF7020-1AU01-0
