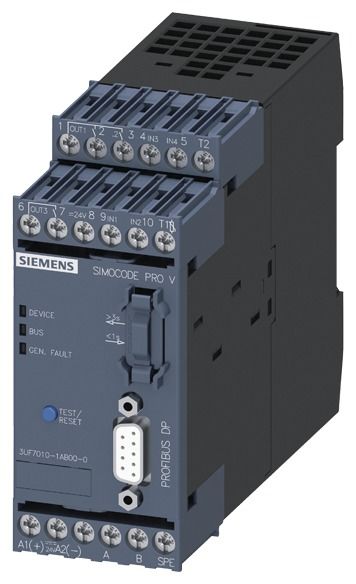

Siemens 3UF70101AB000 basic unit 2 SIMOCODE PRO V, 3UF7010-1AB00

Basic unit SIMOCODE pro V PB, PROFIBUS DP interface 12 Mbit/s, RS-485, 4I/3O freely parameterizable, US: 24 V DC, input for thermistor connection, monostable relay outputs, expandable with expansion modules Motor management system SIMOCODE pro V PB for comprehensive protection, monitoring, safety and control functions for asynchronous motors as well as detailed operating, service and diagnostic data for process control systems and controllers via the most common field bus systems. The variable and intelligent motor management system offers the option of implementing many control functions, e.g. for pole changeover switches or slide control, and works independently of the automation system. In conjunction with various expansion modules, it provides a comprehensive range of inputs and outputs, voltage and power detection, fail-safe shutdown of motors, precise earth fault detection via the 3UL23 residual current transformer, analog value monitoring and temperature detection. Depending on the version, a wide range of communication connections are possible, such as PROFIBUS, PROFINET, OPC UA, Modbus RTU or EtherNet/IP. The system provides detailed operating, service and diagnostic data - anytime, anywhere. Worldwide approvals (e.g. IEC and UL/CSA) are also available for potentially explosive applications (ATEX or IEC Ex). Use with IE3/IE4 motors is supported. The SIMOCODE ES (TIA Portal) software is available for configuring, commissioning, operating and diagnosing SIMOCODE pro. With the SIMOCODE pro block library for SIMATIC PCS 7, SIMOCODE pro can be easily integrated into the SIMATIC PCS 7 process control system. The SIMOCODE pro V basic units are available with 24 V DC or 110-240 V AC/DC control supply voltage. At least one current/voltage measuring module and a suitable 3UF793 connecting cable are required for operation. These, optional operator panels with and without display as well as various expansion modules are available separately. A step into the future with SIMOCODE pro.
Type: 3UF7010-1AB00-0
