Siemens 3TH42715KB4 3TH4271-5KB4 auxiliary contactor 71E, 7NO+1 screw connection with varistor DC24V

Your rating:
Average rating
product review for Siemens 3TH42715KB4 3TH4271-5KB4 auxiliary contactor 71E, 7NO+1 screw connection with varistor DC24V
( 4 / 5 ) 1 ratings

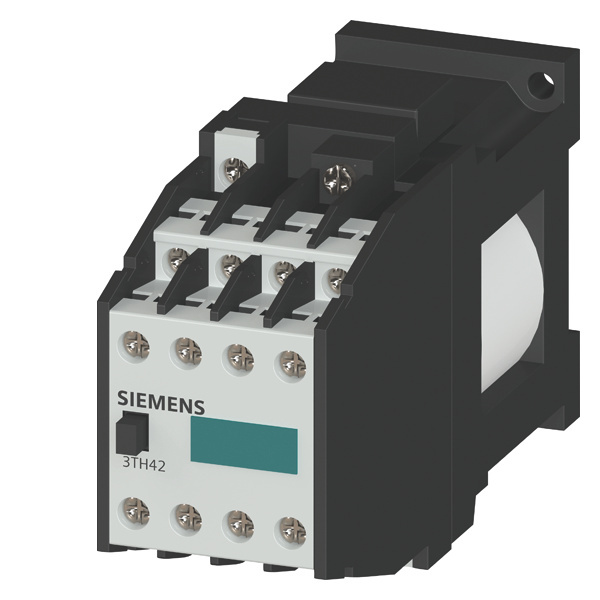

Siemens 3TH42715KB4
This image may differ from the desired article.
192,13 EUR
incl. 4,04 EUR copper surcharge
( 228,63 EUR incl. VAT )
≈ £160.81  |  ≈ $211.15
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Siemens 3TH42715KB4 3TH4271-5KB4 auxiliary contactor 71E, 7NO+1 screw connection with varistor DC24V
Lieske Part No.:298789
Mfg Part No: 3TH42715KB4
UPC/EAN: 4011209113008
Weight:0.675 kg
Type:3TH4271-5KB4
Graduated prices net
From piecesPrice per pieces
5183,67 EUR
10175,20 EUR
15166,74 EUR
20158,27 EUR

Product information for Siemens 3TH42715KB4:

The Siemens auxiliary contactor type 3TH4271-5KB4 is an industrial-grade switching device for controlling auxiliary current circuits in electrical installations. It serves to multiply output signals, enabling simultaneous switching of multiple control signals, and is specifically designed for use in control current circuits. The device features a DC magnetic system with integrated varistor and is designed for an operating voltage of 24 V DC. The contacts are configured as 7 normally closed (S) and 1 normally open (Ö), with the designation 71E referring to the DIN EN 50011 standard, which governs terminal markings and the reliability of connection technology. The screw terminal variant enables a secure and durable connection of the wiring.

Applications

The auxiliary contactor 3TH4271-5KB4 is intended for use in industrial control systems and automation systems, particularly in installations where simultaneous switching of multiple auxiliary circuits is required. It is commonly used in machine control systems, plant monitoring systems, and safety applications where high contact reliability and weather-resistant design are necessary. The devices are suitable for worldwide use and comply with international certifications such as IEC and UL/CSA.

Functions and Equipment in Detail

The device features forced contact guidance, which is particularly relevant for safety applications. This design ensures that contacts are either fully open or fully closed, which is critical for safety-critical functions. The integrated varistor protection safeguards the magnetic system against overvoltages caused by switching operations or network disturbances. The screw terminal variant provides a robust and reliable connection, designed for industrial use.

Technology Explained Simply

The DC magnetic system is operated by a 24 V DC supply voltage, which is common in many industrial control systems. The integrated varistor protection responds to sudden voltage spikes and diverts them to protect the device. The contact configuration with 7 normally closed and 1 normally open contact allows control of multiple loads or signals from a single control impulse. The DIN EN 50011 standard ensures that terminal markings are uniform and understandable, simplifying maintenance and servicing.

Compatibility and Accessories

The auxiliary contactor is available in various versions with 8 or 10 poles, with the 3TH4 series available in both AC and DC actuation. Accessories such as overvoltage limiters, time delay units, and coupling elements are available and can be used as needed depending on the application scenario. An appropriate overvoltage limiter, for example, is item 3TX74023R, designed for voltages of 24–48 V AC or 24–70 V DC.

Mounting and Installation

Mounting is typically done on standard DIN rails, with the screw terminal variant allowing direct connection of the wiring. The weather-resistant design of the device makes it suitable for use in various environmental conditions, including industrial halls or outdoor areas, provided the environmental conditions meet the specified standards.

Advantages in Operation

The high contact reliability and output multiplication enable efficient control of multiple circuits from a single signal. The integrated varistor protection increases the device’s service life and protects the entire control system from damage due to overvoltages. Compliance with standards and worldwide certification simplify use in international projects and reduce complexity during planning and maintenance.

General
Degree of protectionweatherproof
Operating voltage24 V DC
Magnetic systemDC
Contact arrangement7 S + 1 Ö
Connection systemScrew connection
Integrated protection functionVaristor (voltage-sensitive resistor)
NormDIN EN 50011
ApprovalsIEC, UL/CSA
Output multiplicationup to 10 auxiliary circuits
Positive mechanical interlockYes


Please note...
This article contains a copper surcharge of 4,04 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990

Questions & answers

What is the delivery time of Siemens 3TH42715KB4 3TH4271-5KB4 auxiliary contactor 71E, 7NO+1 screw connection with varistor DC24V?

The article Siemens 3TH42715KB4 3TH4271-5KB4 auxiliary contactor 71E, 7NO+1 screw connection with varistor DC24V is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siemens 3TH42715KB4 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Siemens 3TH42715KB4 3TH4271-5KB4 auxiliary contactor 71E, 7NO+1 screw connection with varistor DC24V always at the best possible price. We can give you a discount of 2% on Siemens 3TH42715KB4 3TH4271-5KB4 auxiliary contactor 71E, 7NO+1 screw connection with varistor DC24V if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Siemens 3TH42715KB4 3TH4271-5KB4 auxiliary contactor 71E, 7NO+1 screw connection with varistor DC24V we can offer you a price of 183,67 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Siemens 3TH42715KB4 3TH4271-5KB4 auxiliary contactor 71E, 7NO+1 screw connection with varistor DC24V

Siemens 3TX74023R overvoltage limiter RC element 24-48 V AC / 24-70 V DC Siemens LogoSiemens 3TX74023R overvoltage limiter RC element 24-48 V AC / 24-70 V DC Surge limiter RC element with cable spacer AC 24-48 V / DC 24-70 V for mounting on coil terminal for contactors size S0-S2

Lieske Part No.: 663744
Mfg Part No: 3TX74023R
Type: 3TX7402-3R
20,16 EUR
Siemens 3TX74023R plus VAT
≈ £16.87  |  ≈ $22.16
Made to order · Delivery time approx. 20 workdaysinfo_outline
