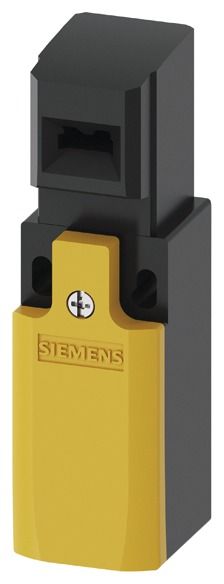

Siemens 3SE52320QV40 3SE5232-0QV40 safety limit switch

Safety position switch with separate actuator Plastic housing, 31 mm Device connection 1x (M20x 1.5) Slow-action contacts 2 NC/1 NO, 5 approach directions, the matching separate actuator 3SE5000-0AV0. must be ordered separately Mechanical safety switch SIRIUS 3SE5 for monitoring the position of movable protective devices, e.g. doors, covers or protective grilles. The drive heads in screwless assembly can be rotated by 4x90 degrees. 5 approach directions of the actuator are possible, one of which is at the front. The switching elements ensure very high contact reliability and can only be switched with a separately coded actuator, which ensures increased protection against manipulation. LEDs show the current status of the device. Switching points and fastening according to EN 50047 and EN 50041. The devices are approved worldwide (IEC, UL). With the appropriate switch configuration, the highest safety requirements according to PL e or SIL 3 can be met. The integrated ASIsafe electronics require a low power consumption. Various housing sizes, with different switching elements, in plastic or metal are available. A comprehensive range of 3D coded actuators is available. Some variants can be ordered optionally with LED status display, M12 connector or locking device. The 3SF1 series with direct connection to the AS-Interface bus system rounds off the portfolio. The actuator is not included in the scope of delivery of the safety switches and must be ordered separately. Connectors and other mounting/connection accessories are available as accessories. Safety is a SIRIUS business.
Type: 3SE5232-0QV40
