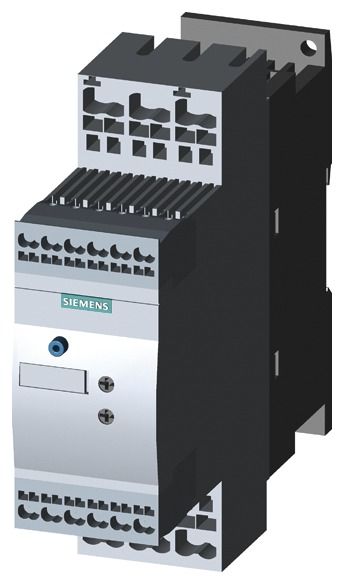

Siemens 3RW30282BB14 soft starter S0 38A 18.5 kW 400V, AC200-48
|
-8% 492,60 EUR 537,04 EUR |
|
|
( 586,19 EUR incl. VAT ) ≈ £421.17 | ≈ $559.59 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 448011 |
| Mfg Part No: | 3RW30282BB14 |
| UPC/EAN: | 4011209719545 |
| Weight: | 0.679 kg |
| Type: | 3RW3028-2BB14 |
Further Soft starters from SiemensFurther products in category Soft starters
All products of Siemens
Product information for Siemens 3RW30282BB14:
SIRIUS soft starter S0 38 A, 18.5 kW/400 V, 40 °C AC 200-480 V, AC/DC 110-230 V Spring-loaded terminals Soft starter SIRIUS 3RW30 for standard applications for the soft start of three-phase asynchronous motors. Stepless starting, reduction of current peaks, avoidance of mains voltage fluctuations during start-up, relief of the power supply network, reduction of the mechanical load in the drive, considerable space and wiring savings compared to star-delta starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass enables the very compact design and ensures less heating in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).The 3RW soft starters are available for networks up to 690 V in a wide power range with different control supply voltages and consistently with screw and spring-loaded connections. For 3RW30/40 there are additional variants with 24 V control supply voltage. Some of the 3RW40 up to size S3 and all 3RW44 also offer thermistor motor protection.With the optional connection module, the soft starters can be attached to the circuit breakers, even for the variants with spring-loaded connections.Simple, efficient, always up to date - the SIRIUS modular system.
Questions & answers
What is the delivery time of Siemens 3RW30282BB14 soft starter S0 38A 18.5 kW 400V, AC200-48?
The article Siemens 3RW30282BB14 soft starter S0 38A 18.5 kW 400V, AC200-48 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siemens 3RW30282BB14 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Siemens 3RW30282BB14 soft starter S0 38A 18.5 kW 400V, AC200-48 always at the best possible price. We can give you a discount of 2% on Siemens 3RW30282BB14 soft starter S0 38A 18.5 kW 400V, AC200-48 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
