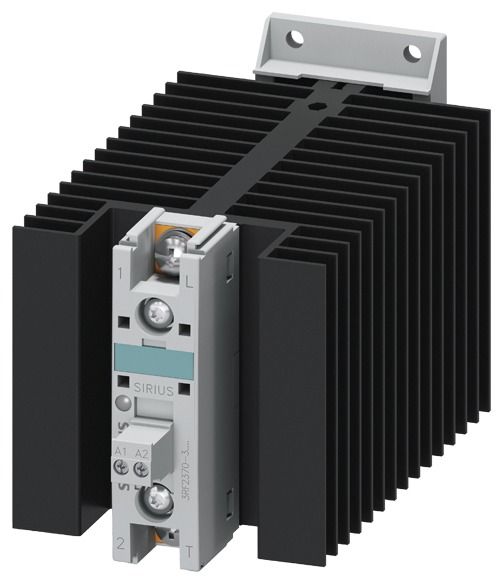

Siemens 3RF23703AA04 Solid state contactor 3RF2370-3AA04, 1phas content_copy

Solid-state contactor 1-phase 3RF2 AC 51 / 70 A / 40 °C 48-460 V / DC 24 V ring cable connection The dimensions and drilling pattern have changed since May 21, 2018, more information in Industry Online Support Solid-state contactor SIRIUS 3RF23 for switching resistive/inductive loads, e.g. radiators or valves in a filling plant. The devices switch wear-free and silently and are therefore ideal for noise-sensitive areas (offices, hospitals). They are extremely reliable even at high switching frequencies. Since the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the DIN rail. The solid-state contactors can also be expanded with the standardized 3RF29 function modules for a wide range of applications by simply clicking on them. The devices are approved worldwide (e.g. IEC and UL/CSA).The solid-state contactors are available as 1-phase or 3-phase devices. They are available for various power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-loaded or ring cable lug connections.In addition to the 3RF29 function modules, control plugs and terminal covers are also available as accessories.Simple, efficient, always up-to-date - the SIRIUS modular system.
