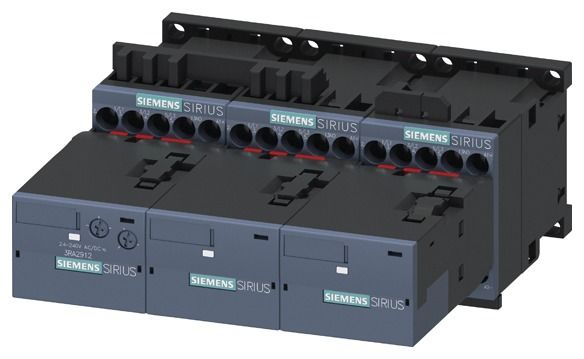

Siemens 3RA24168XF311BB4 3RA2416-1BB4-8XF31, star-delta combination
|
516,09 EUR 540,33 EUR |
|||||||||||
|
( 614,15 EUR incl. VAT ) ≈ £442.81 | ≈ $598.15 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 242247 | ||||||||||
| Mfg Part No: | 3RA24168XF311BB4 | ||||||||||
| UPC/EAN: | 4011209838246 | ||||||||||
| Weight: | 1.32 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Motor protection switch from SiemensFurther products in category Motor protection switch
All products of Siemens
Product information for Siemens 3RA24168XF311BB4:
Star-delta combination AC-3, 7.5 kW/400 V, DC 24 V 3-pole, size S00 screw connection electrical and mechanical interlock 3 S integrated Star-delta combination SIRIUS 3RA24 for gentle starting of three-phase asynchronous motors.The star-delta combination 3RA24 is a tested and factory-preassembled combination of three 3RT2 contactors that are already fully wired and mechanically and electrically interlocked. The function module with integrated control logic and time setting that is also included replaces the entire wiring in the control circuit. They are climate-resistant, approved worldwide (e.g. IEC and UL/CSA) and IE3/IE4 ready.The star-delta combinations 3RA24 are available with AC and DC operation in sizes S00 to S3. They are available with screw and spring-loaded connection technology for mounting on a standard rail or screw fastening. Variants for connection to IO-Link or AS-Interface are also available.The accessories for the 3RT2 contactors are standardized for all sizes and can also be used for the contactor combinations.The 3RA24 star-delta combinations replace the proven 3RA14 series.Simple, efficient, always up-to-date - the SIRIUS modular system.
Type: 3RA2416-8XF31-1BB4
Type: 3RA2416-8XF31-1BB4
Questions & answers
What is the delivery time of Siemens 3RA24168XF311BB4 3RA2416-1BB4-8XF31, star-delta combination?
The article Siemens 3RA24168XF311BB4 3RA2416-1BB4-8XF31, star-delta combination is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siemens 3RA24168XF311BB4 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Siemens 3RA24168XF311BB4 3RA2416-1BB4-8XF31, star-delta combination always at the best possible price. We can give you a discount of 2% on Siemens 3RA24168XF311BB4 3RA2416-1BB4-8XF31, star-delta combination if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Siemens 3RA24168XF311BB4 3RA2416-1BB4-8XF31, star-delta combination we can offer you a price of 504,48 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
