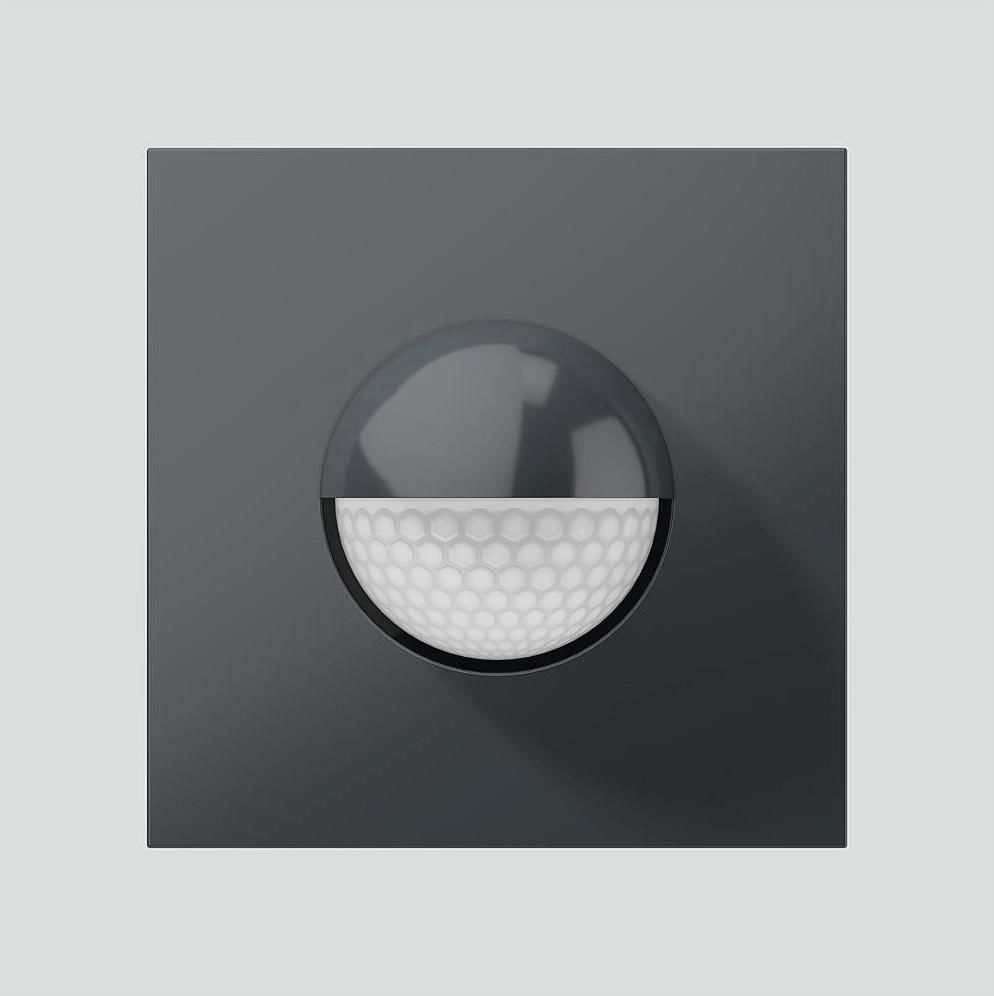

Siedle 210004904-00 BMM 611 0 AG Motion, module anthracite gray
|
409,86 EUR |
|
|
( 487,73 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 631297 |
| Mfg Part No: | 210004904-00 |
| UPC/EAN: | 4056138000302 |
| Weight: | 0 kg |
Product information for Siedle 210004904-00:
It records in a limitable range infrared radiation, such as that emitted z. B. of people. The system includes a highly sensitive infrared detector, a light-sensitive switch and the associated amplification circuit.
The horizontal detection range and the detection range can be changed.
• Max. Sensing distance depends on the installation height, installation position of the optical system, outside temperature and approach direction
• Detection width through-panel insert shortened
• Detection angle horizontal max , 180 °, variable by panel insert
• Switching outputs: Output 1: Twilight switch; Output 2: Motion Detection; Output 3: Series connection of output 1 and output 2
• Response threshold for twilight switch of about 5-300 Lux adjustable
• Twilight switch, in a combined operation dusk and movement, intrinsically safe light
Operating voltage: 12 V AC
Operating current max. 120 mA
Contact: normally 24 V AC / DC, 2 A
Switching time: 5 sec to 15 min..
IP 54
Ambient temperature: 20 ° C to +55 ° C
Construction height (mm): 25
Dimensions (mm) W x H x T: 99 x 99 x 51
Type: BMM 611-0 AG
Questions & answers
What is the delivery time of Siedle 210004904-00 BMM 611 0 AG Motion, module anthracite gray ?
The article Siedle 210004904-00 BMM 611 0 AG Motion, module anthracite gray is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Siedle 210004904-00 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Siedle 210004904-00 BMM 611 0 AG Motion, module anthracite gray always at the best possible price. We can give you a discount of 2% on Siedle 210004904-00 BMM 611 0 AG Motion, module anthracite gray if you choose payment in advance on ordering.
You can also send us a price proposal for your desired quantity of Siedle 210004904-00 BMM 611 0 AG Motion, module anthracite gray via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
