Shuttle X50V9U3 BLACK All-in-One Barebone i3-1315U
|
596,42 EUR |
|
|
( 709,74 EUR incl. VAT ) ≈ £499.20 | ≈ $655.47 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1045956 |
| Mfg Part No: | X50V9U3 BLACK |
| UPC/EAN: | 0887993006215 |
| Weight: | 5 kg |
| Type: | BARE |
Product information for Shuttle X50V9U3 BLACK:
Applications
The Shuttle X50V9U3 BLACK is particularly suitable for applications in vertical markets, such as retail, hospitality, industry, or public institutions. The arrangement of most connectors on the underside of the housing simplifies integration into existing systems and reduces the number of visible cables. The VESA mounting bracket with a mounting interface of 100 x 100 mm allows for flexible installation on walls or stands.
Functions and Equipment in Detail
The device is equipped with an integrated Intel Core i3-1315U processor, featuring 2 performance cores and 4 efficient cores. The maximum turbo frequency is 4.5 GHz for the performance cores and 3.3 GHz for the efficient cores. The processor includes a 10 MB cache and a TDP of 15 W, ensuring efficient power usage and low heat generation. The integrated Intel UHD Graphics unit supports output via an HDMI 2.0b port (up to 3840x2160@60Hz) and a VGA port, enabling flexible connection to various displays.
Technology Explained Simply
The Shuttle X50V9U3 BLACK offers two SO-DIMM memory slots for DDR5-SDRAM with a maximum total capacity of 64 GB and supported speeds up to 5200 MHz. The memory architecture is dual-channel, increasing data transfer rates. For storage media, two M.2-2280 slots (M-Key) are available, supporting both SATA and PCIe Gen 4.0 x4 NVMe SSDs. Additionally, an integrated 6,3 cm ( 2,5 inch ) SATA drive bay can accommodate both hard drives and SSDs. Power supply is provided by an external 90 W power adapter with an output voltage of 19 V, also supporting 12 V.
Compatibility and Accessories
The system supports Windows 10/11 (64-bit) as well as Linux (64-bit) operating systems. The integrated 2.0 megapixel FHD webcam and two built-in 2-W speakers enable simple communication. Network functions include Wi-Fi 5 (802.11ac) with two internal antennas and Bluetooth 4.2. A Gigabit LAN port (Intel I219) ensures a stable wired connection. Optionally, two serial COM ports (1x RS232, 1x RS232/422/485) can be added to the underside of the device via accessory PCP11.
Mounting and Installation

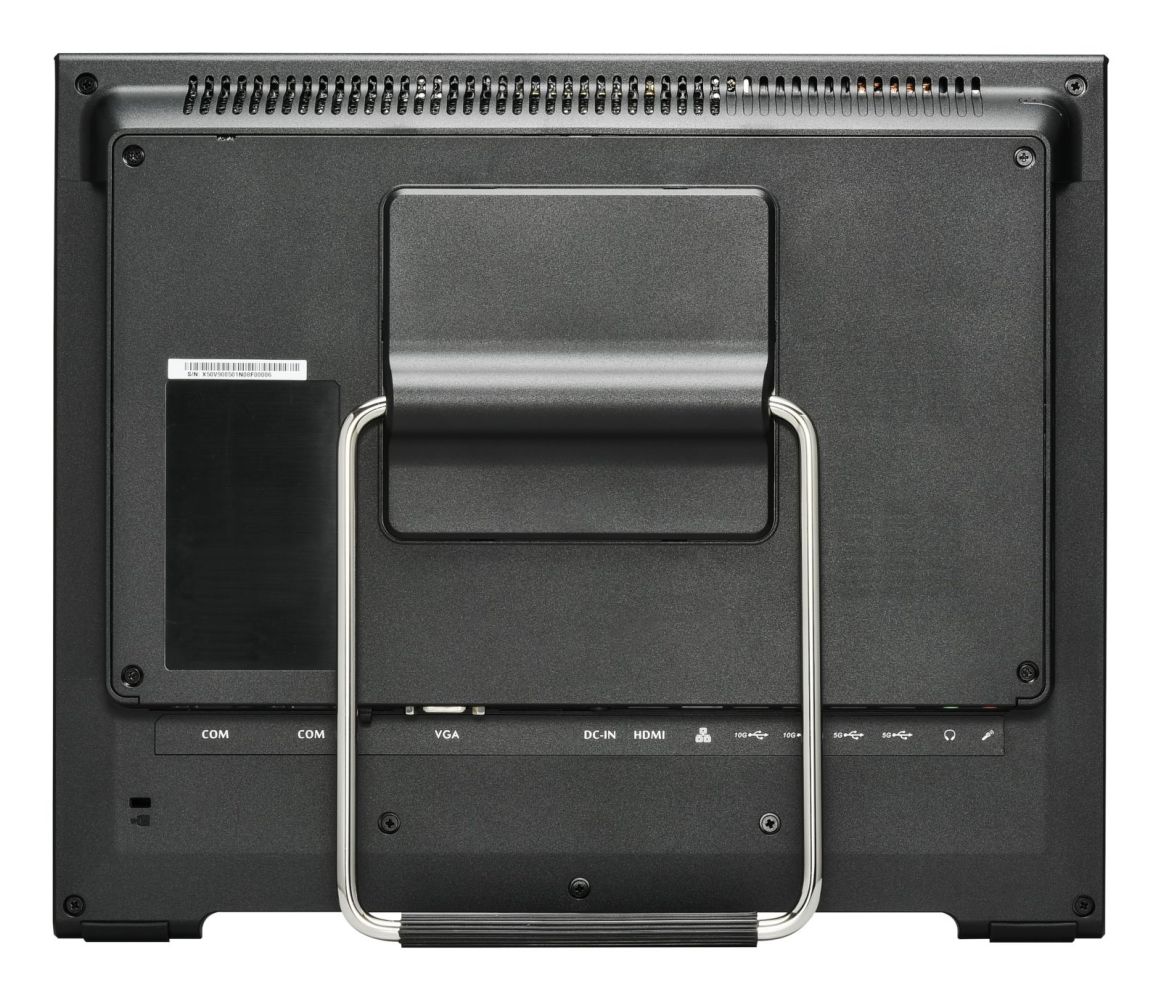

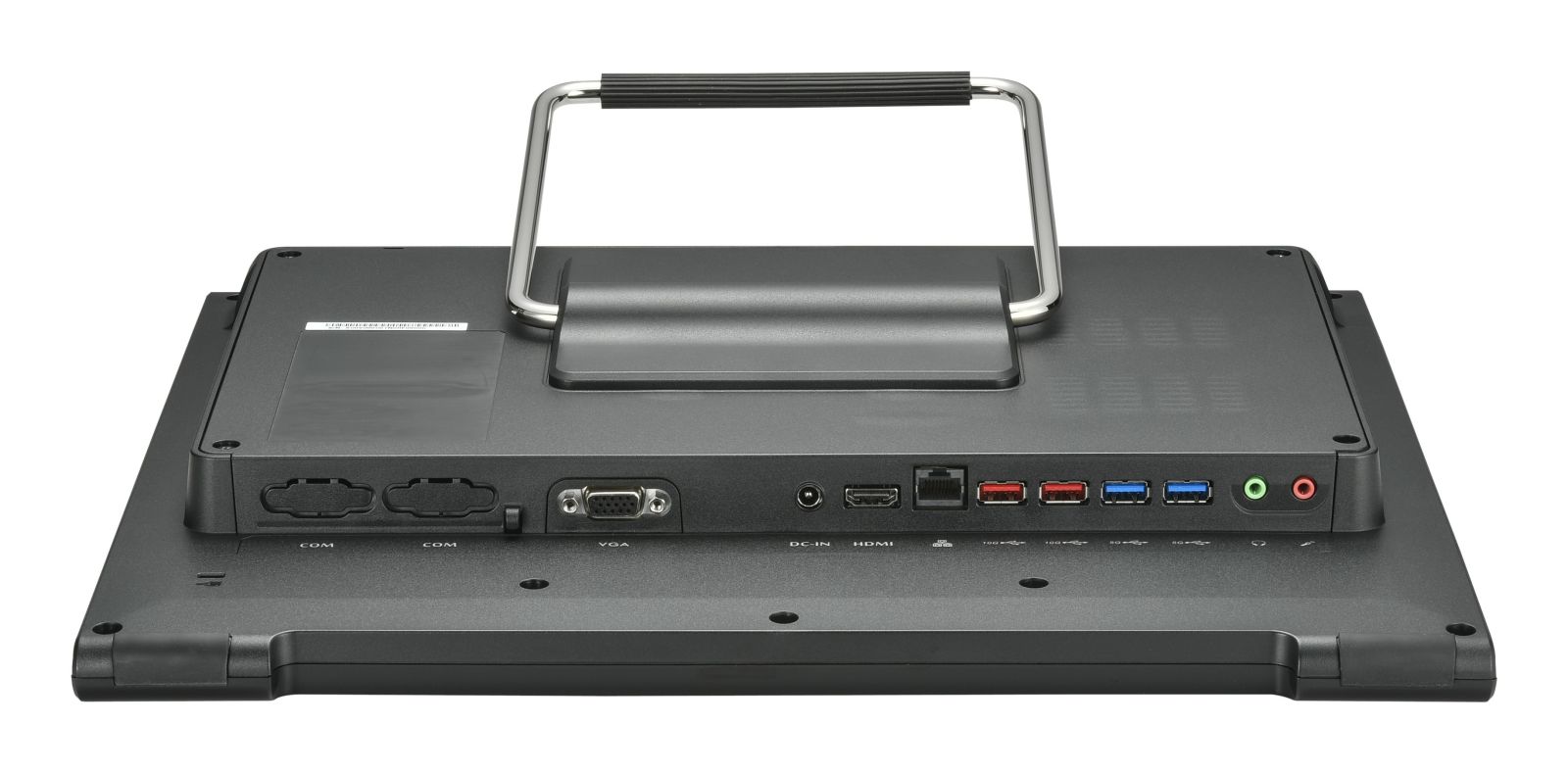

Installation is performed using the integrated connectors and the VESA mounting bracket. Most interfaces, including USB, audio, LAN, and power supply, are located on the underside of the housing, enabling clean cabling. The cable lock slot (Kensington) provides additional theft protection. The operating temperature range is between 0 and 40 °C, ensuring broad usability in various environments.
Advantages in Operation
The Shuttle X50V9U3 BLACK offers high reliability due to its fanless cooling concept and approval for 24/7 operation. The IP54 protection rating safeguards the front against dust and splashing water, extending the device's lifespan in demanding environments. Integrated features such as touchscreen, webcam, and speakers reduce the need for additional peripheral devices. Support for DDR5-SDRAM and NVMe SSDs ensures fast system response and short boot times.
| Audio | |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in speaker(s) | |
| Design | |
| Chassis type | All-in-One |
| Product colour | Black |
| Cooling type | Passive |
| LED indicators | HDD, Power |
| Cable lock slot type | Kensington |
| Panel mounting interface | 100 x 100 mm |
| Product type | All-in-One PC barebone |
| On/off switch | |
| Cable lock slot | |
| VESA mounting | |
| Display | |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1366 x 768 pixels |
| HD type | HD |
| Aspect ratio | 16:9 |
| Display brightness | 220 cd/m² |
| Touchscreen | |
| Graphics | |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card | |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 5200 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.1 V |
| ECC | |
| Non-ECC | |
| Network | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN controller model | Realtek RTL8821CE |
| LAN controller | Intel® I219 |
| Bluetooth version | 4.2 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Power cord included | |
| AC adapter included | |
| Quick start guide | |
| Drivers included | |
| Performance | |
| Motherboard chipset | Intel SoC |
| Number of processors supported | 1 |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | Realtek ALC888S |
| Built-in camera | |
| Trusted Platform Module (TPM) | |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | |
| DC-in jack | |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 90 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 4.74 A |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | Intel Core i3-13xxx |
| Processor model | i3-1315U |
| Processor cores | 6 |
| Processor threads | 8 |
| Processor boost frequency | 4.5 GHz |
| Performance cores | 2 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.5 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Processor cache | 10 MB |
| Built-in processor | |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Linux operating systems supported | |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| Storage drive interface | PCI Express, Serial ATA III |
| Number of storage drives supported | 3 |
| NVMe | |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Technical details | |
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI |
| Weight & dimensions | |
| Width | 391 mm |
| Depth | 42 mm |
| Height | 327 mm |
| Weight | 3.5 kg |
| Package weight | 4.2 kg |
