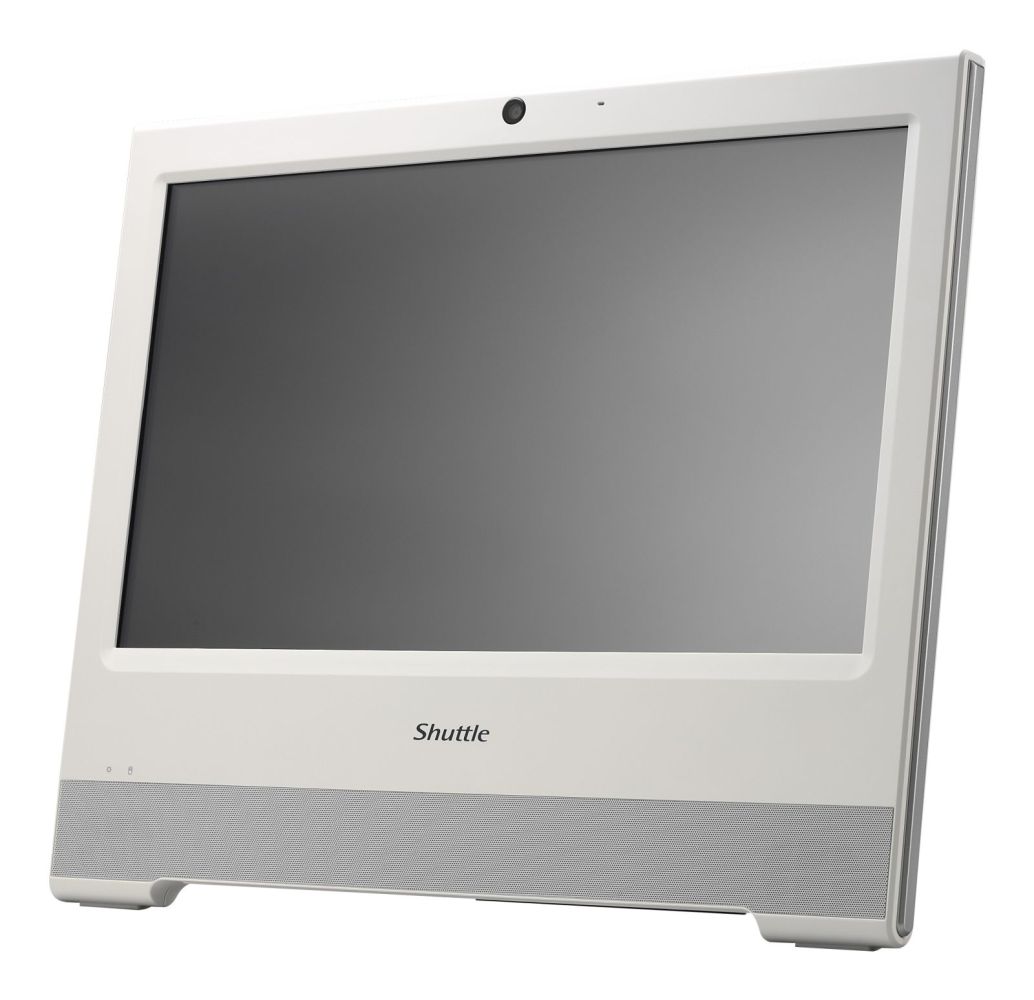

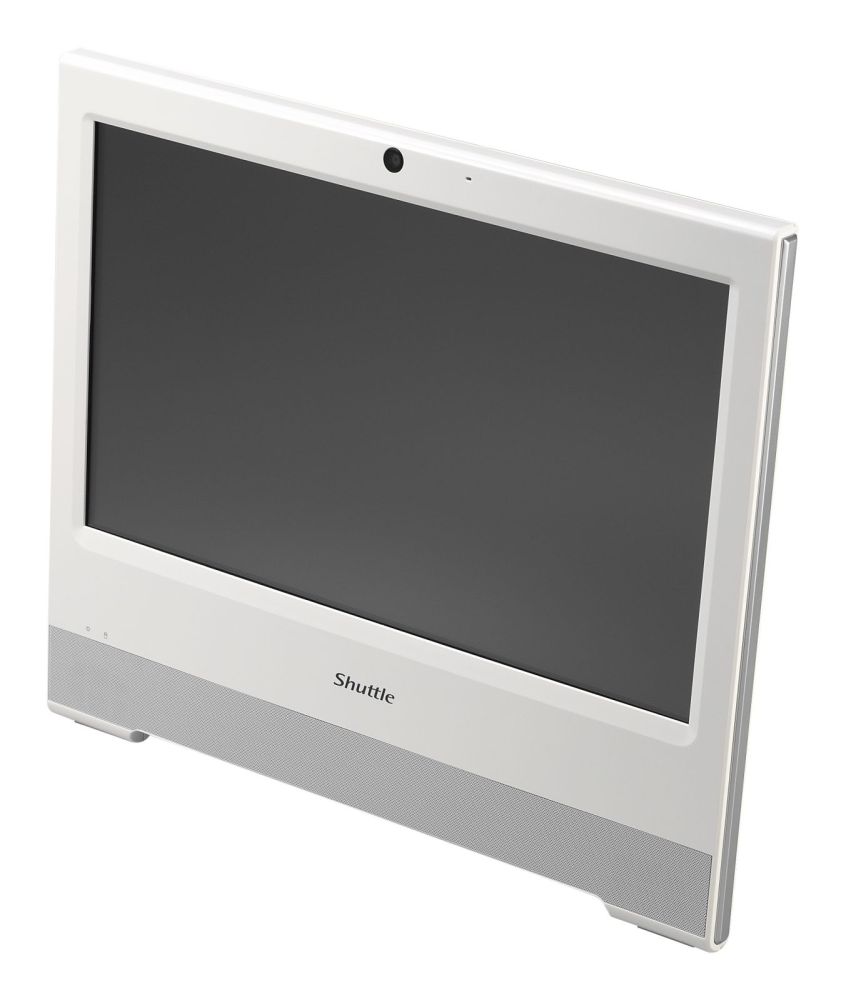

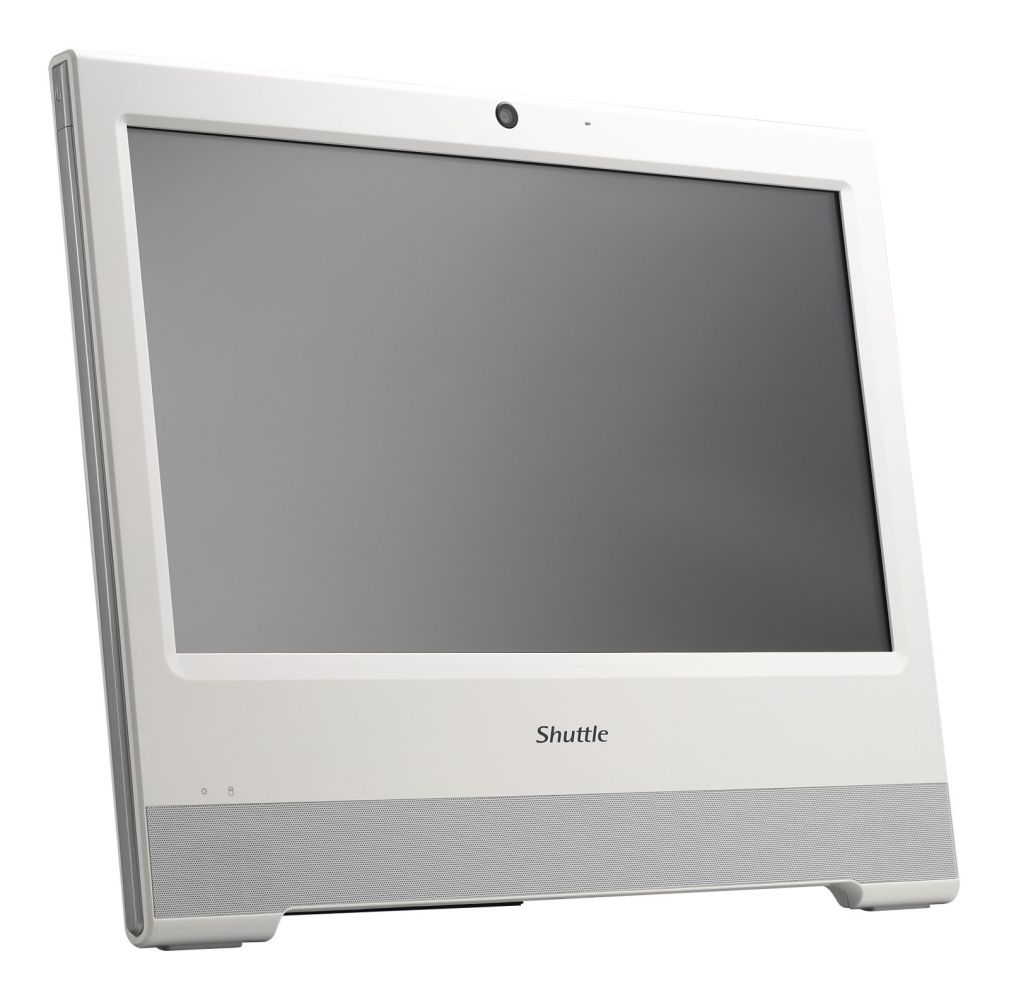

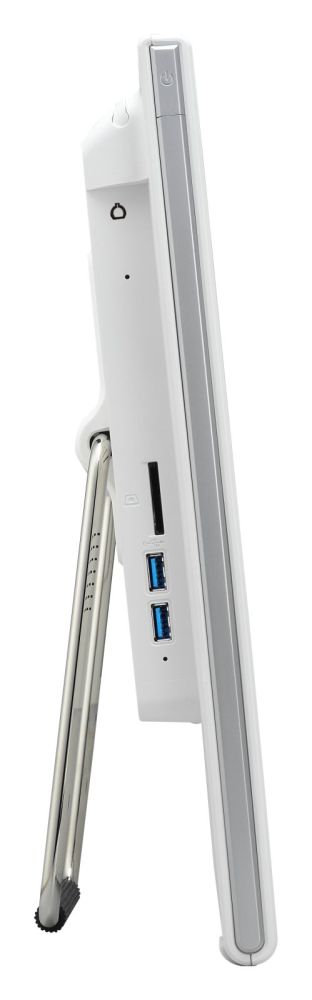

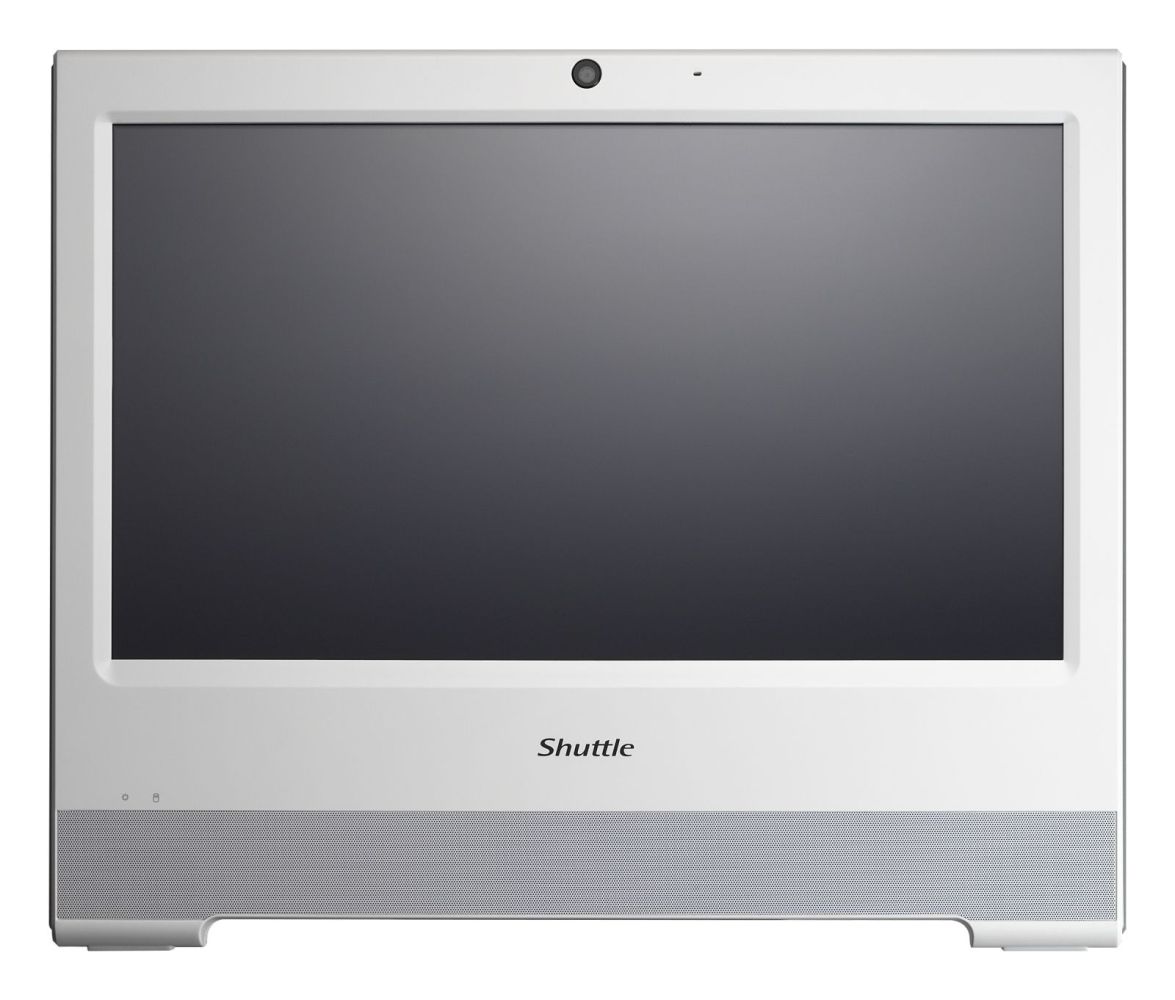

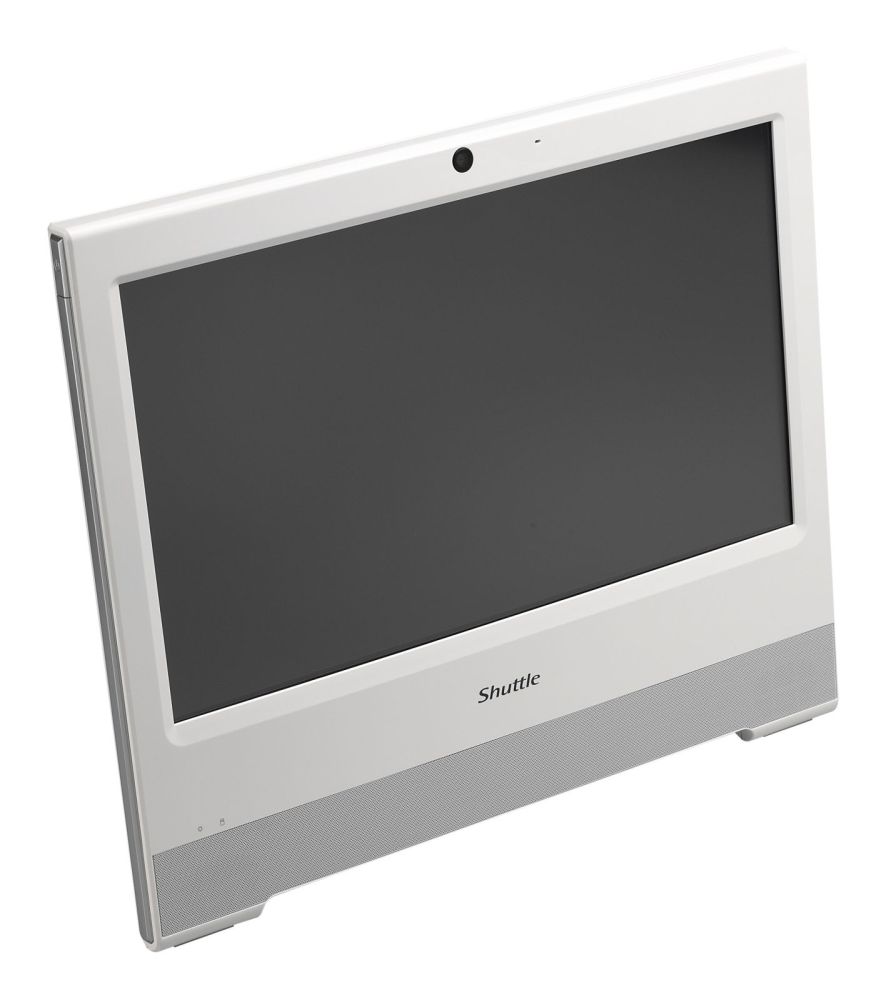

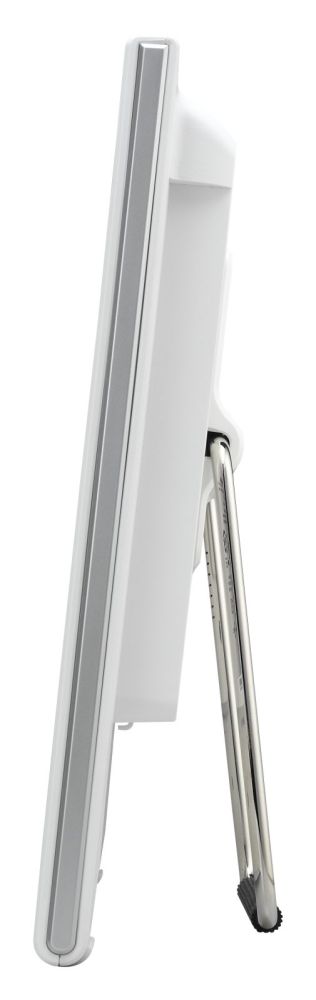

Shuttle Barebone AIO X50V7U3 39,6 cm ( 15,6 inch ) i38145U SO-DDR4 white without OS
|
583,52 EUR |
|
|
( 694,39 EUR incl. VAT ) ≈ £493.07 | ≈ $652.38 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1560770 |
| Mfg Part No: | X50V7U3 |
| UPC/EAN: | 0887993002170 |
| Weight: | 4.222 kg |
| Audio | |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in speaker(s) | |
| Certificates | |
| Certification | CE, FCC, BSMI |
| Design | |
| Product colour | White |
| Cable lock slot type | Kensington |
| Country of origin | China |
| Cable lock slot | |
| VESA mounting | |
| Display | |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1366 x 798 pixels |
| HD type | HD |
| Display brightness | 220 cd/m² |
| Panel type | LCD |
| Touchscreen | |
| Graphics | |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card | |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
| Memory | |
| Maximum internal memory | 64 GB |
| Memory slots type | SO-DIMM |
| Supported memory clock speeds | 2400 MHz |
| Network | |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth version | 4.0 |
| Wi-Fi | |
| Ethernet LAN | |
| Bluetooth | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Other features | |
| Graphics card family | Intel |
| AC adapter output current | 3.42 A |
| Storage drive interface | M.2, PCI Express |
| Power supply | 65 W |
| Power supply type | External AC adapter |
| Safety | CB, BSMI, ETL |
| Packaging content | |
| AC adapter included | |
| Quick start guide | |
| Drivers included | |
| Power cord included | |
| Performance | |
| Product type | All-in-One PC barebone |
| Motherboard chipset | Intel SoC |

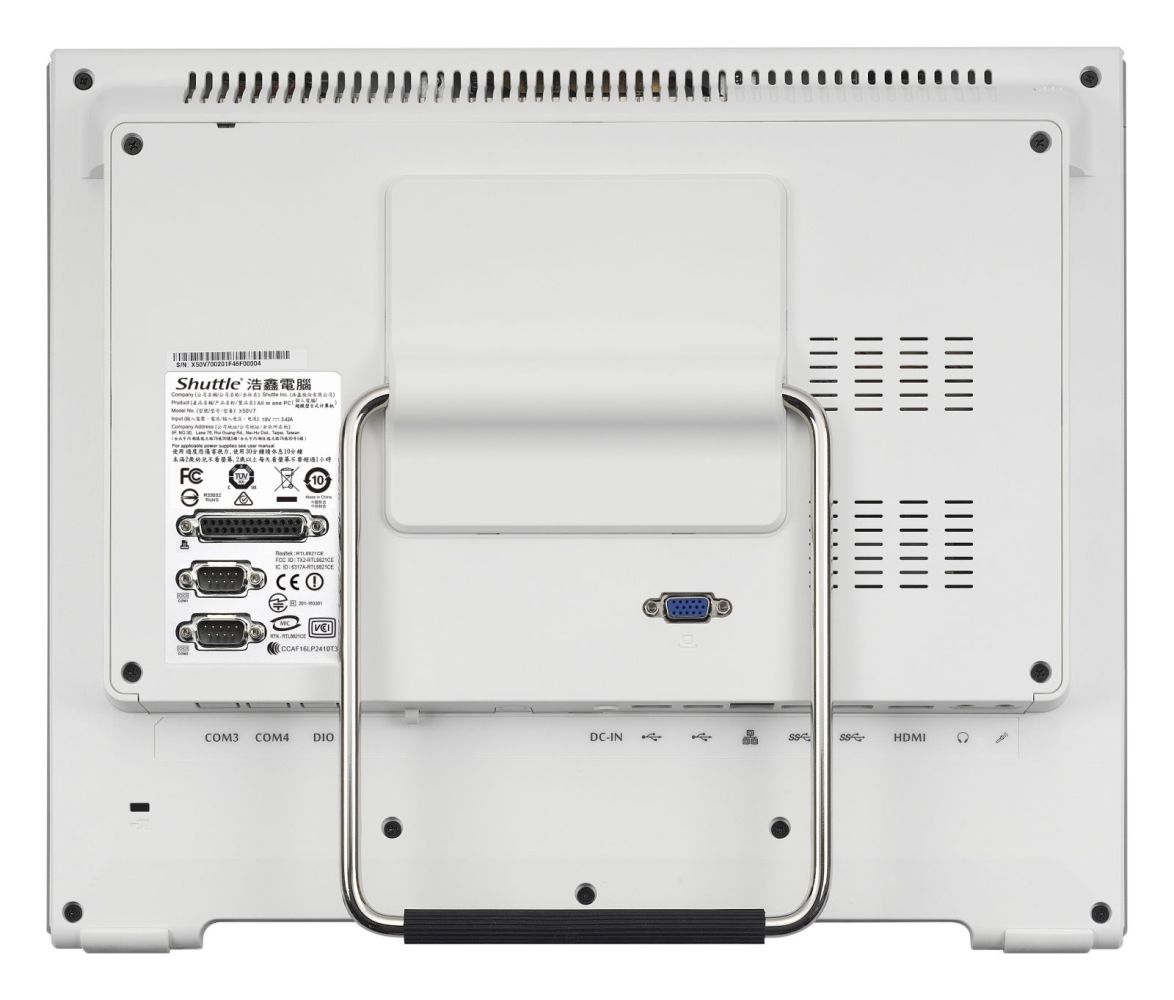

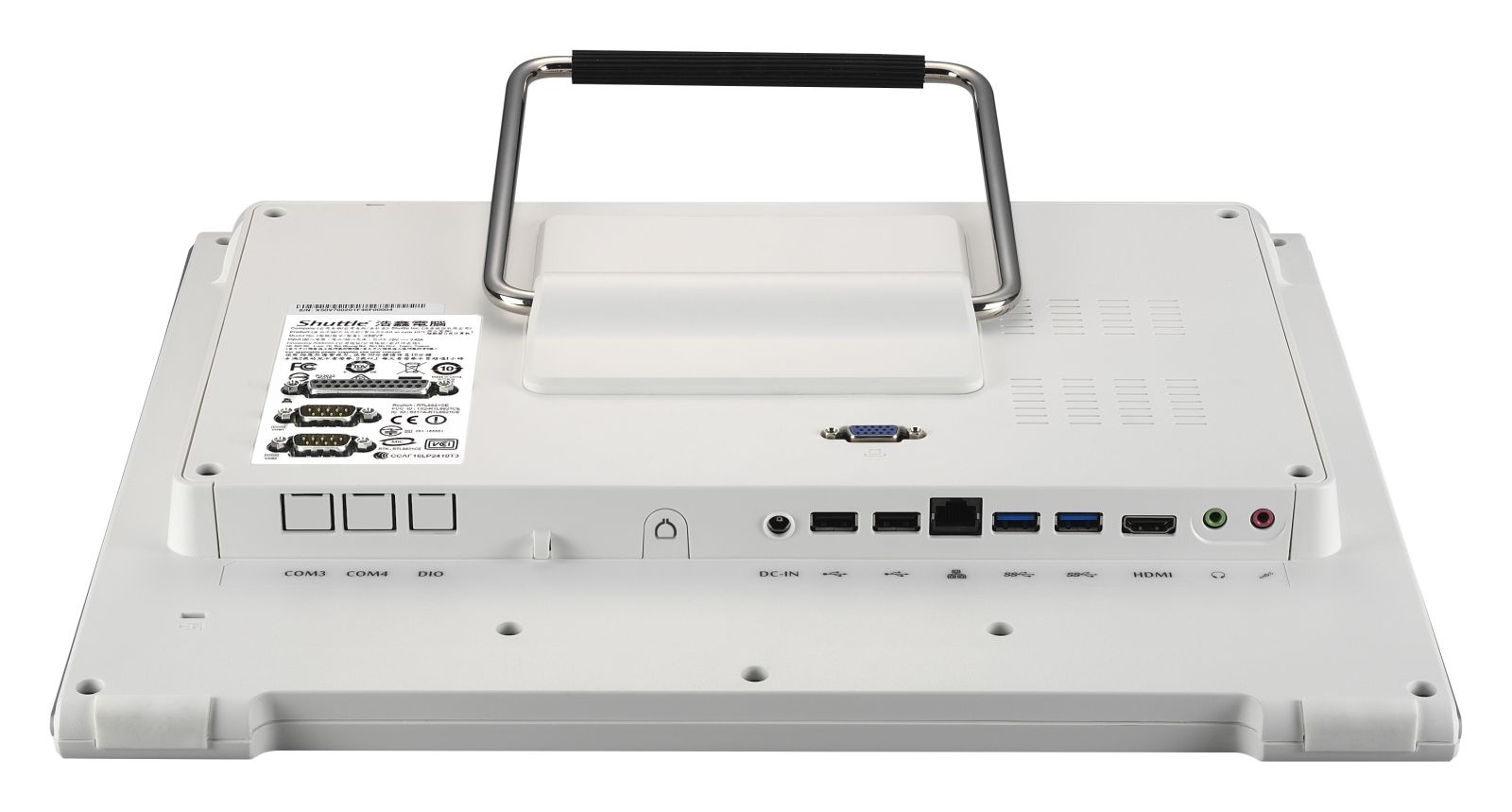

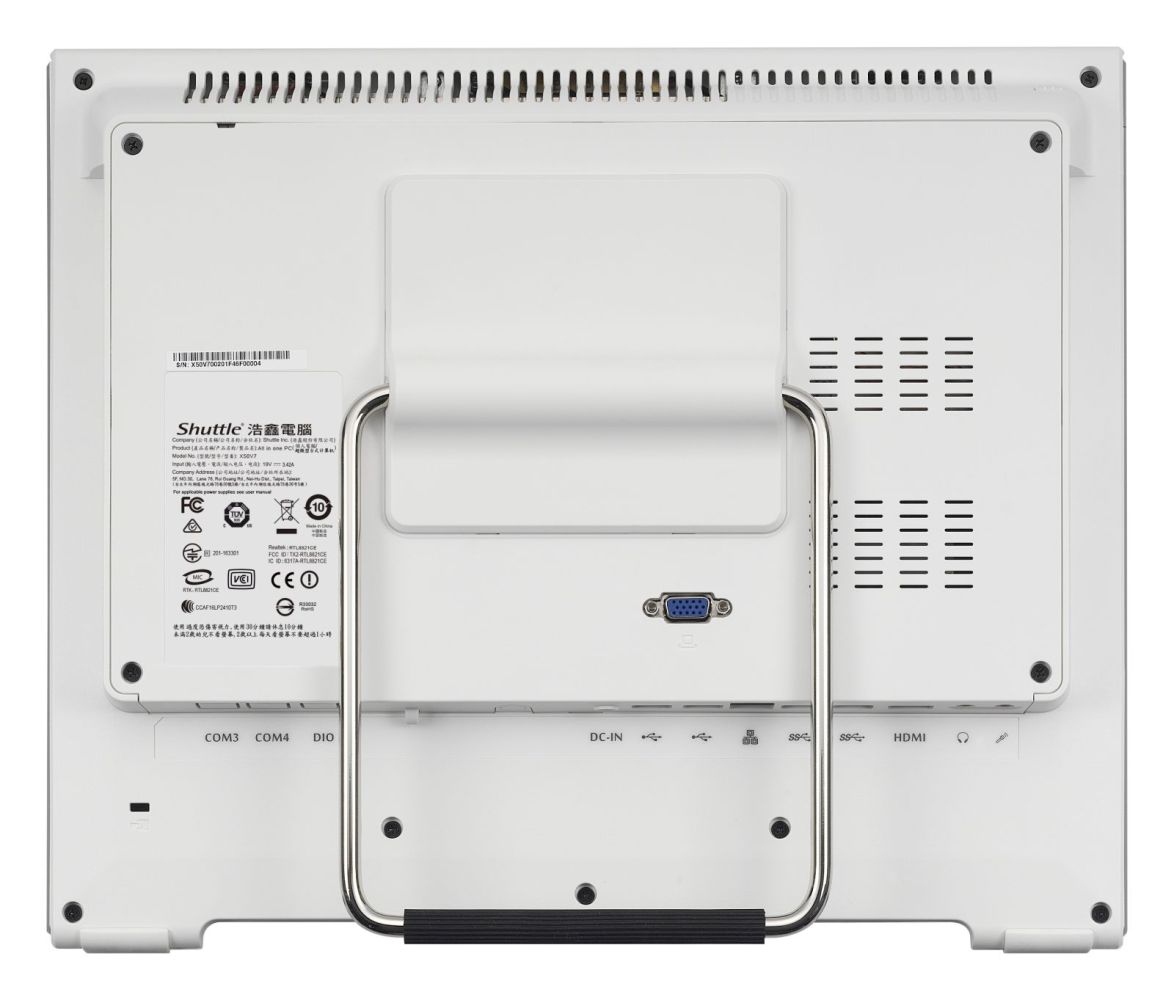

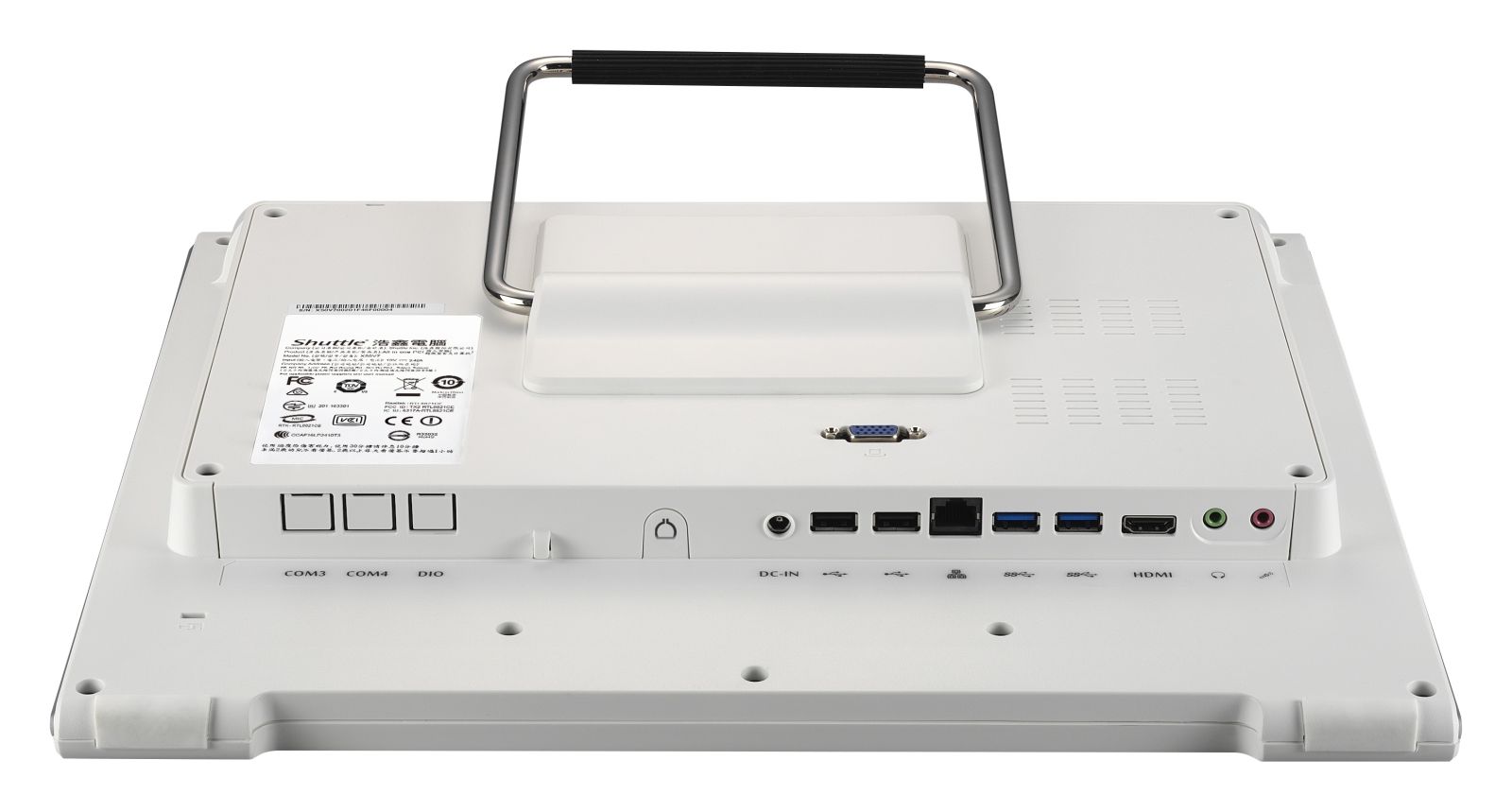

| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | |
| DC-in jack | |
| Power | |
| AC adapter output voltage | 19 V |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 8th gen Intel® Core™ i3 |
| Processor model | i3-8145U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3.9 GHz |
| Processor frequency | 2.1 GHz |
| Processor socket | BGA 1528 |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2.3 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Configurable TDP-down | 10 W |
| PCI Express slots version | 3.0 |
| Processor lithography | 14 nm |
| Bus type | OPI |
| Processor codename | Whiskey Lake |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
| Processor special features | |
| Intel® Turbo Boost Technology | 2.0 |
| CPU configuration (max) | 1 |
| Intel Identity Protection Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Processor ARK ID | 149090 |
| Intel® Smart Response Technology | |
| Intel® Hyper Threading Technology (Intel® HT Technology) | |
| Intel® My WiFi Technology (Intel® MWT) | |
| Intel® Identity Protection Technology (Intel® IPT) | |
| Enhanced Intel SpeedStep Technology | |
| Intel® Quick Sync Video Technology | |
| Intel® Clear Video HD Technology (Intel® CVT HD) | |
| Intel Clear Video Technology | |
| Intel Flex Memory Access | |
| Intel® AES New Instructions (Intel® AES-NI) | |
| Intel Trusted Execution Technology | |
| Intel Enhanced Halt State | |
| Intel VT-x with Extended Page Tables (EPT) | |
| Intel® Secure Key | |
| Intel TSX-NI | |
| Intel® OS Guard | |
| Intel Software Guard Extensions (Intel SGX) | |
| Intel 64 | |
| Execute Disable Bit | |
| Idle States | |
| Thermal Monitoring Technologies | |
| Embedded options available | |
| Intel Virtualization Technology for Directed I/O (VT-d) | |
| Intel Virtualization Technology (VT-x) | |
| Software | |
| Operating system installed | |
| Storage | |
| Number of storage drives supported | 2 |
| SSD form factor | M.2 |
| Compatible memory cards | SD, SDXC |
| Card reader integrated | |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Package weight | 4.8 kg |
