Shuttle Barebone slim DS50U7 i71355U content_copy

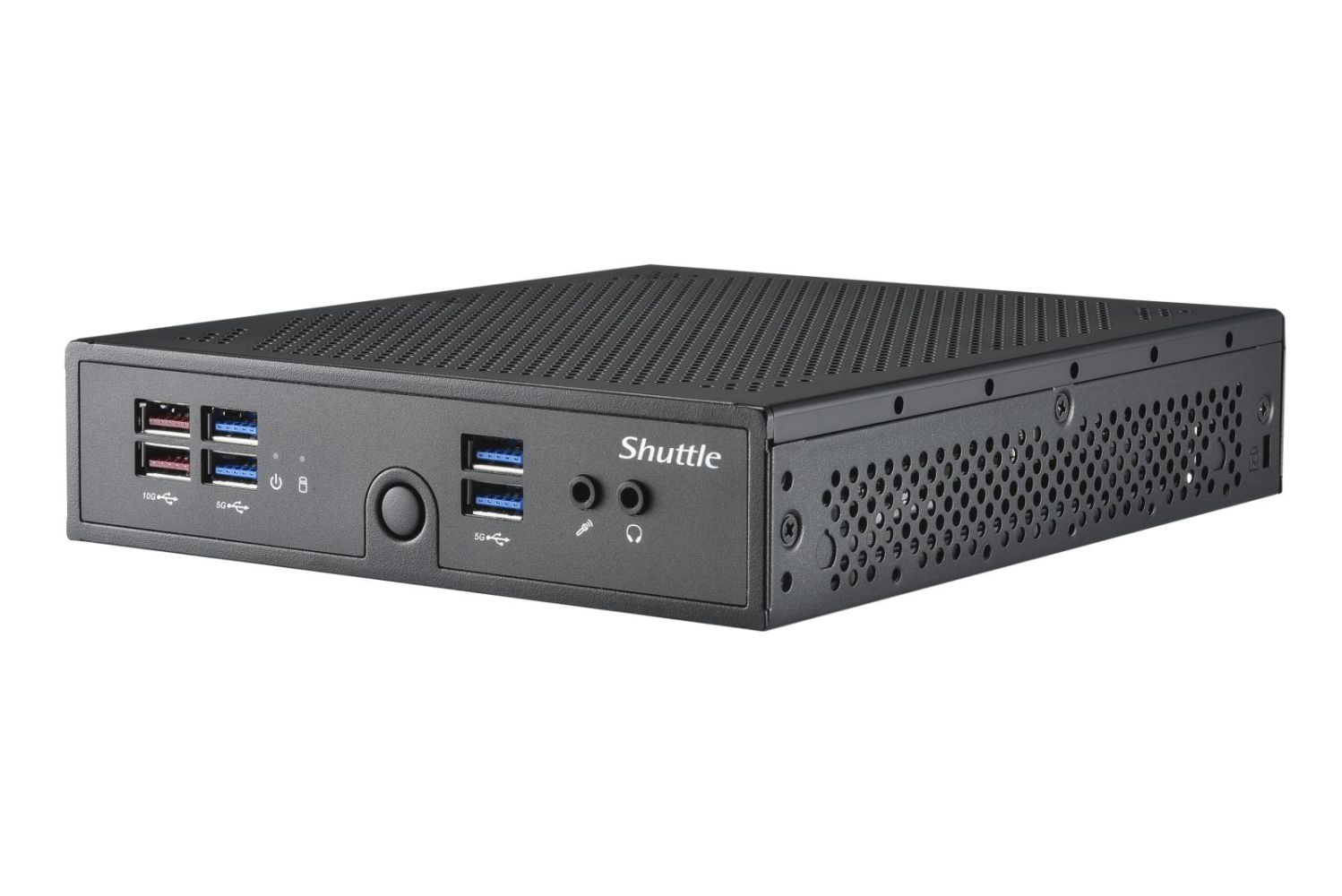

Flat metal case with fanless Heatpipe Cooling-System, 24/7 ready
Size: 16.5 cm x 20.0 cm x 3.95 cm (H x T x B), VESA mounting Kit incl.
Intel Core i7-1355U embedded (10C/12T up to 5.0 GHz)
RAM 2 x SO-DIMM DDR5 , max. 64GB
Intel UHD Graphics integrated
Realtek ALC888S, High-Definition Audio
Intel i226 (2,5 Gbit/s) + i219 (1 Gbit/s), supports WOL, PXE, Teaming
1x M.2 2230E Slot for WiFi/ Bluetooth
1x M.2 2280 Slot (supports PCIe x4 NVMe/ SATA)
!!! es wird nur 1 M.2-SSD mit PCIe/NVMe unterstützt. Die zweite M.2-SSD muß eine SATA sein.
1x 2,5“ Drive-Bay, max. 9.5 mm height

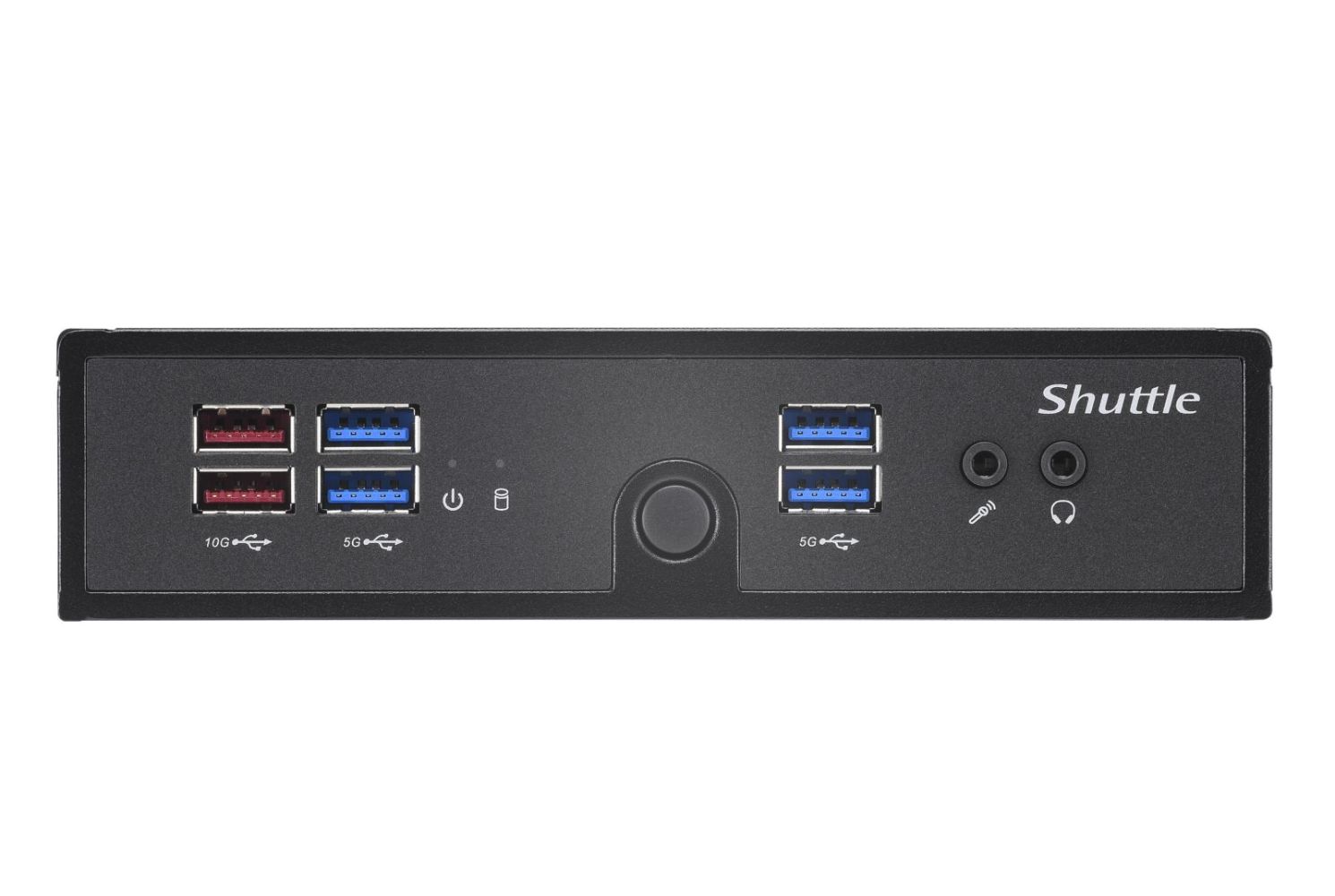

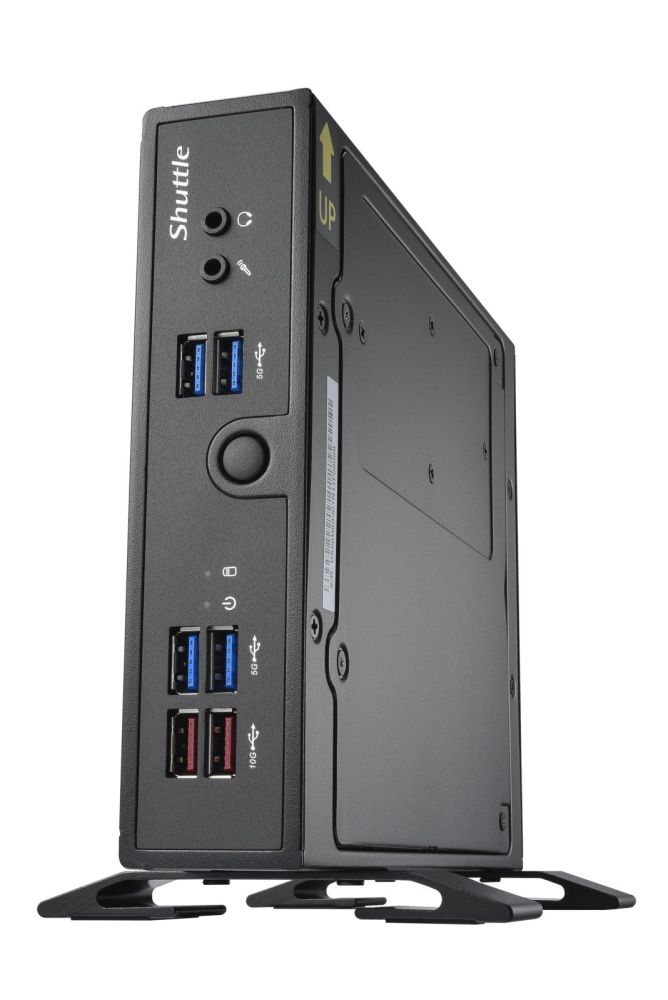

Connection front: 2x USB 3.2 Gen2,
4x USB 3.2 , Mic-in, Line-out

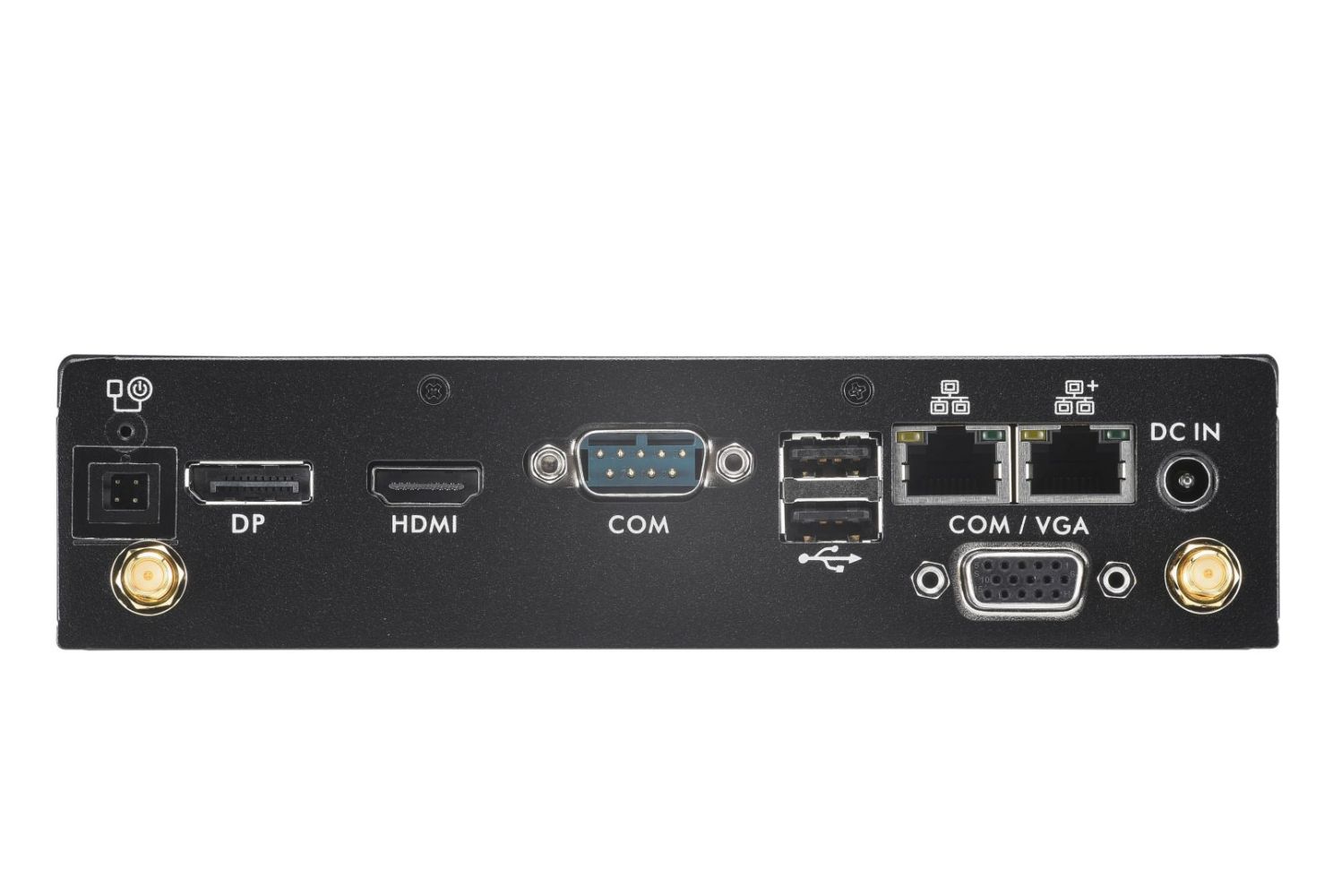

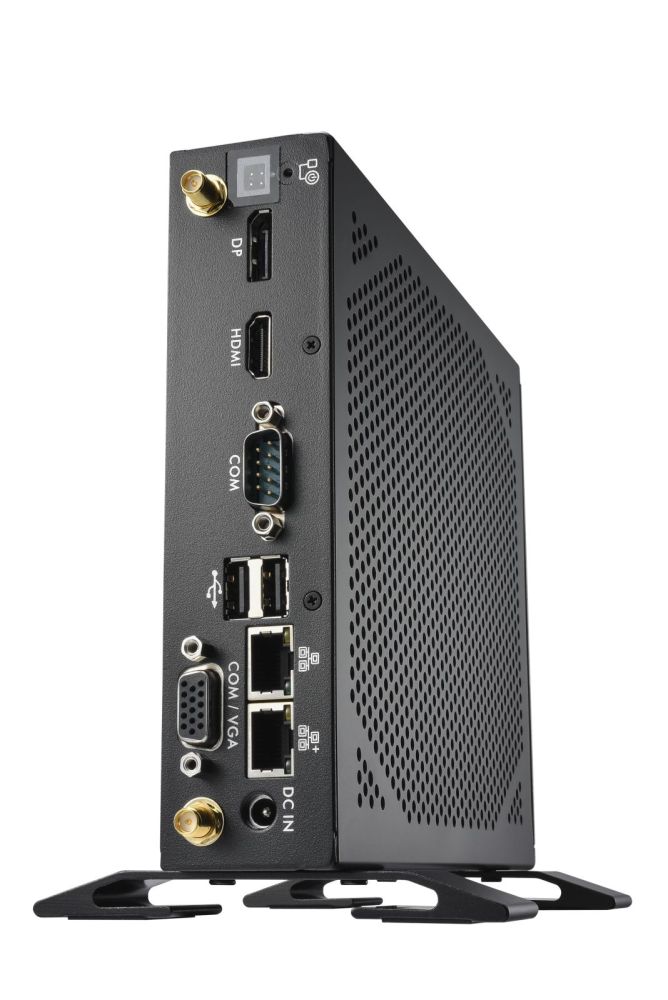

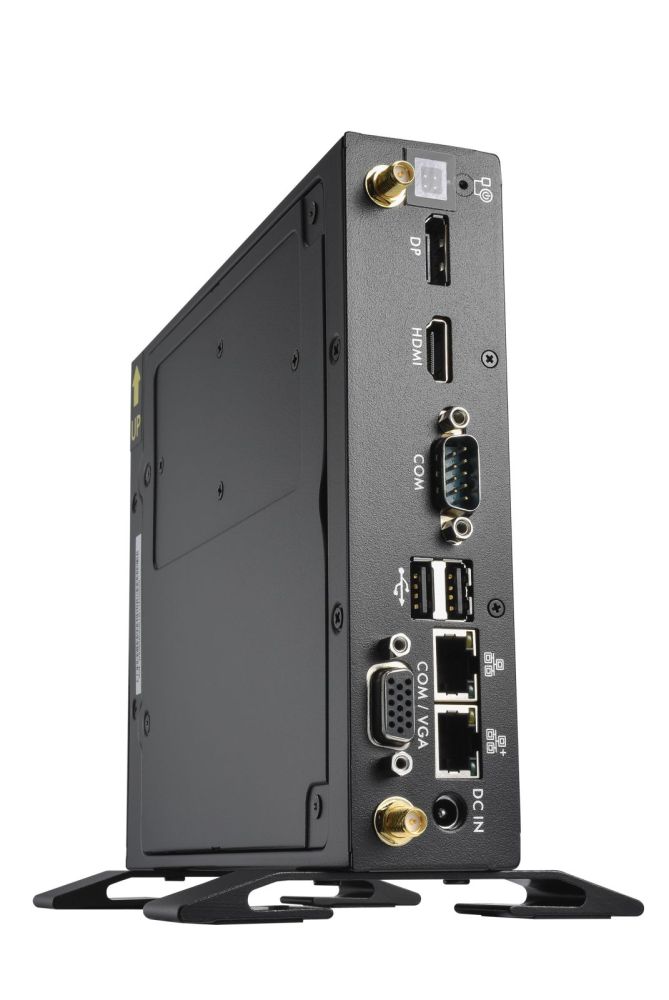

Connection rear: 2x RJ45, 2x USB 2.0, 1x DC,
1x DP 1.4, 1x HDMI2.0b, 1x D-Sub/VGA
(supports max. 3x Displays), 1x COM RS232/RS422/RS485
Option: 2nd COM-Port RS232 (replaces VGA-port)

Audio
Built-in speaker(s)
Design
Chassis type	1.3L sized PC
Product colour	Black
Cooling type	Passive
LED indicators	HDD, Power
Housing material	Steel
Cable lock slot type	Kensington
Panel mounting interface	75 x 75,100 x 100 mm
Product type	Mini PC barebone
On/off switch
Cable lock slot
VESA mounting
Graphics
Graphics card family	Intel
On-board graphics card model	Intel® UHD Graphics
On-board graphics card
Logistics data
Harmonized System (HS) code	84733080
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Maximum internal memory	64 GB
Supported memory clock speeds	5200 MHz
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Memory voltage	1.1 V
Network
LAN controller	Intel® I219, Intel I226-LM
Ethernet LAN
Wi-Fi
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Packaging content
Power cord included
AC adapter included
Quick start guide
Performance
Number of processors supported	1
BIOS type	UEFI AMI
Trusted Platform Module (TPM) version	2.0
Audio chip	Realtek ALC888S
Trusted Platform Module (TPM)
Ports & interfaces
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI ports quantity	1
HDMI version	2.0b
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2
Serial ports quantity	1
Microphone in
DC-in jack
Power
Power supply type	External AC adapter
Power supply	90 W
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
AC adapter output voltage	19 V
AC adapter output current	1.6 A
Processor
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	13th gen Intel® Core™ i7
Processor model	i7-1355U
Processor cores	10
Processor threads	12
Processor boost frequency	5 GHz
Performance cores	2
Efficient cores	8
Performance-core boost frequency	5 GHz
Efficient-core boost frequency	3.7 GHz
Processor cache	12 MB
Thermal Design Power (TDP)	15 W
Built-in processor
ECC supported by processor
Software
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported
Operating system installed
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5,M.2
Storage drive interface	PCI Express, Serial ATA III
Number of storage drives supported	3
NVMe
Sustainability
Sustainability certificates	ENERGY STAR, ErP
Sustainability compliance
Technical details
Compliance certificates	BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus
Weight & dimensions
Width	200 mm
Depth	165 mm
Height	39.5 mm
Weight	1.6 kg
Package weight	2.3 kg

---
