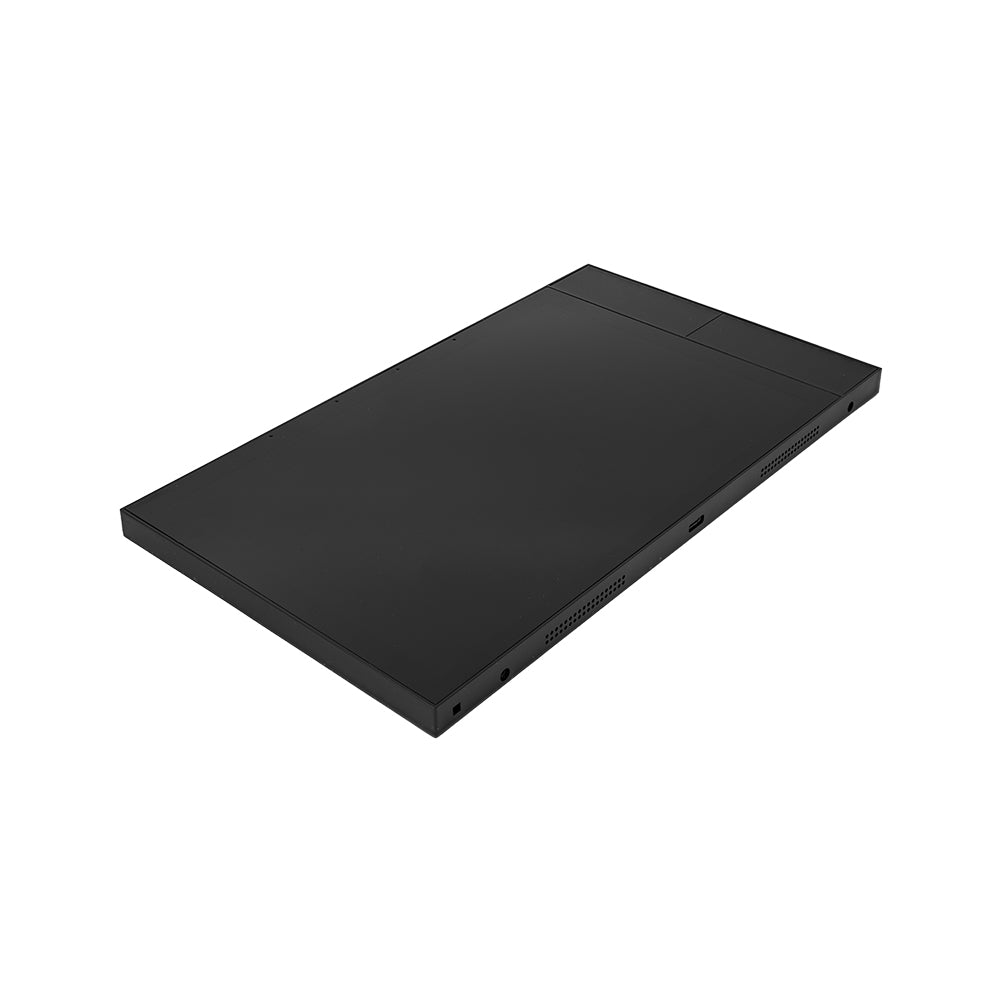

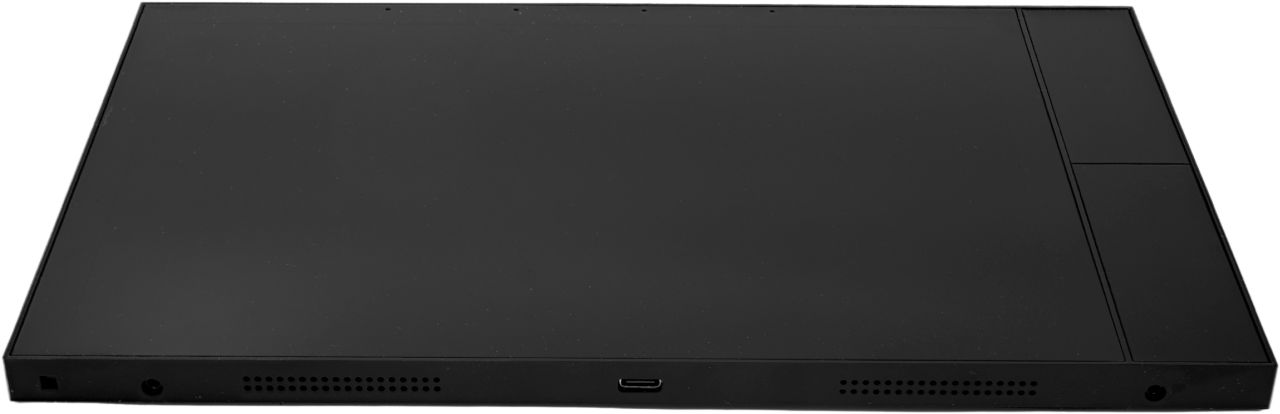

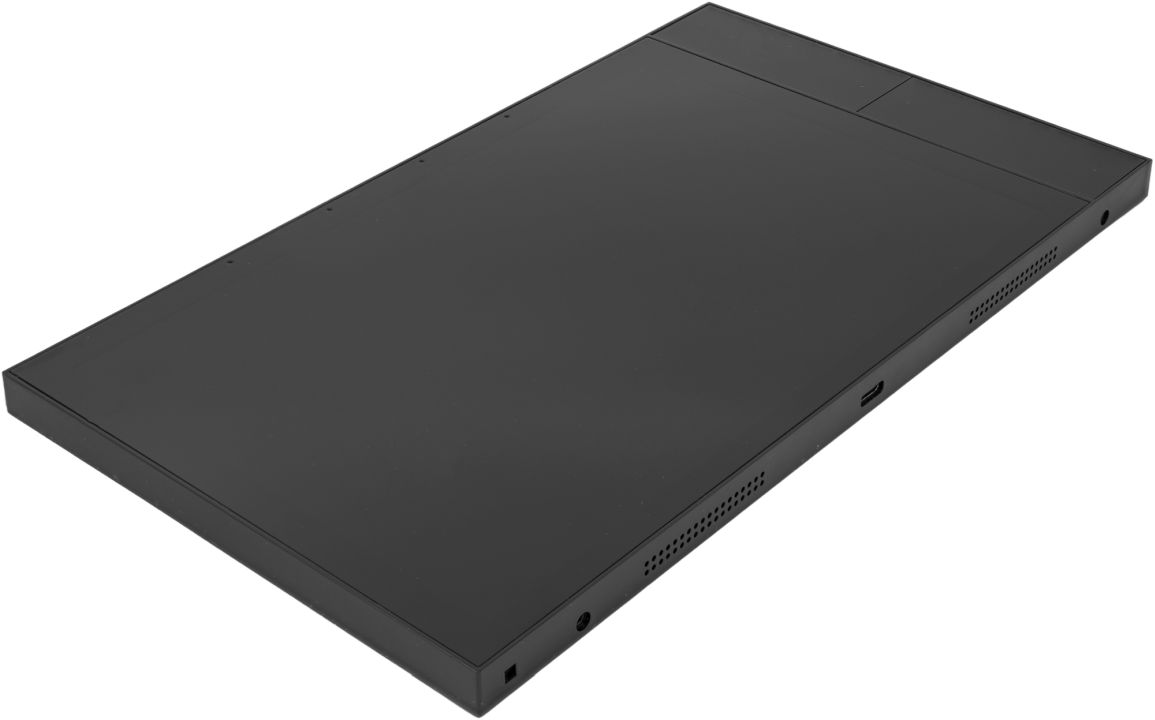

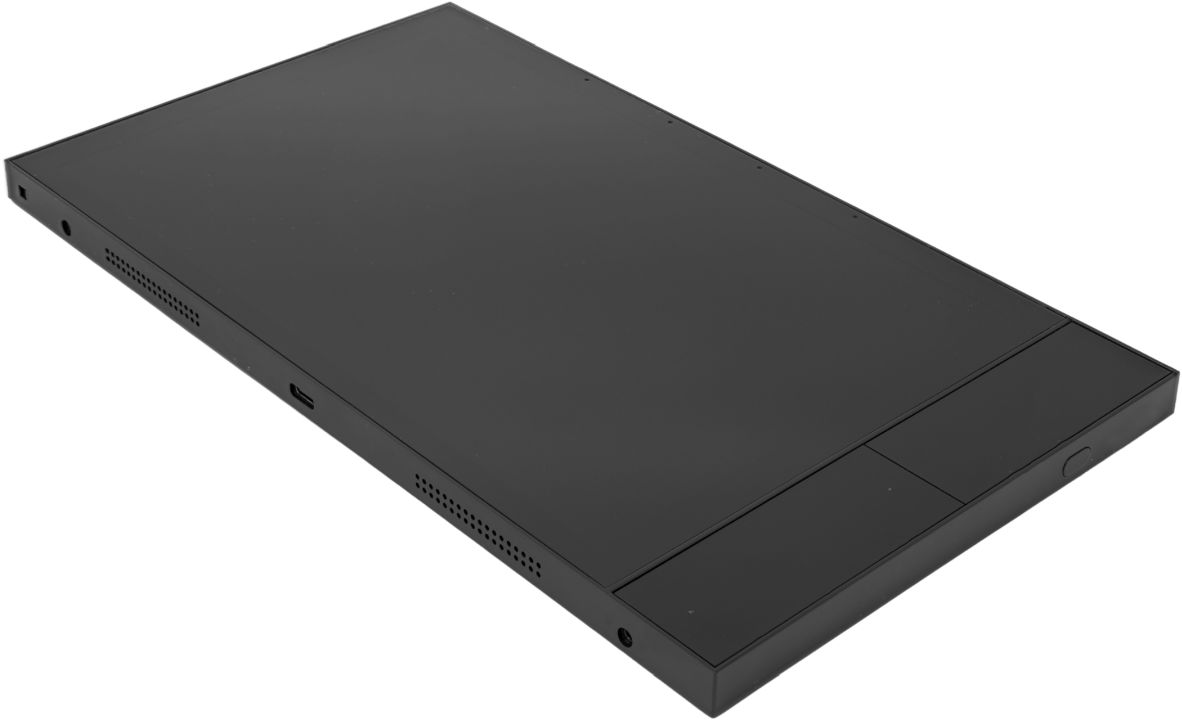

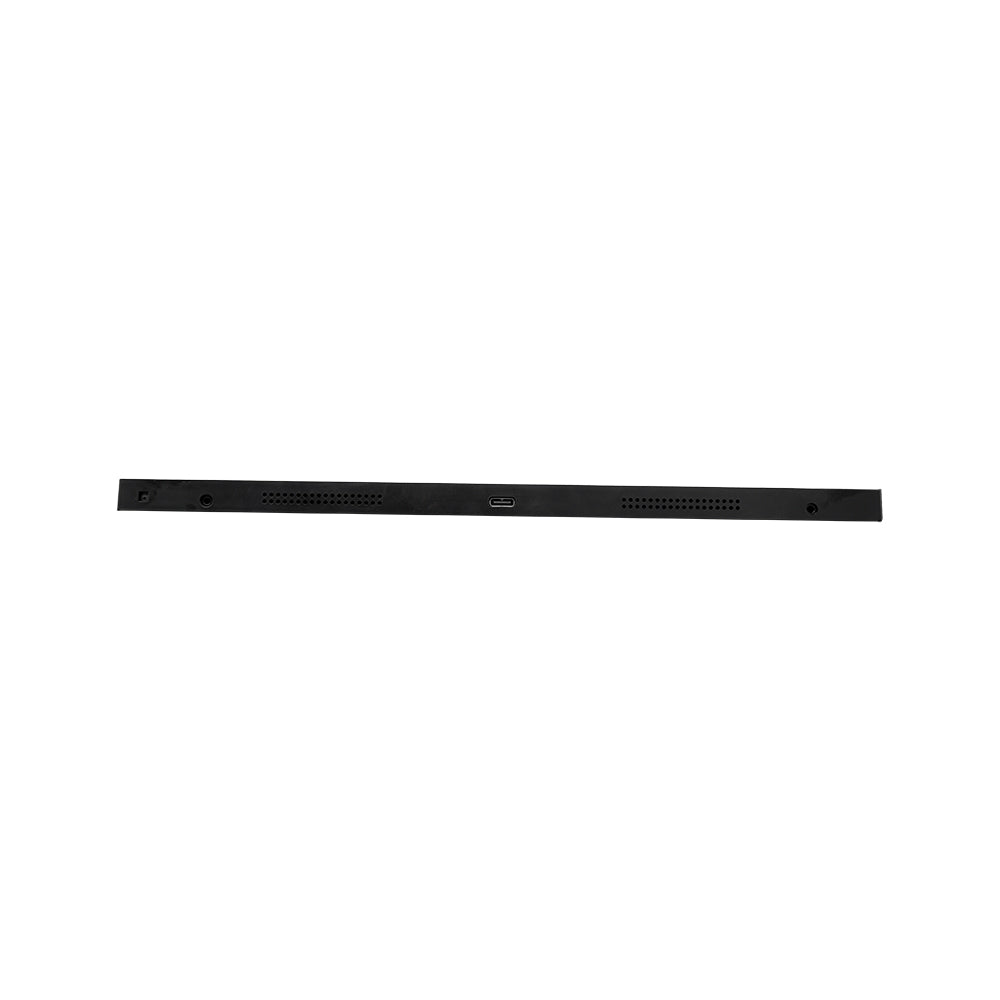

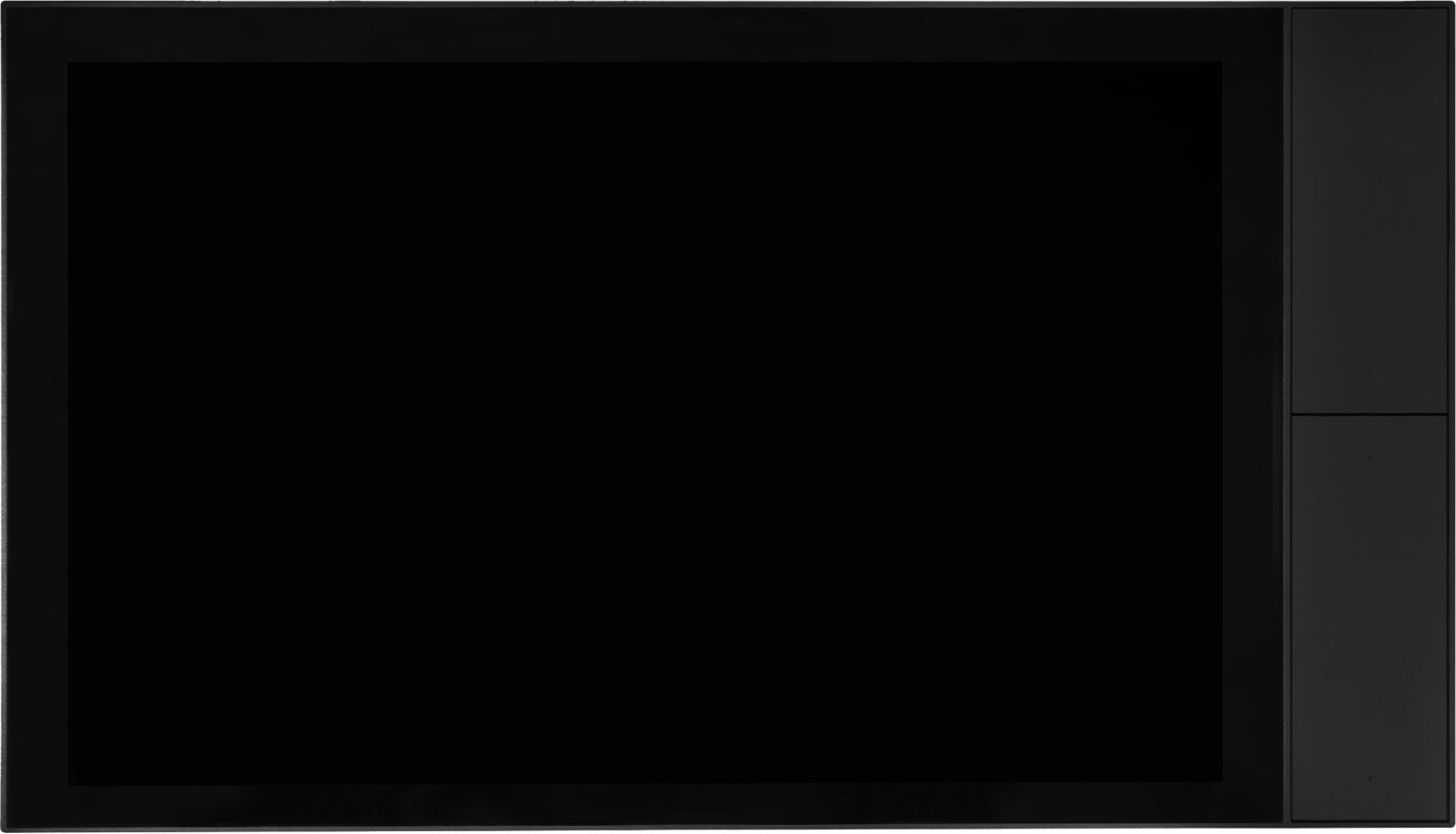

SHELLY Wall Display XL Black WLAN Wall Control Display
|
206,96 EUR 206,97 EUR |
|
|
( 246,28 EUR incl. VAT ) ≈ £173.23 | ≈ $231.59 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Lieske Part No.: | 225869 |
|---|---|
| Mfg Part No: | Shelly Wall Display XL s |
| UPC/EAN: | 3800238073008 |
| Weight: | 1.334 kg |
Product information for Shelly Shelly_Wall_Display_XL_s:

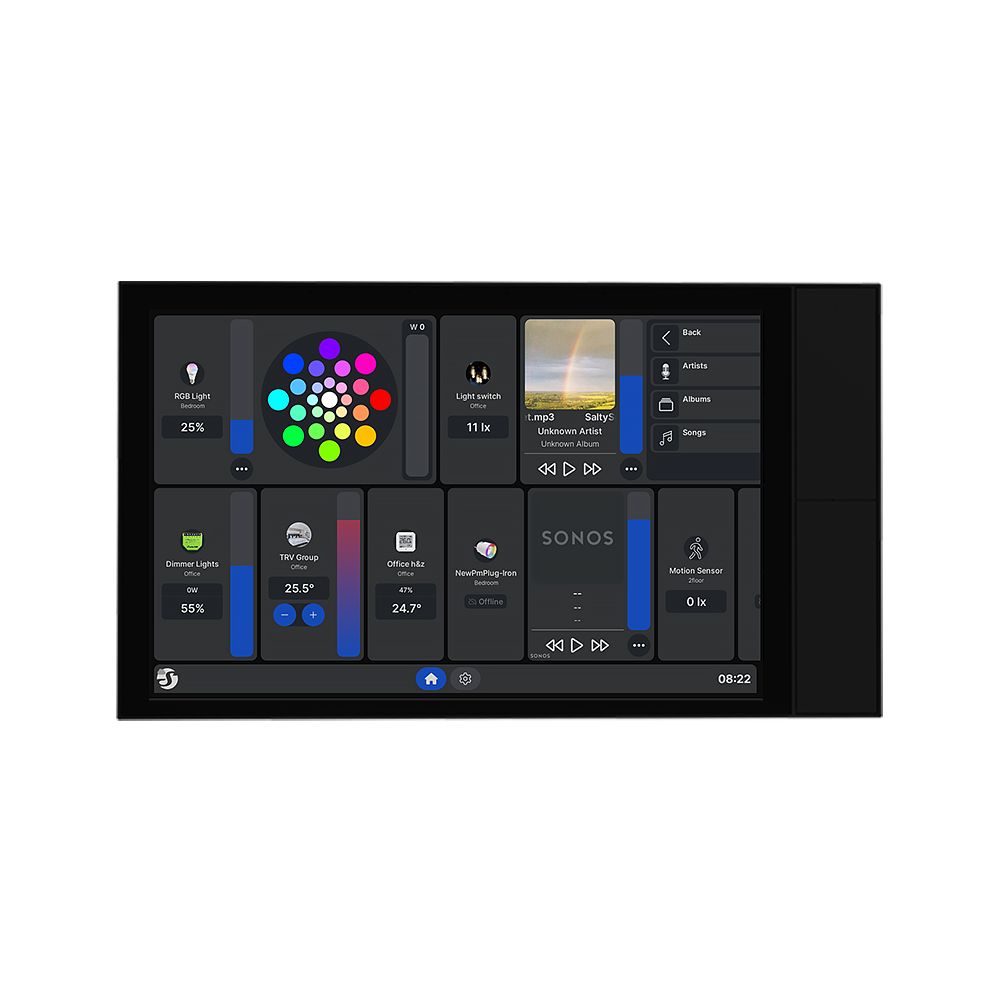

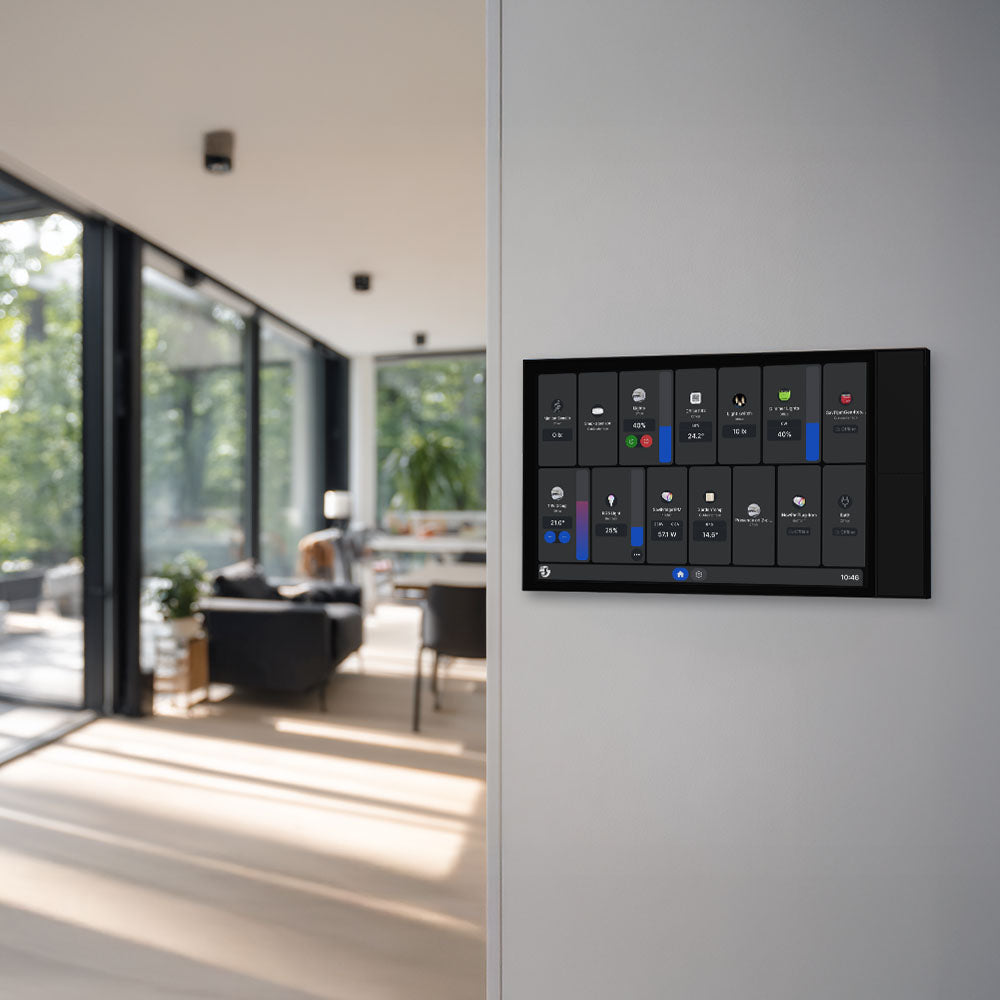

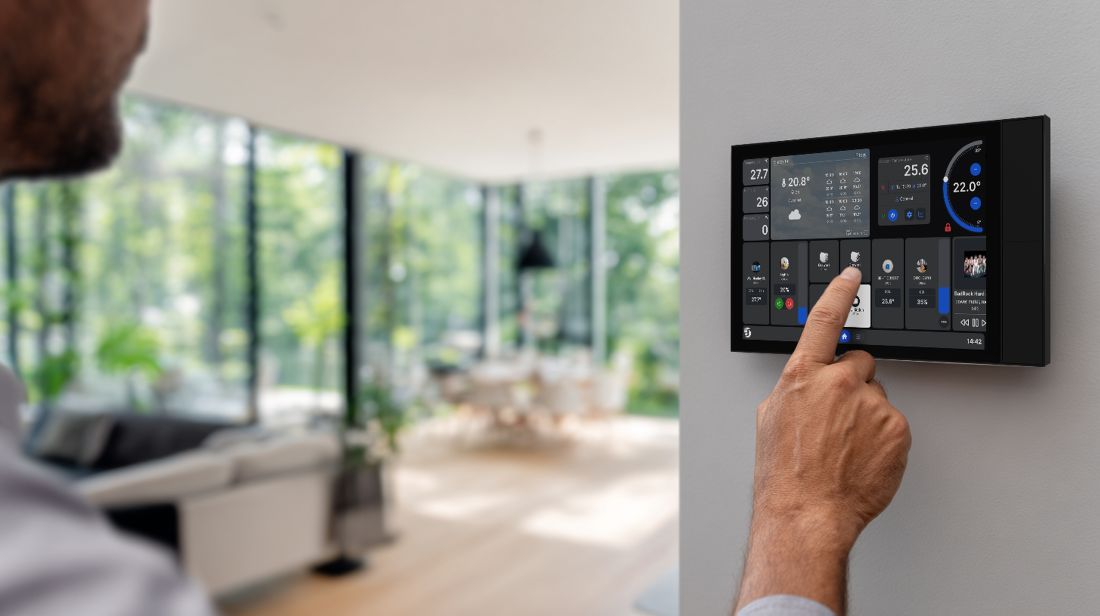

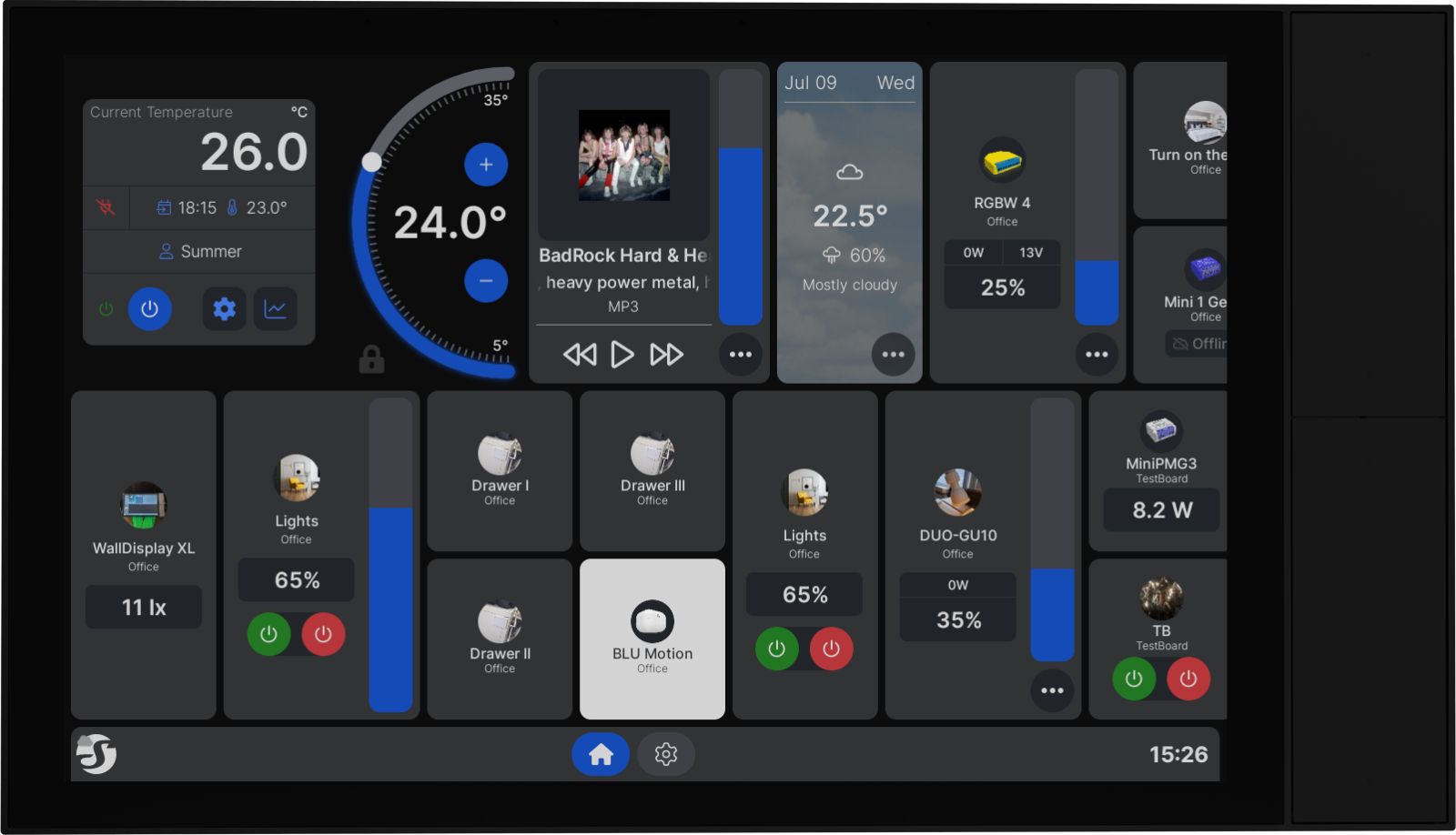

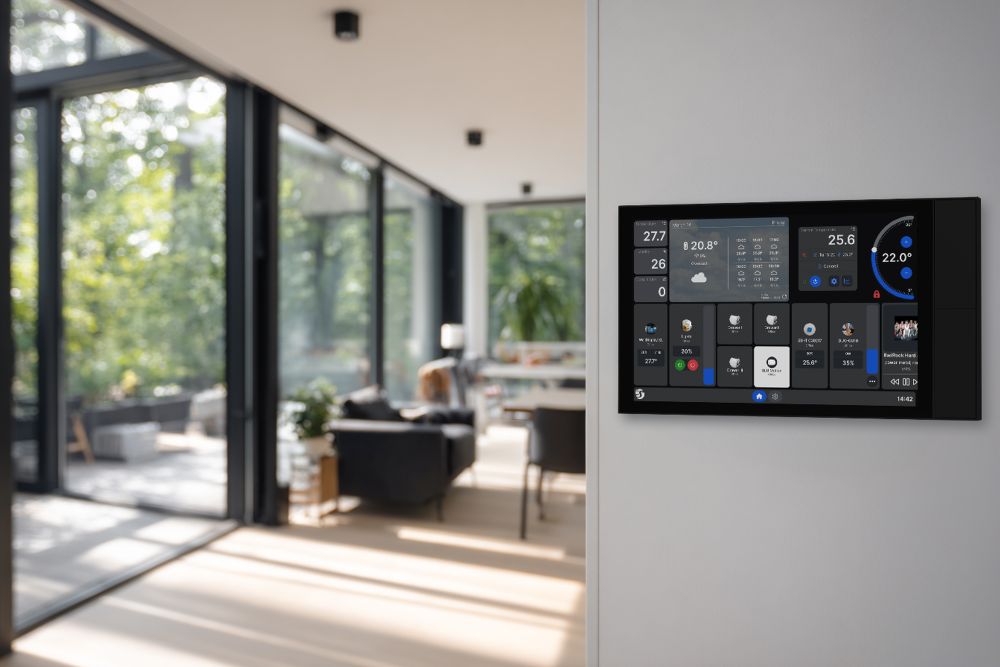

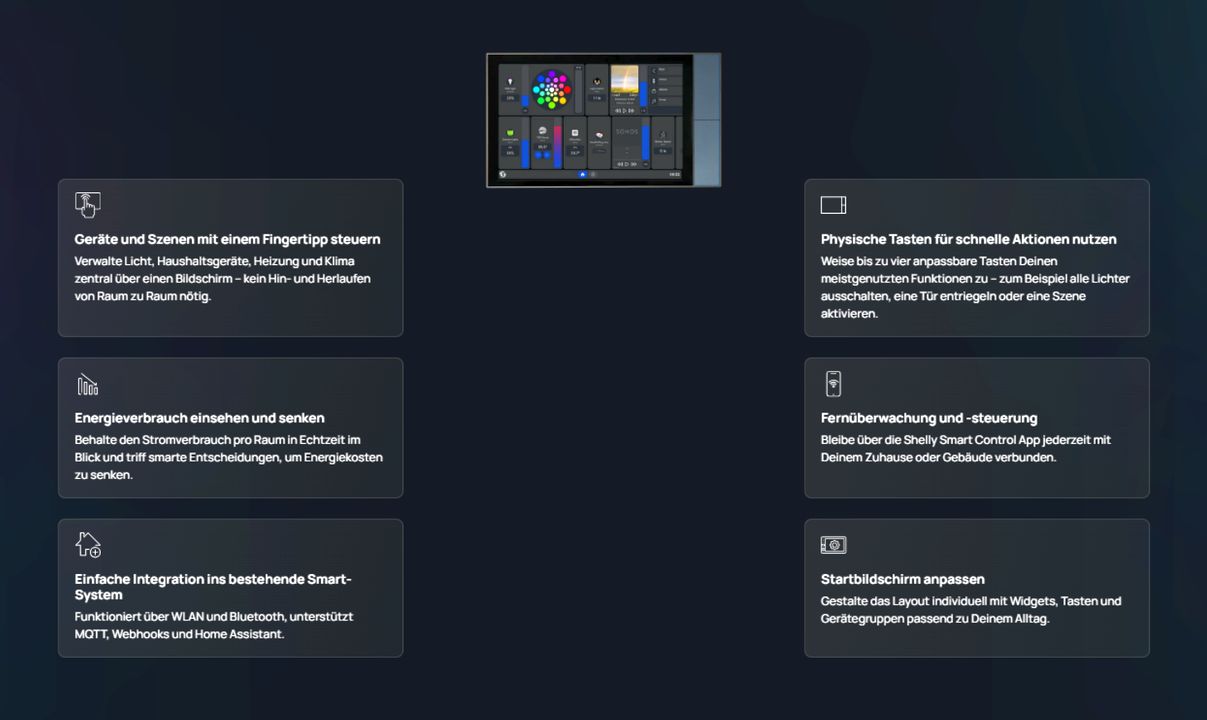

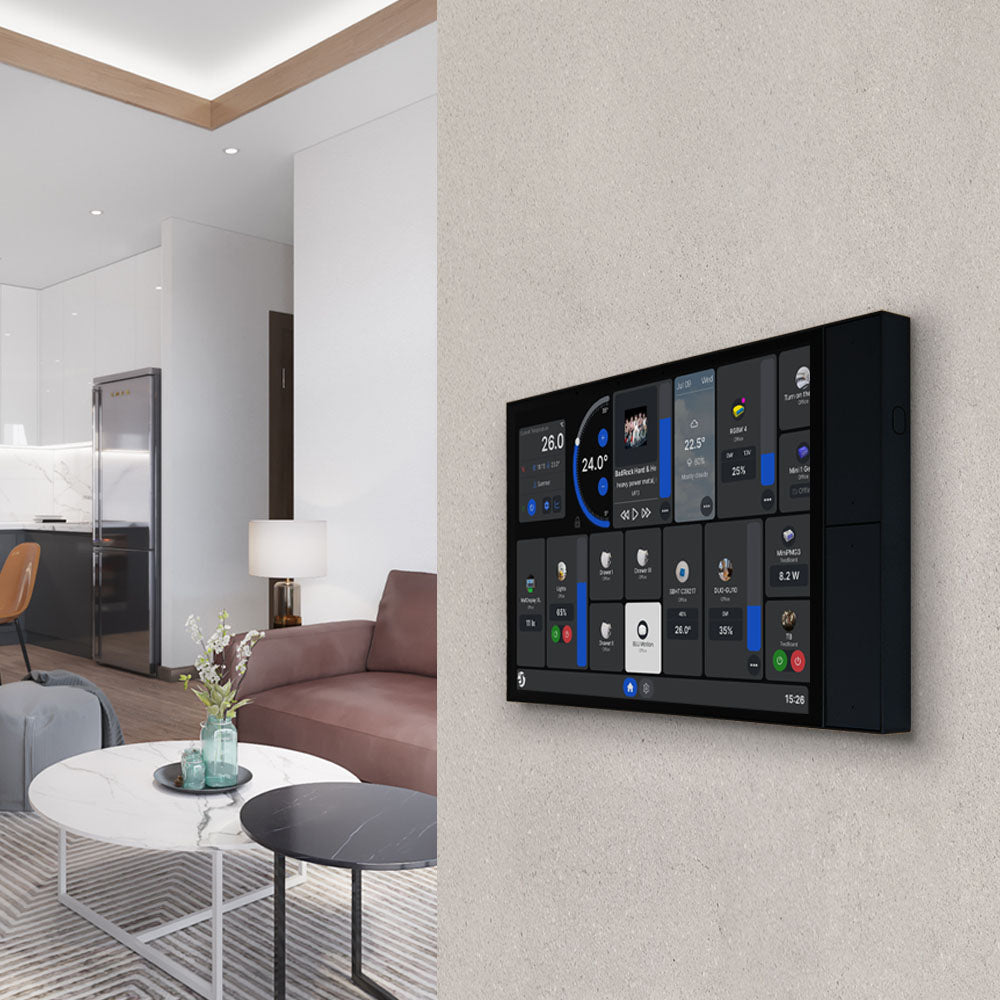

Smart-Home-Bedienpanel mit 25,7 cm ( 10,1 inch )-Touchdisplay, integriertem Schaltrelais und vier individuell konfigurierbaren Tasten. Lässt sich in eine Standard-Unterputzdose installieren und gibt Dir die volle, einfache Kontrolle über Deine Shelly Geräte – ideal für Häuser, Wohnungen, Hotels und Gewerbeflächen. - 10,1\'\' reaktionsschnelles Farb-Touchscreen-Display in HD-Qualität - Ultraschneller Quad-Core-Prozessor für sofortige Reaktion - Wandmontage-Design, mit EU-Standard-Unterputzdosen kompatibel - Integrierte Stereo-Lautsprecher (2 × 2 W) in hoher Qualität - Unterstützung für Bluetooth- und SONOS-Lautsprecher - Zwei Konnektivitätsoptionen: Bluetooth 5.4 und Dual-Band-WLAN 6 (2,4 GHz und 5 GHz) - Eingebautes Relais zum Steuern von Verbrauchern bis zu 1500 W - Vier frei belegbare Tasten für schnelle Aktionen und Szenen - Integrierte Sensoren für Bewegung und Helligkeit (Lux) - Anzeige von Leistungs- und Verbrauchsdaten aus verbundenen Shelly PM-Geräten - Vollständig anpassbare Bildschirmoberfläche für das Gerätemanagement - Integrierter Media-Player und Internetradio-Unterstützung Häufige Verwendungsarten: -Raumverwaltung -Szenenaktivierung -Abdeckungen und Jalousien -Heizung & Kühlung -Elektrogeräte
| Bluetooth | |
| Protocol (Bluetooth) | 5.4 |
| RF band (Bluetooth) | 2402 - 2480 MHz |
| Max. RF power (Bluetooth) | < 4 dBm |
| Range (Bluetooth) | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors , (Depends on local conditions) |
| Electrical | |
| Power supply | 100 - 240 V~ 50/60Hz |
| Power consumption | < 15 W |
| USB TYPE-C power supply | 5 V⎓ / 3 A |
| Power Button | 1 button for turning On/Off the screen |
| Environmental | |
| Ambient working temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Firmware capabilities | |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 5 URLs per hook |
| Scripting | |
| MQTT | |
| Microcontroller unit | |
| CPU | Rockchip RK3566 Quad core Cortex-A55 1.8GHz |
| RAM | 2 GB |
| Flash | 32 GB |
| System | Android 11 |
| Output circuits ratings | |
| Max. switching voltage | 240 V~ |
| Max. switching current | 5 A |
| Output (AC) | 100 - 240 V~ 50/60Hz |
| Output (USB TYPE-C) | 5 V⎓ / 0.5 A |
| Physical | |
| Size (HxWxD) | 155,8x272,5x38,3 mm / 6.13x10.7x1.50 inch |
| Weight | 920 g / 32.45 oz |
| Touch Screen | 5-point capacity screen, G+FF touch |
| Screen resolution | 1280x752 px |
| Screw terminals max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.75 to 2.5 mm² / 18 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 6 to 15 mm / 0.24 to 0.59 in |

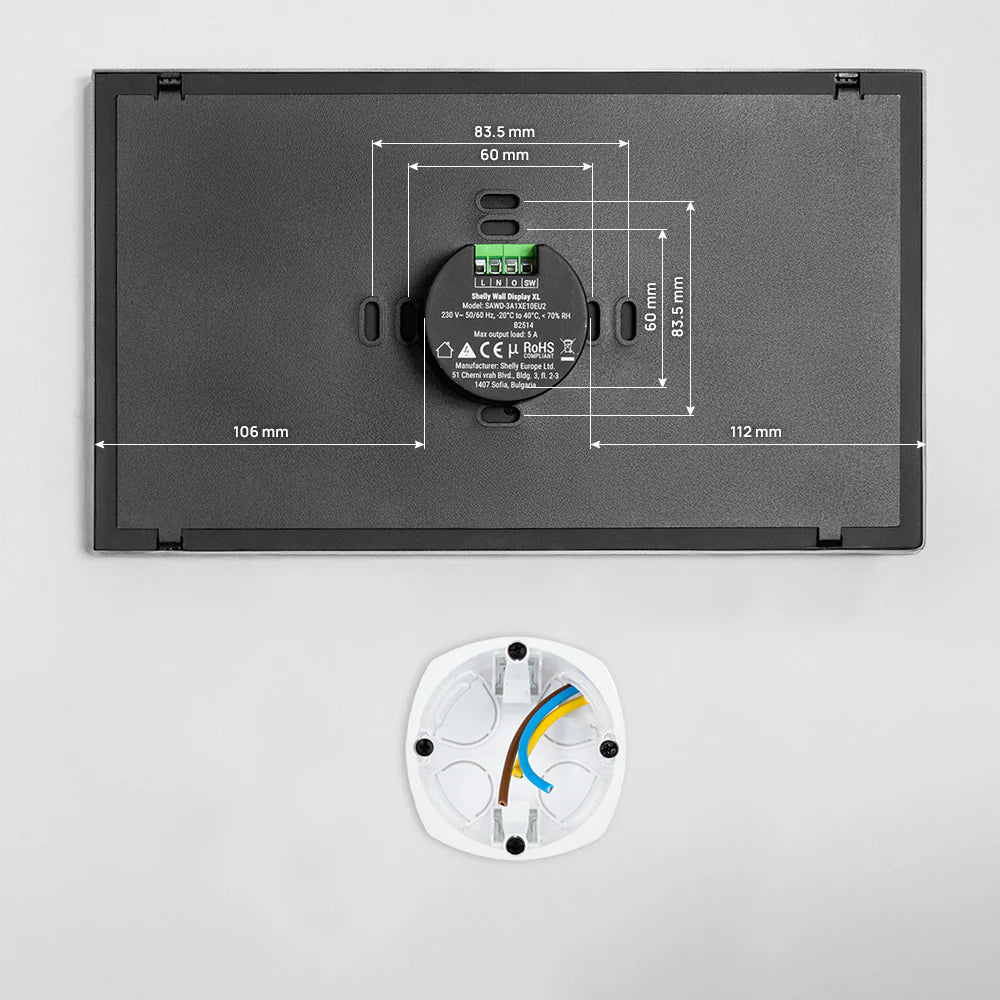

| Mounting | Wall box |
| Shell material | Metal stamping, PC with coating, glass |
| Shell color | Grey Black |
| Speaker | 2x 2 W (BOX sound cavity) |
| Sensors, meters | |
| Microphone | Yes (Four-microphone line array) |
| Motion sensor | Yes (≤1 meter) |
| Internal-temperature sensor | |
| Ambient temperature sensor | |
| Humidity sensor | |
| Light sensor | |
| G-sensor | |
| Wi-Fi | |
| Protocol | Wi-Fi 6 Dual Band |
| RF band | 2412 – 2472 MHz 5150 – 5850 MHz |
| Max. RF power | < 14 dBm |
| Range | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors , (Depends on local conditions) |
