Shelly · DIN rail · LAN Switch · 5 ports · 10/100 Mbit content_copy

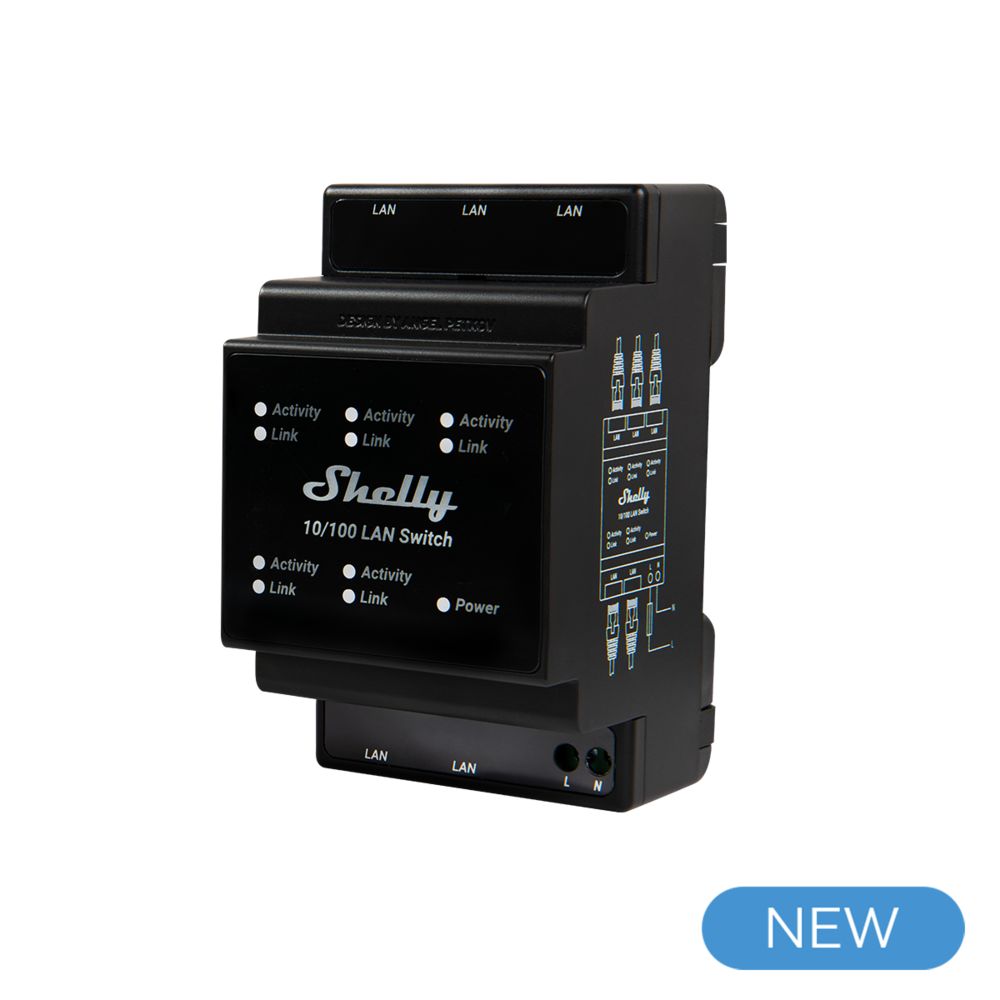

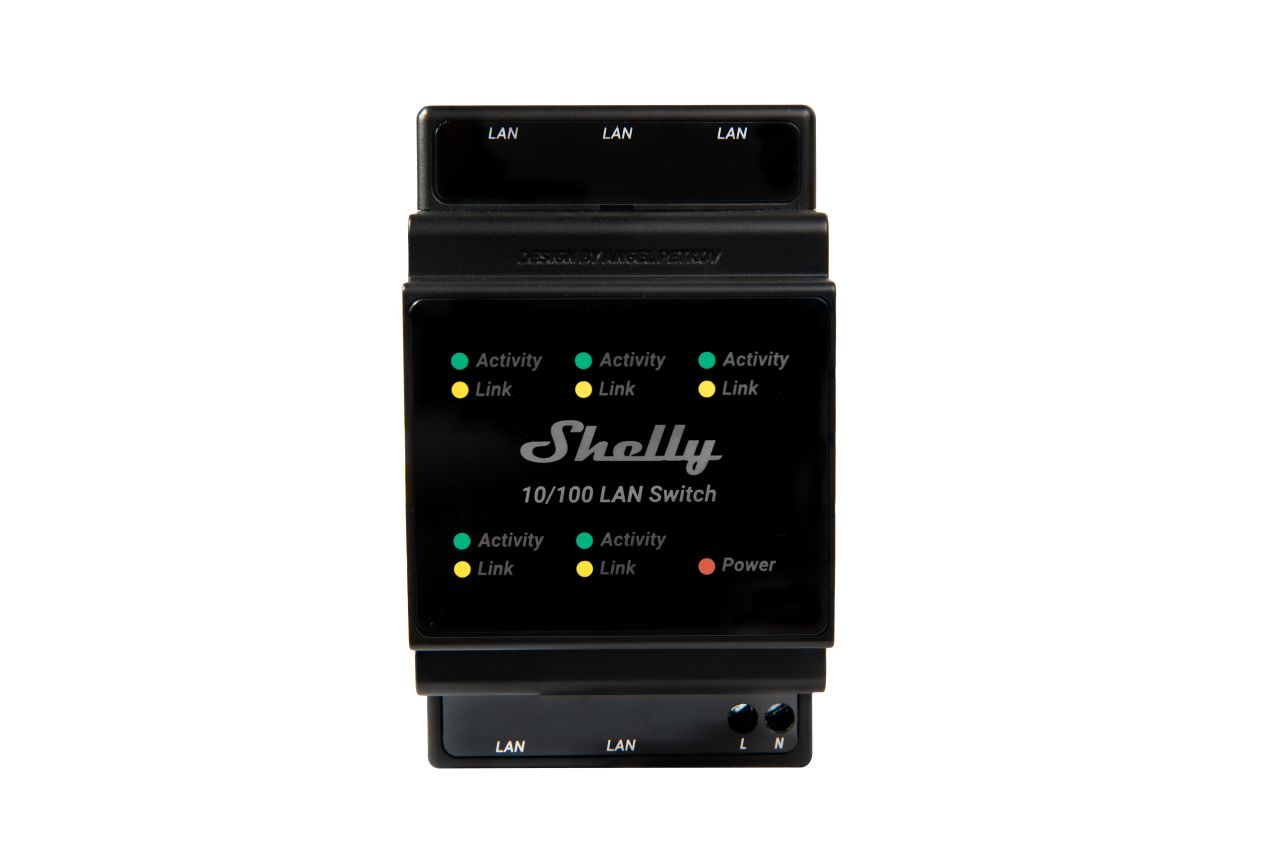

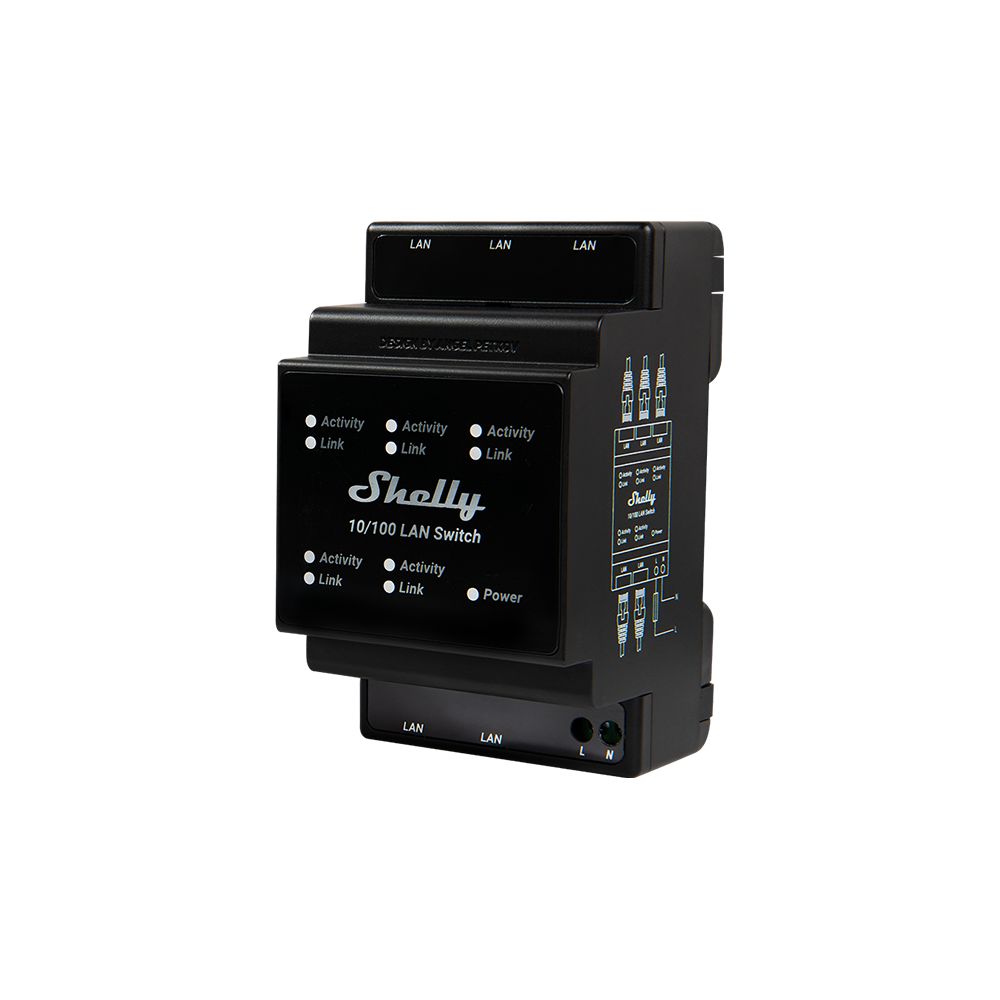

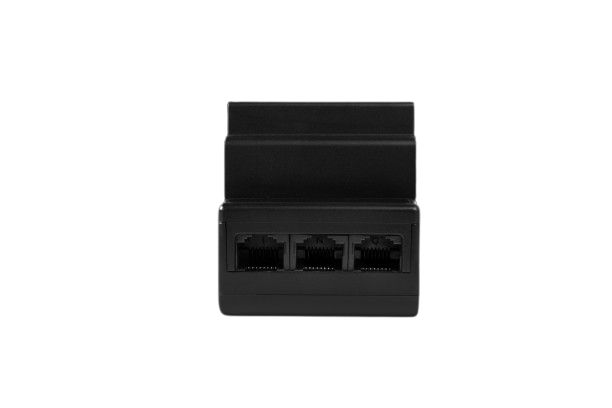

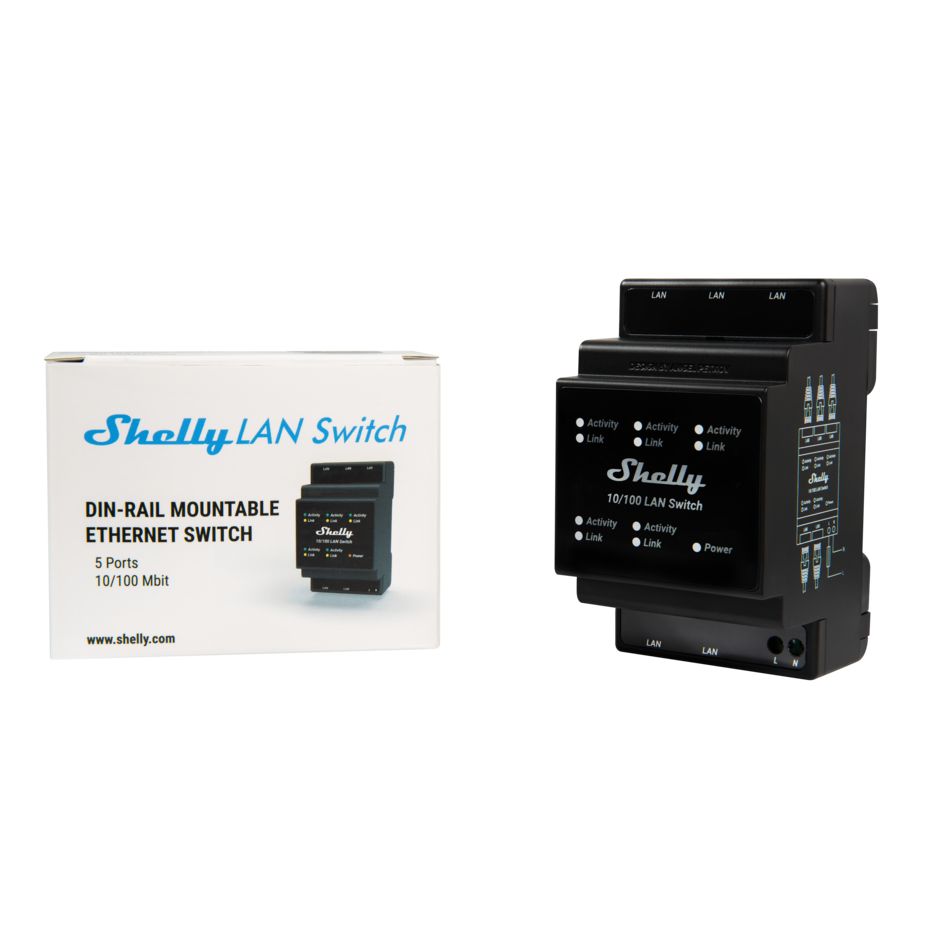

LAN Switch for DIN Rail The Shelly LAN Switch is a DIN-mountable Ethernet switch with 5 RJ45 ports. It offers a seamless solution to expand your network capabilities without the hassle of extensive rewiring. With its reliability and performance, it ensures a constant and stable direct network connection to your devices, giving you peace of mind and confidence in your network infrastructure. DIN-mountable 5 RJ45 ports 10/100 Mbps LED indicators Power supply from 110V - 230V No additional adapters required WHY SHELLY LAN SWITCH? Simplify your setup The device is designed to fit perfectly into your existing fuse box. It simplifies network management and enables a cleaner and more efficient setup. Even if you did not originally plan to adapt your fuse box to accommodate Shelly devices, the Shelly LAN Switch eliminates the need for complex rewiring or modifications. Simply install the switch and immediately improve the network stability of your devices to ensure smooth operation without disruption.
FEATURES
The shape you already love

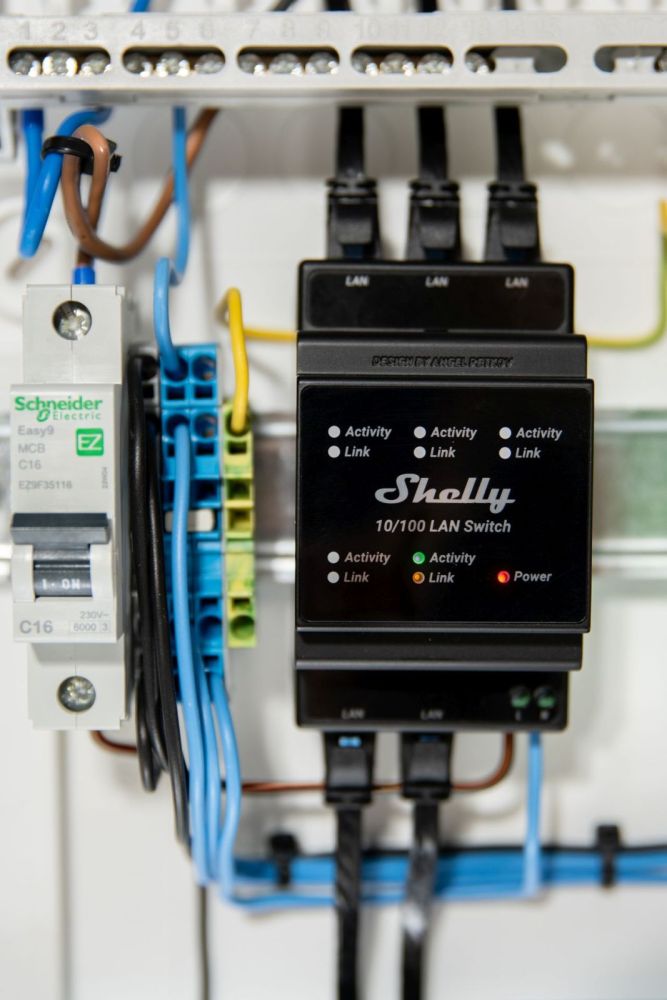

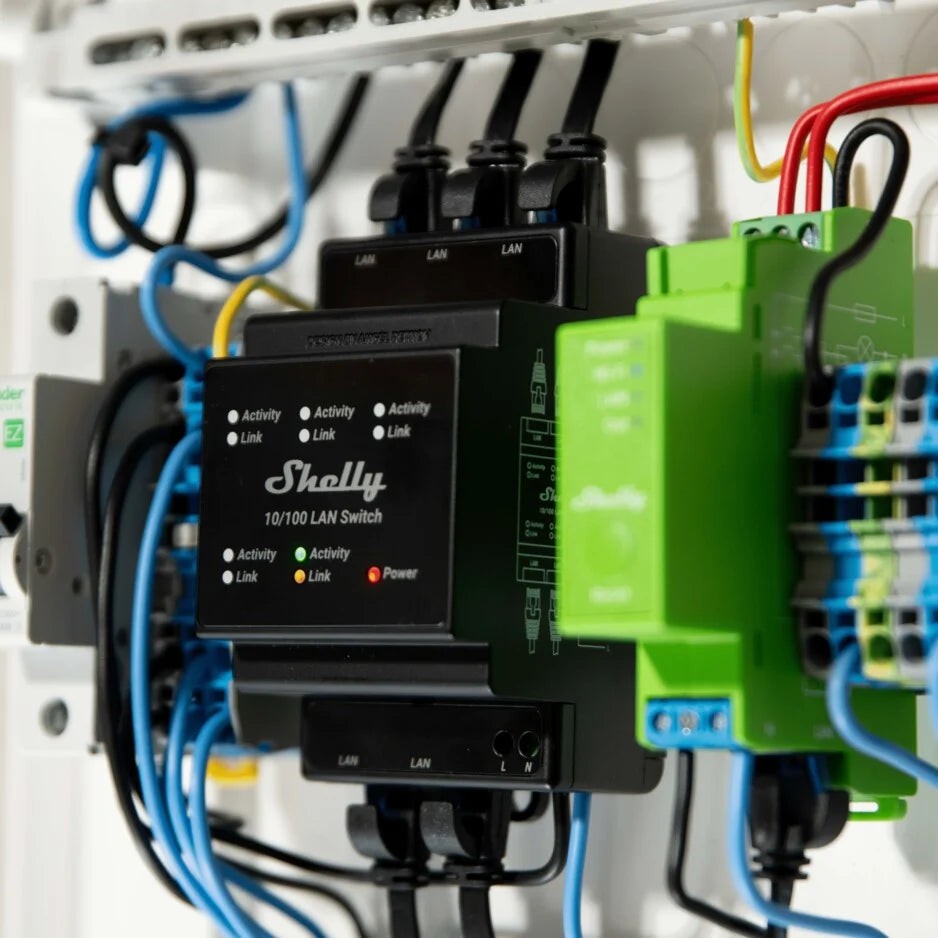

The Shelly LAN Switch offers a simple solution for a reliable connection without the need for extensive electrical modifications. Now you only need 1 LAN cable in your fuse box to connect your devices! The shape is the same as the Pro-Line devices and ensures it fits perfectly into a fuse box occupied by Shelly devices, simplifying installation and keeping your setup organized.
DIN-mountable
Designed to meet the global DIN rail standard and fit perfectly with all your Pro Relays
AC Powered
Supply 110-230V to the device, eliminating the need for adapters
Plug USE CASES
Stable connection to your important devices
No more worrying about lost connections or interruptions - the Shelly LAN Switch keeps your smart home running smoothly. Designed to integrate seamlessly with your existing Pro devices, it provides a stable and uninterrupted connection to all your important devices, such as your HVAC system and lighting. For homeowners with PV systems, the Shelly LAN Switch provides a reliable connection for data collection, facilitating precise energy monitoring.
TECHNICAL DATA:Dimensions (HxWxD): 96x53x59 mm / 3.78x2.01x2.32 in Weight: 87 g / 3 oz Screw terminals max torque: 0.4 Nm / 3.5 lbin Conductor cross section: 0.5 to 2.5 mm² / 20 to 14 AWG Conductor stripping length: 6 to 7 mm / 0.24 to 0.28 in Mounting: DIN rail Housing material: Plastic Housing color: Black Working temperature: -20°C to 40°C / -5°F to 105°F Humidity: 30% to 70% RH Max. altitude above sea level: 2000 m / 6562 ft Power supply: 110 - 240 VAC Power consumption: < 1 W External protection: Tripping characteristic B or C, max. 16 A rated current, min. 6 kA breaking capacity, energy limitation class 3

Electrical
Power supply	110 - 240 V~ 50/60 Hz
Power consumption	< 1 W
External protection	Tripping characteristic B or C, , 16A max. rated current, , min. 6 kA interrupting rating, , energy limiting class 3
Environmental
Ambient working temperature	-20 °C to 40 °C / -5 °F to 105 °F
Humidity	30 % to 70 % RH
Max. altitude	2000 m / 6562 ft
Functionality
Communication/negotiation mode	Тhe switch is fully capable in auto-negotiation mode as per IEEE 802.3(Half duplex (HDX), Full duplex (FDX), Back pressure, pause, Flow control (IEEE 802.3))
Physical
Size (HxWxD)	96x53x59 mm / 3.78x2.01x2.32 in
Weight	87 g / 3 oz
Screw terminals max torque	0.4 Nm / 3.54 lbin
Conductor cross section	0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length	6 to 7 mm / 0.24 to 0.28 in
Mounting	DIN rail
Shell material	Plastic
Shell color	Black
Connectors color	Green

---
