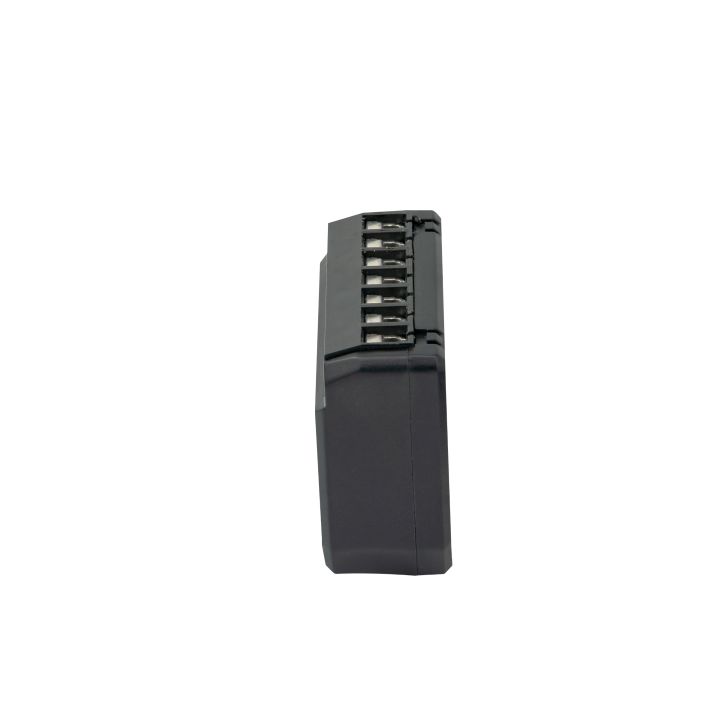

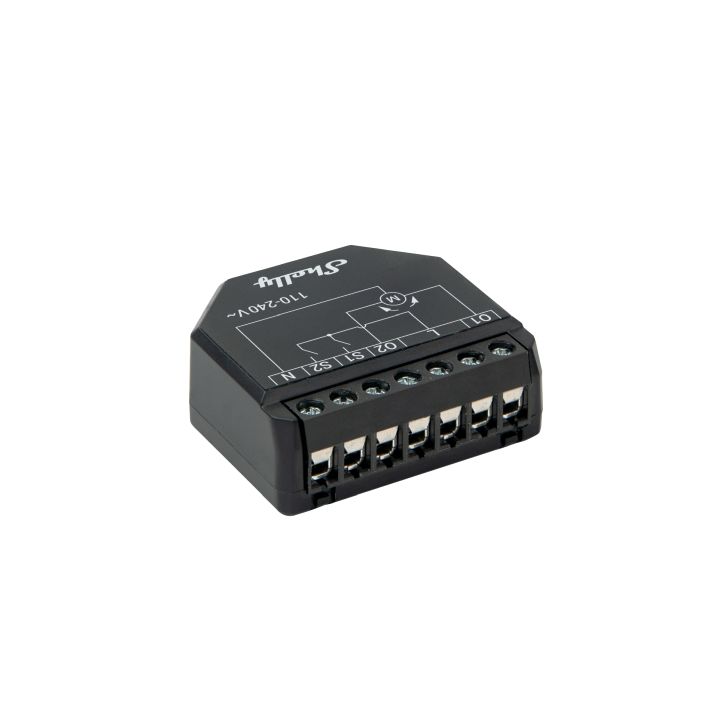

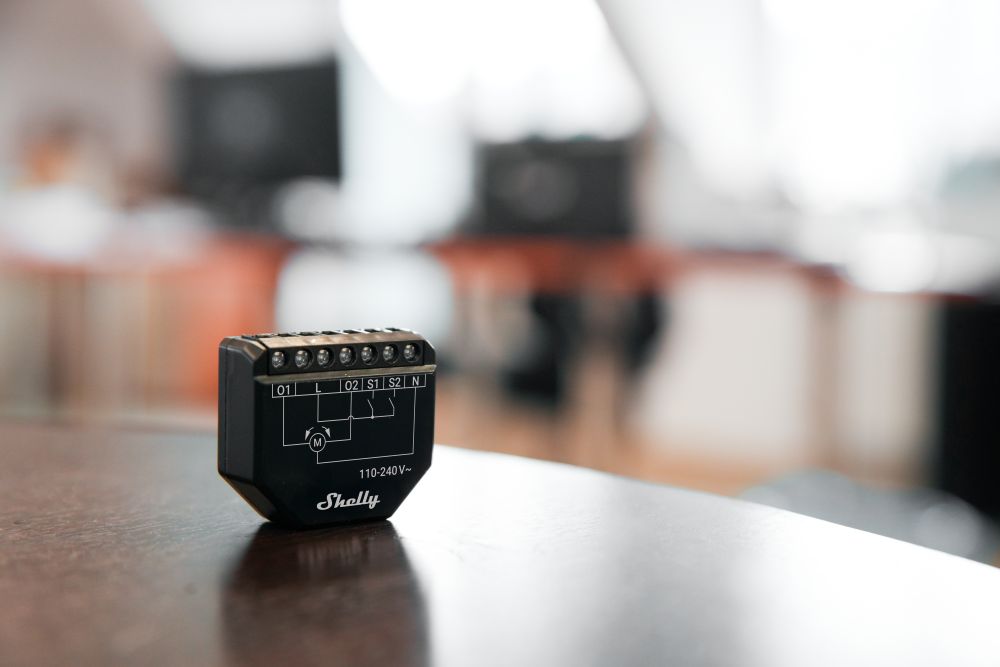

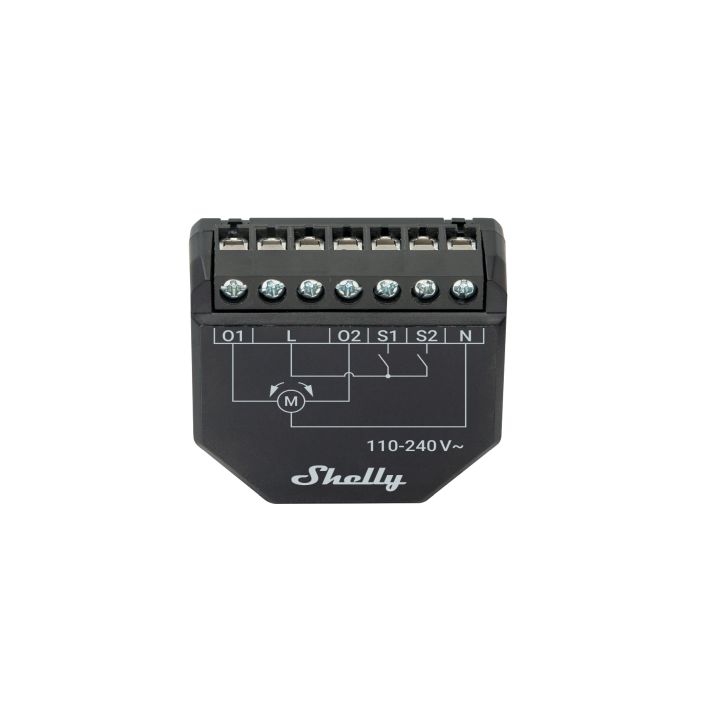

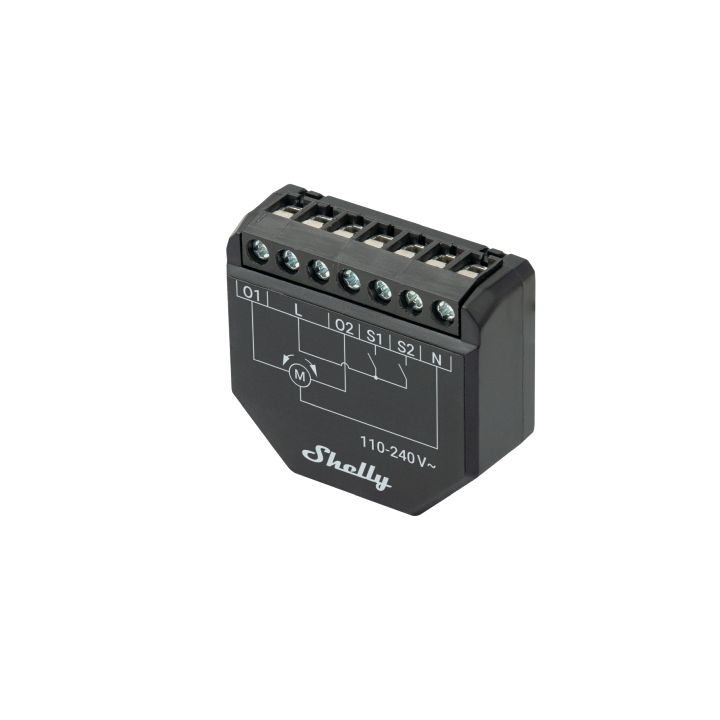

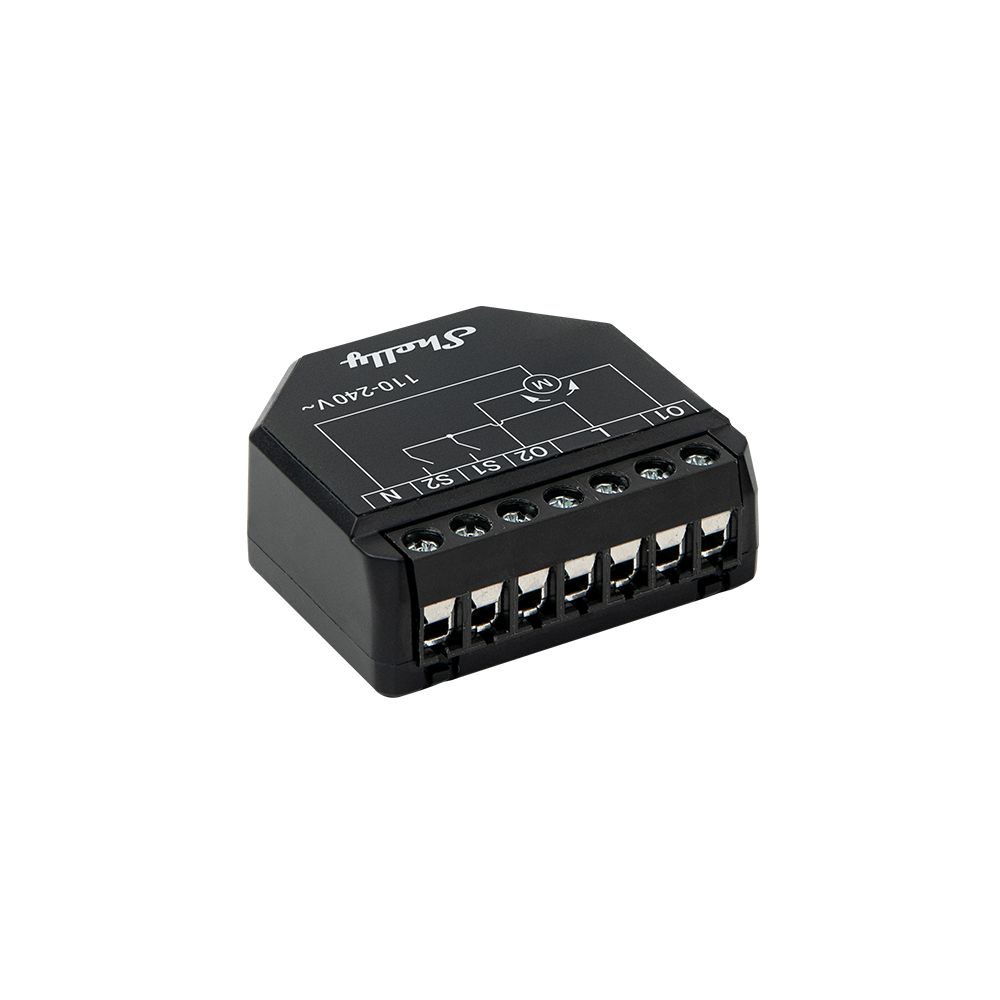

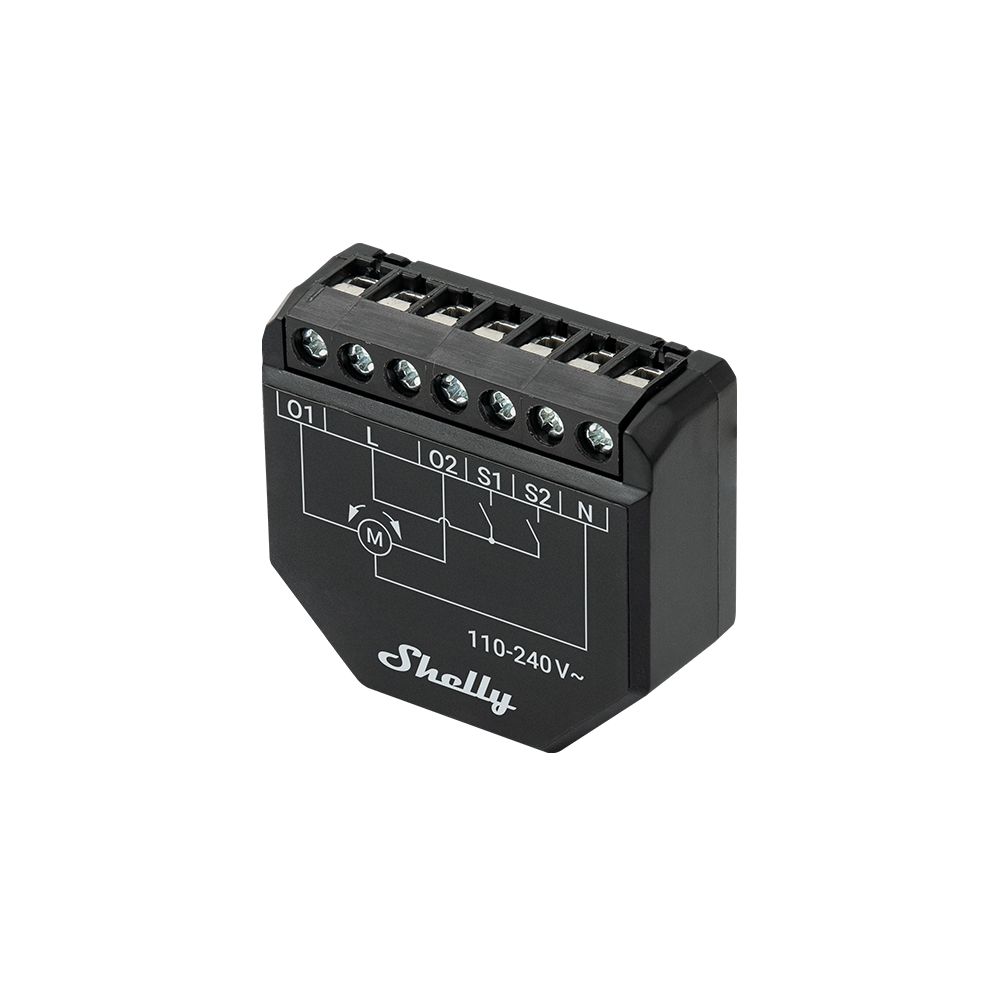

SHELLY Shutter WLAN Shutter And Blind Controller
|
24,64 EUR |
|
|
( 29,32 EUR incl. VAT ) ≈ £20.62 | ≈ $27.57 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Lieske Part No.: | 582941 |
|---|---|
| Mfg Part No: | Shelly Shutter |
| UPC/EAN: | 3800238071745 |
| Weight: | 0.083 kg |
Product information for Shelly Shelly_Shutter:
Smartes Steuergerät mit Echtzeit-Leistungsmessung: für Rollläden, Vorhänge, Jalousien und andere bidirektionale Motoren. Steuere Bewegungen, passe den Lamellenwinkel an und erstelle Zeitpläne, die sich nach Deinem Alltag richten. -WLAN- und Bluetooth-Konnektivität -Echtzeit-Leistungsmessung -Smart-Steuerung für Abdeckungen - Funktioniert mit Rollläden, Vorhängen, Jalousien, Markisen, Toren, Poolabdeckungen und anderen bidirektionalen Motoren - für eine komplette Kontrolle über Bewegung und Positionierung -Lamellenwinkelsteuerung für Jalousien -Smarte Zeitpläne - Automatisches Öffnen und Schließen zu vordefinierten Zeiten, je nach Sonnenauf- und -untergang oder mithilfe anderer Automatisierungen -Smarte Szenen - Erstelle komplexe Szenen in Kombination mit anderen Shelly Geräten -Lokale und Cloud-Steuerung -WLAN-Reichweitenverstärker und Bluetooth-Gateway -Unterstützt Scripting, Webhooks, MQTT, WebSocket, HTTPS, UDP, TLS, personalisierte Zertifikate und virtuelle Komponenten -KNXnet/IP-Unterstützung -Kein Hub erforderlich! Einfach steuerbar über die Shelly Smart Control App, verschiedene Smart-Home-Protokolle und Sprachassistenten Häufige Verwendungsarten: -Abdeckungen und Jalousien -Leistungsüberwachung
| Bluetooth | |
| Protocol (Bluetooth) | 4.2 |
| RF band (Bluetooth) | 2402 - 2480 MHz |
| Max. RF power (Bluetooth) | < 4 dBm |
| Range (Bluetooth) | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors , (Depends on local conditions) |
| Electrical | |
| Power supply | 110-240 V~ 50/60 Hz |
| Power consumption | < 1.4 W |
| External protection | Tripping characteristic B or C, , 16A max. rated current, , min. 6 kA interrupting rating, , energy limiting class 3 |
| Environmental | |
| Ambient working temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft |
| Firmware capabilities | |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 5 URLs per hook |
| Scripting | |
| MQTT | |
| Microcontroller unit | |
| CPU | ESP-Shelly-C38F |
| Flash | 8MB |
| Output circuits ratings | |
| Max. switching voltage | 240 V~ |
| Max. switching current AC | 4 A for motors with compensated power factor (inductive loads) |
| Supported motor type | Single-phase AC motors |
| Required limit switches | Electronic or Mechanic |
| Physical | |
| Size (HxWxD) | 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 inch |
| Weight | 30 g / 1.06 oz |
| Screw terminals max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in |

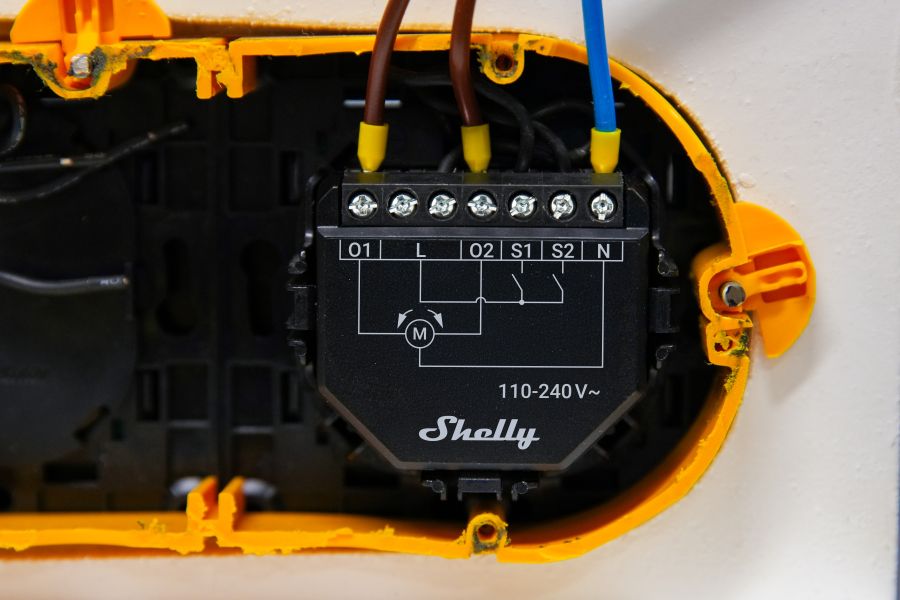

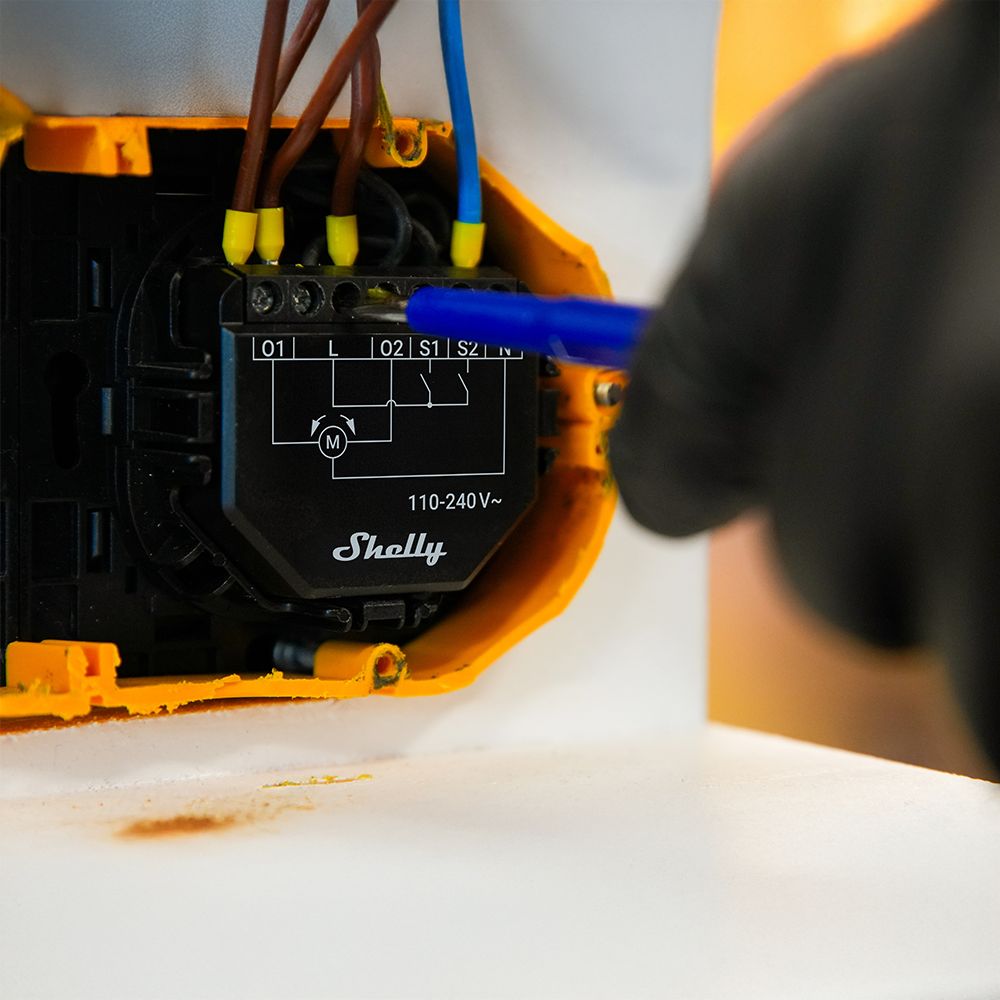

| Mounting | Wall box |
| Shell material | Plastic |
| Shell color | Black |
| Terminals color | Black |
| Sensors, meters | |
| Voltmeter (AC) | |
| Ammeter (AC) | |
| Internal-temperature sensor | |
| Wi-Fi | |
| Protocol | 802.11 b/g/n |
| RF band | 2412 - 2472 МHz |
| Max. RF power | < 20 dBm |
| Range | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors , (Depends on local conditions) |
