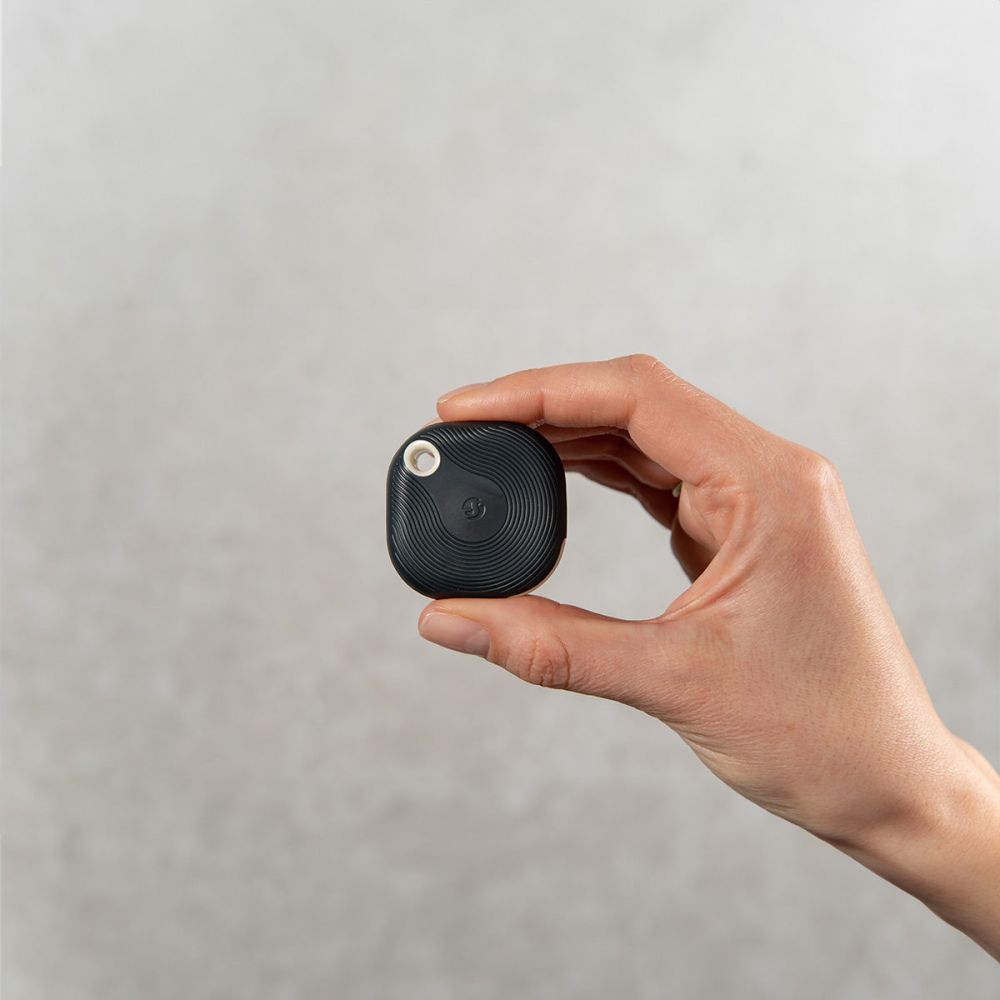

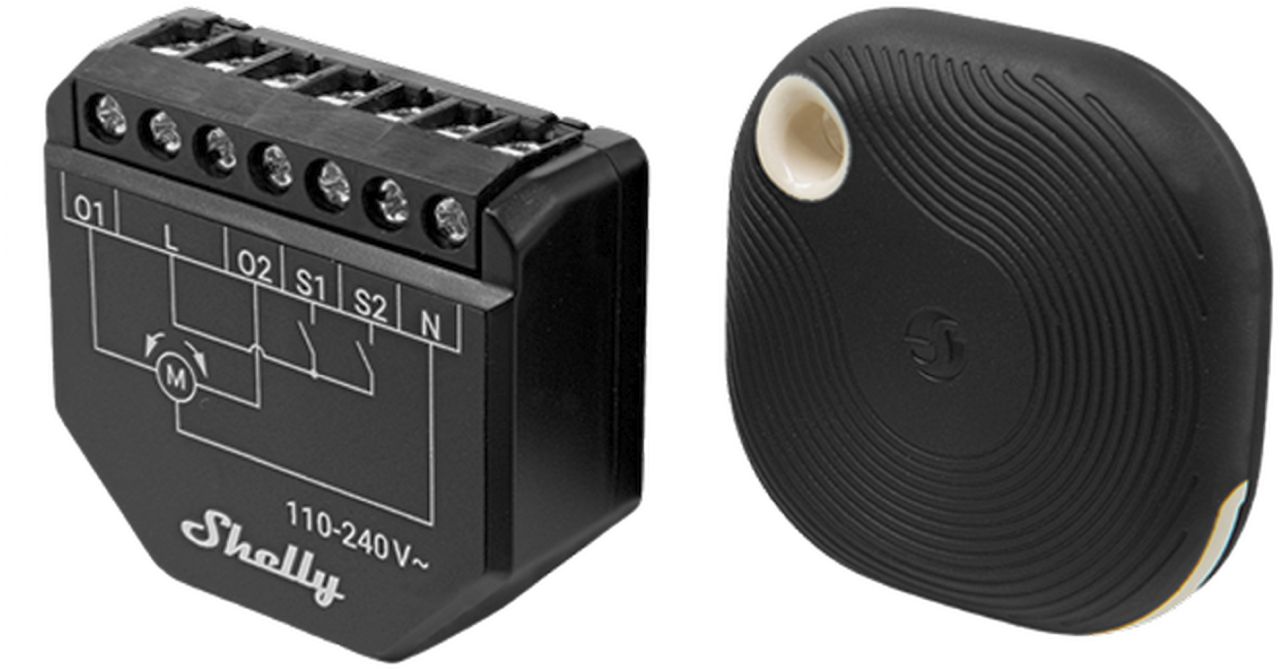

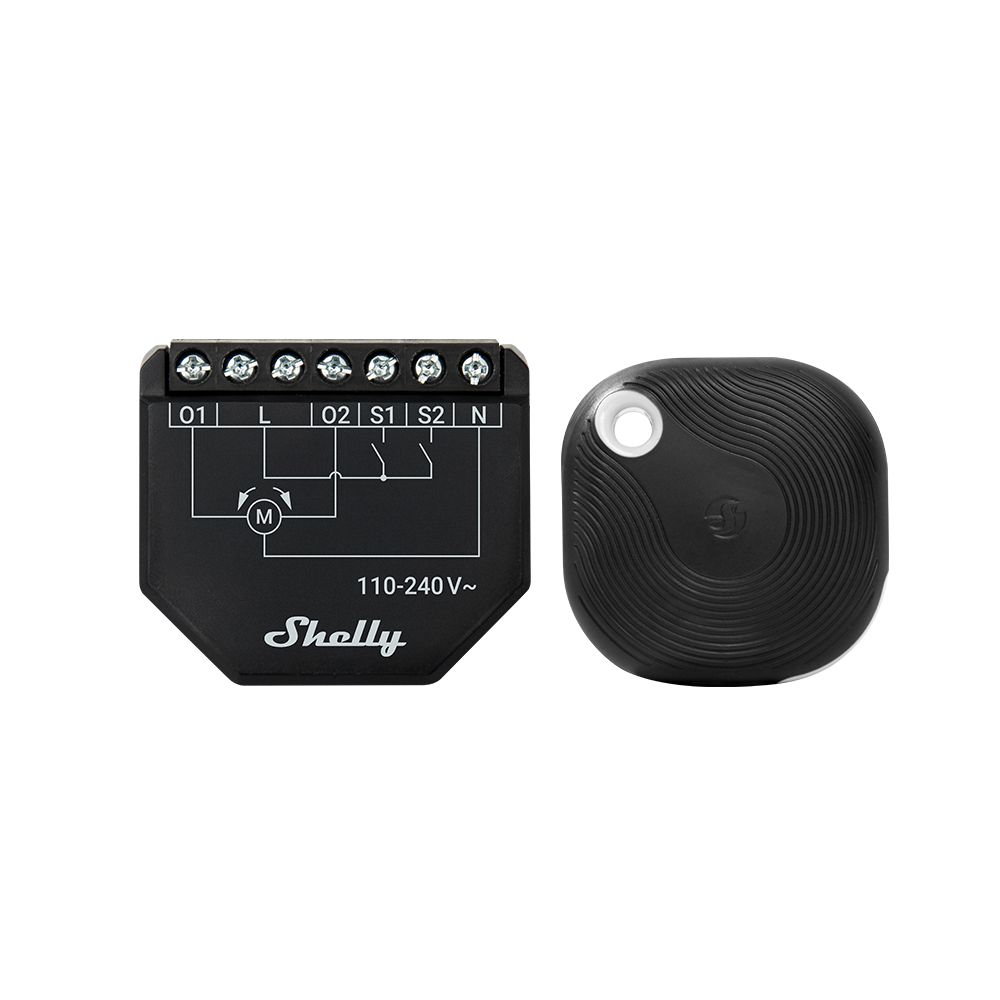

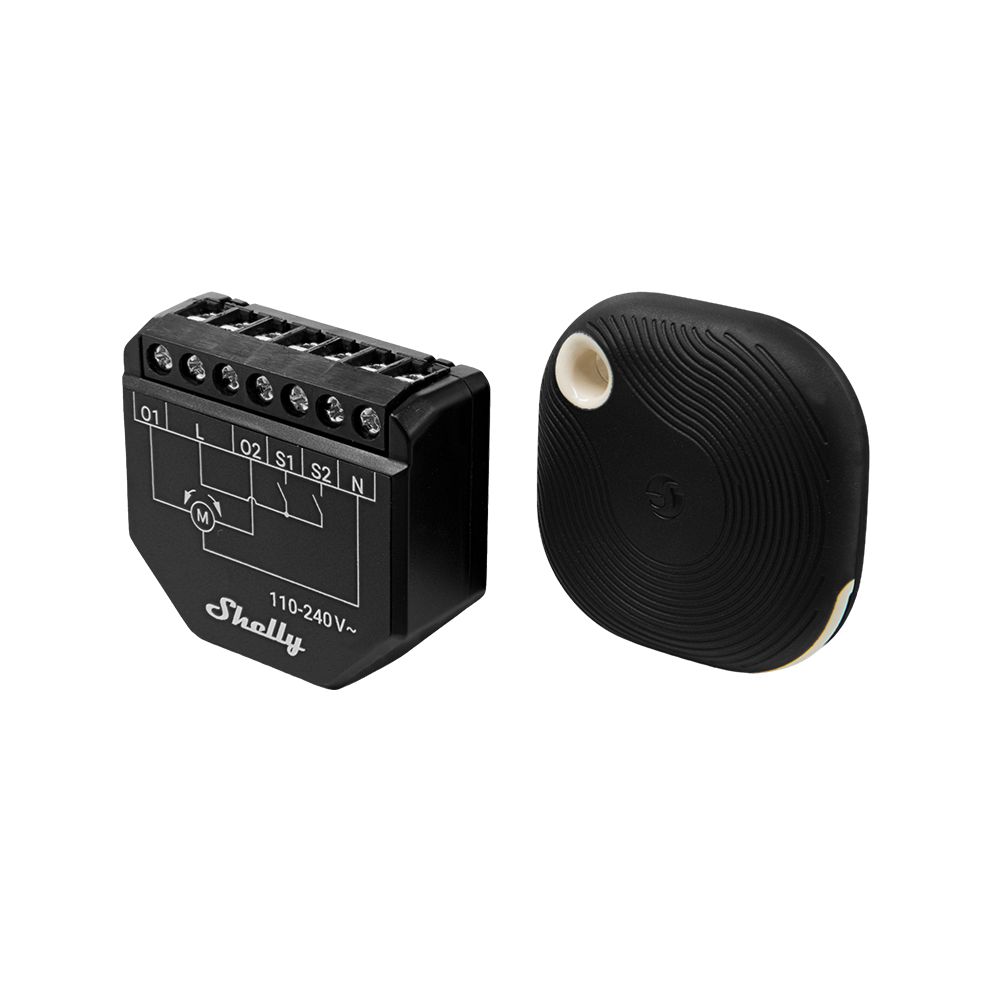

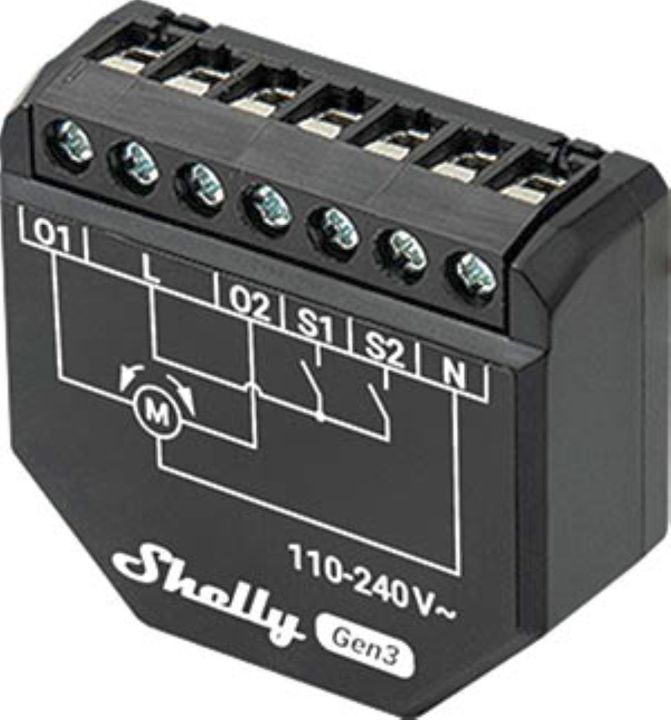

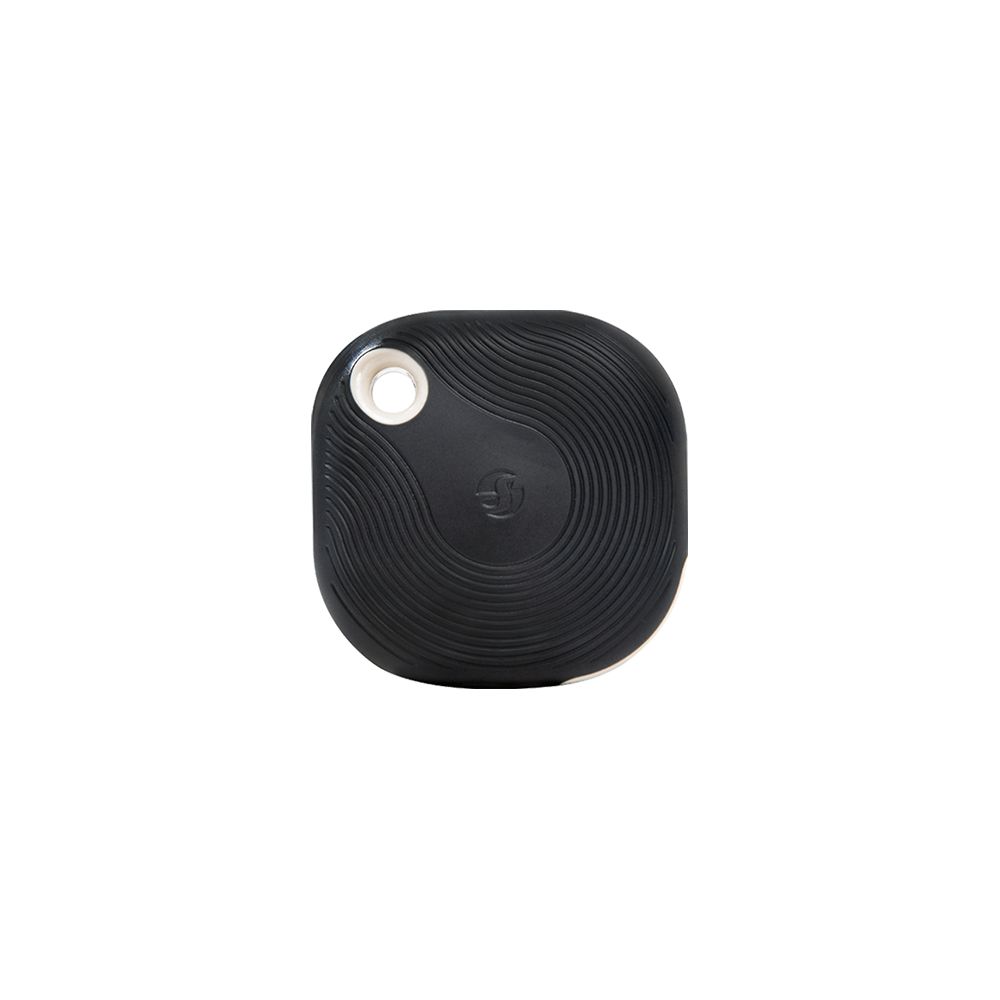

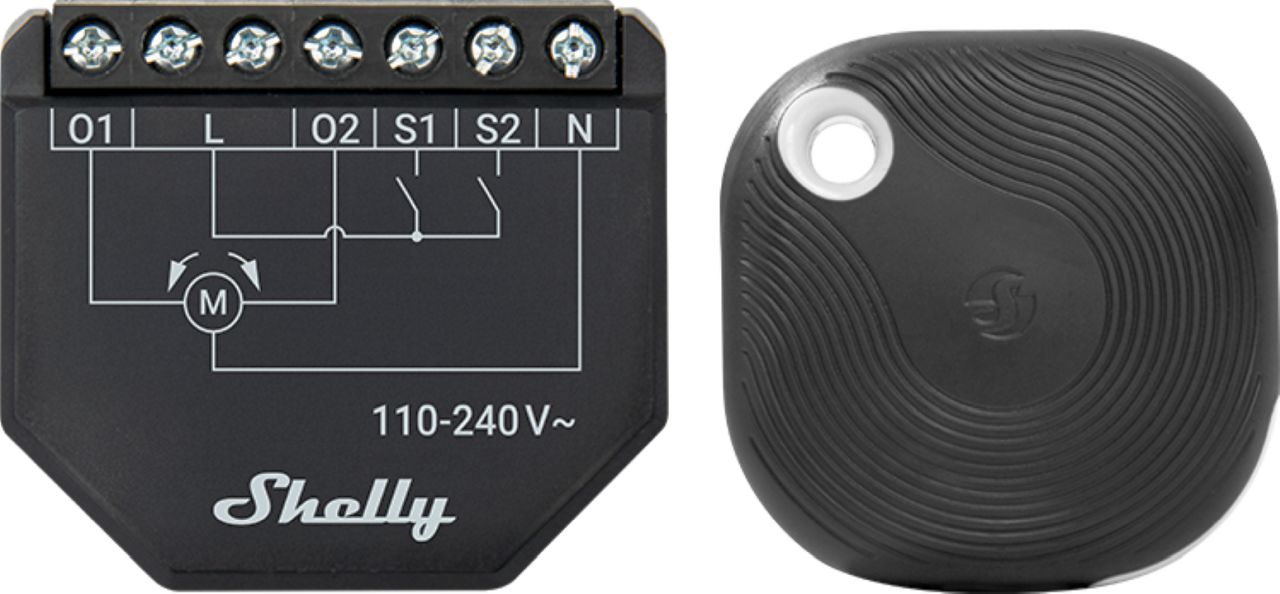

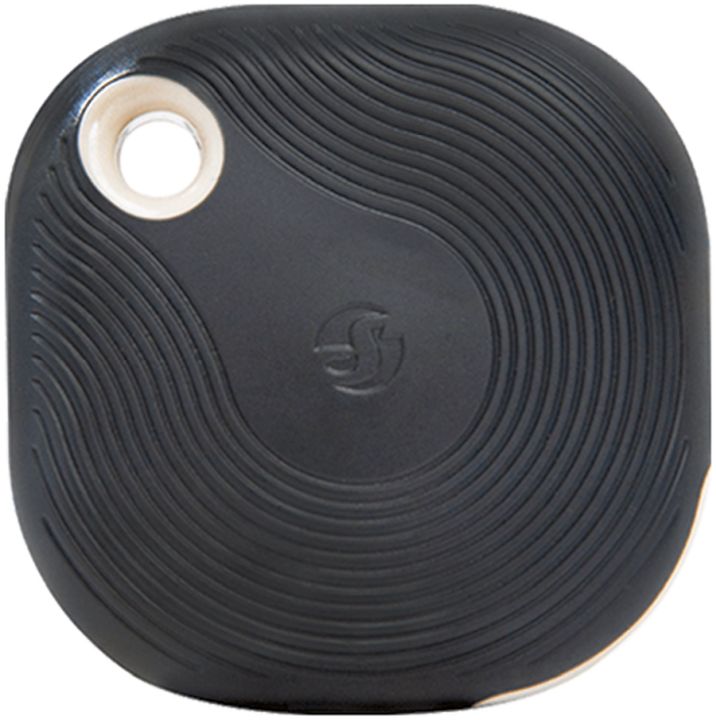

SHELLY Shutter BLU Button Wireless Shutter Control Kit
|
-20% 28,94 EUR 36,10 EUR |
|
|
( 34,44 EUR incl. VAT ) ≈ £24.22 | ≈ $32.38 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Lieske Part No.: | 582946 |
|---|---|
| Mfg Part No: | Shelly Shutter BLU 1 |
| UPC/EAN: | 3800238071752 |
| Weight: | 0.075 kg |
Product information for Shelly Shelly_Shutter_BLU_1:
| Bluetooth | |
| Protocol (Bluetooth) | 4.2 |
| RF band (Bluetooth) | 2402 - 2480 MHz |
| Max. RF power (Bluetooth) | < 4 dBm |
| Range (Bluetooth) | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors , (Depends on local conditions) |
| Electrical | |
| Power supply | 110-240 V~ 50/60 Hz |
| Power consumption | < 1.4 W |
| External protection | Tripping characteristic B or C, , 16A max. rated current, , min. 6 kA interrupting rating, , energy limiting class 3 |
| Environmental | |
| Ambient working temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft |
| Firmware capabilities | |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 5 URLs per hook |
| Scripting | |
| MQTT | |
| Microcontroller unit | |
| CPU | ESP-Shelly-C38F |
| Flash | 8MB |
| Output circuits ratings | |
| Max. switching voltage | 240 V~ |
| Max. switching current AC | 4 A for motors with compensated power factor (inductive loads) |
| Supported motor type | Single-phase AC motors |
| Required limit switches | Electronic or Mechanic |
| Physical | |
| Size (HxWxD) | 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 inch |
| Weight | 30 g / 1.06 oz |
| Screw terminals max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in |

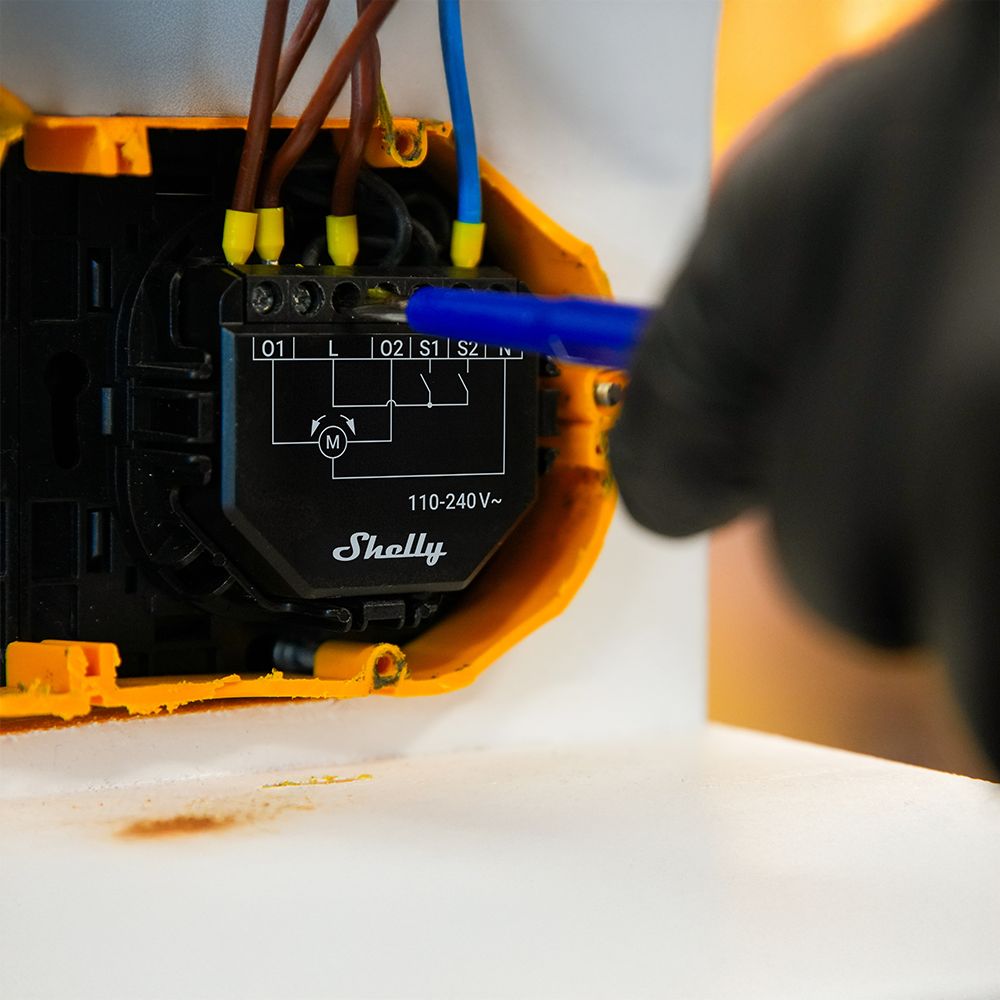

| Mounting | Wall box |
| Shell material | Plastic |
| Shell color | Black |
| Terminals color | Black |
| Sensors, meters | |
| Voltmeter (AC) | |
| Ammeter (AC) | |
| Internal-temperature sensor | |
| Wi-Fi | |
| Protocol | 802.11 b/g/n |
| RF band | 2412 - 2472 МHz |
| Max. RF power | < 20 dBm |
| Range | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors , (Depends on local conditions) |
