Shelly Pro 3EM 120A v2 energy meter incl. 3x 120A terminals, measurement function, WLAN, LAN, BT
|
107,23 EUR |
|
|
( 127,60 EUR incl. VAT ) ≈ £89.75 | ≈ $119.99 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >1000 pieces | |
| Lieske Part No.: | 823567 |
|---|---|
| Mfg Part No: | Shelly Pro 3EM 120A v2 |
| UPC/EAN: | 3800238073862 |
| Weight: | 0.3 kg |
Product information for Shelly Shelly_Pro_3EM_120A_v2:

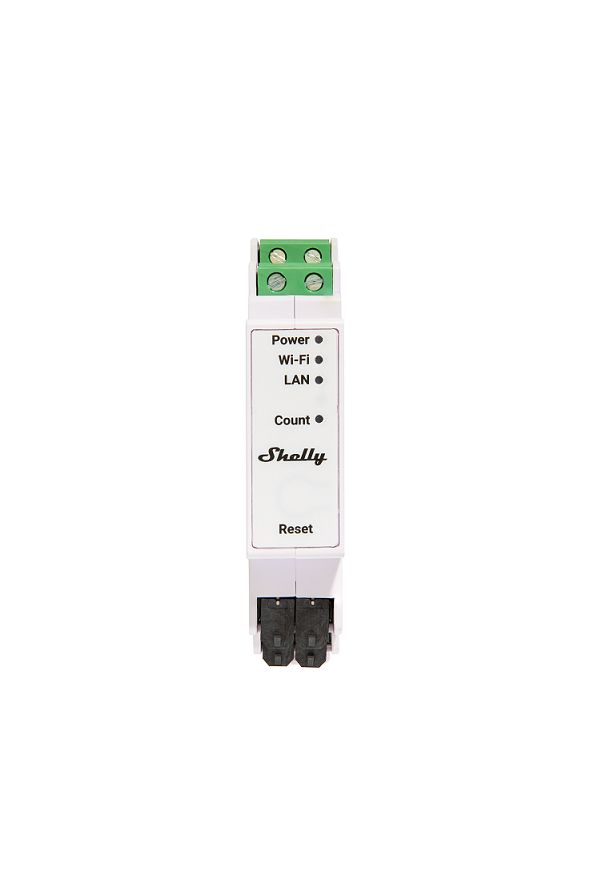

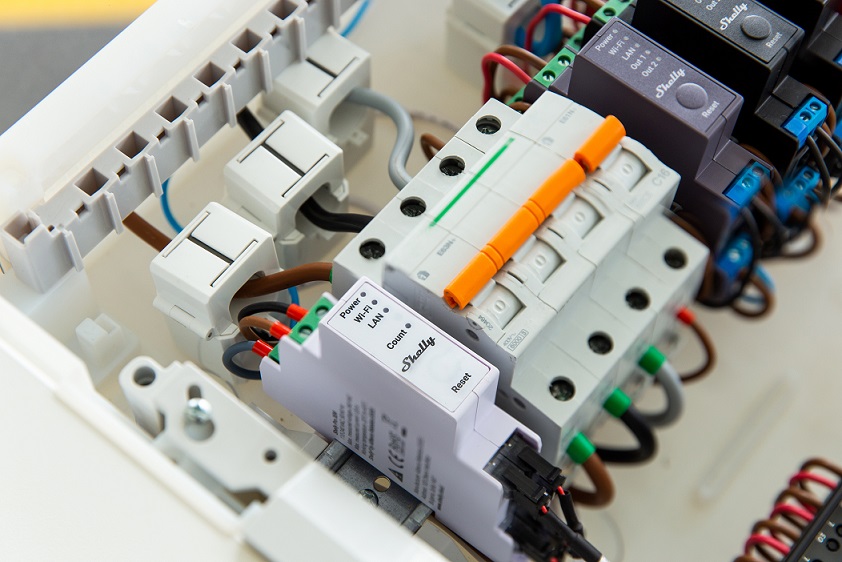

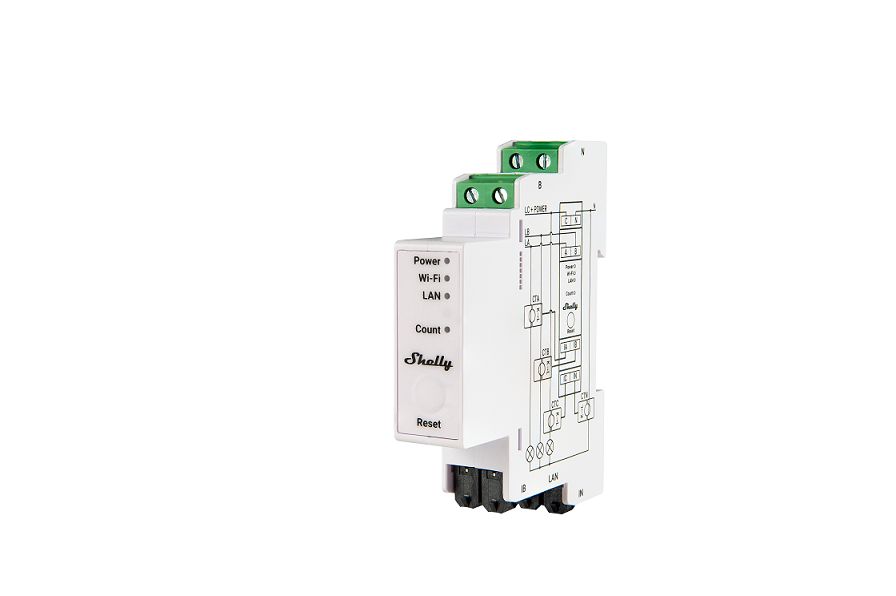

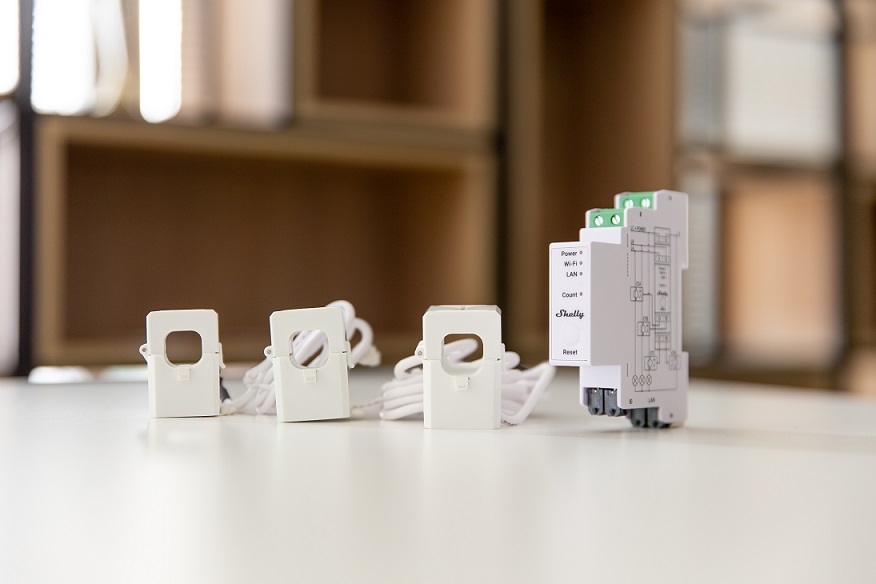

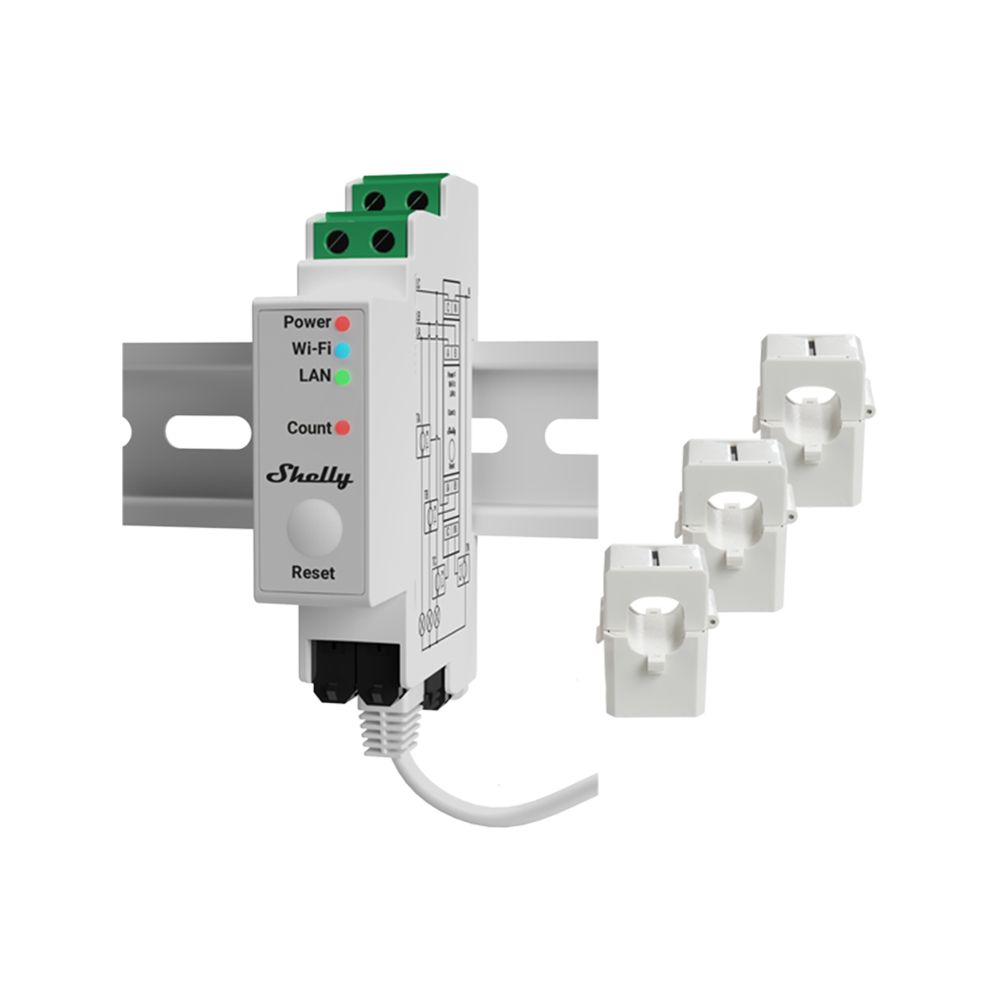

The Shelly Pro 3EM 120A v2 is a DIN-rail mountable 3-phase energy meter with integrated WLAN, Bluetooth, and LAN connectivity, specifically designed for precise measurement of energy consumption and generation in single-phase and three-phase electrical systems. The device enables 4-quadrant measurement, allowing accurate tracking of both consumption and generation (e.g., from photovoltaic systems). With a measurement accuracy of up to 1 % and active energy accuracy class B (compliant with IEC 62053-21, based on manufacturer tests), it represents a reliable standard for professional energy management applications. The Photovoltaic-Ready function makes it ideal for installations with renewable energy sources. An integrated data logging system stores measurement values in non-volatile memory at 1-minute intervals, enabling analysis of up to 60 days of historical data. The optical pulse indicator visualizes energy consumption in real time. The device is supplied with three 120 A current transformers and can measure up to 120 A per phase as well as the neutral conductor. Phase sequence error detection (optional) supports fault diagnosis during installation. Matter-ready compatibility enables future integration into modern, standardized smart home and industrial networks.
| General | |
| Type | Value |
| Electrical | |
| Power supply voltage AC | 100 - 260 V, 50/60 Hz |
| Power supply voltage DC | N/A |
| Power consumption | < 3 W |
| External protection | Tripping characteristic B or C, , 16A max. rated current, , min. 6 kA interrupting rating, , energy limiting class 3 |
| Environmental | |
| Ambient temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Firmware capabilities | |
| Webhooks (URL actions) | 20 with 5 URLs per hook |
| Scripting | |
| MQTT | |
| CoAP | |
| MCU | |
| CPU | ESP32-D0WDQ6 |
| Flash | 16 MB |
| Physical | |
| Size (HxWxD) | 94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in |
| Weight | 62 ±1 g / 2.19 ±0.05 oz |
| Mounting | DIN rail |
| Screw terminals max torque | 0.4 Nm / 4.43 lbin |
| Conductor cross section | 0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded, and bootlace lugs) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in |
| Shell material | Plastic |
| Color | White |
| Radio | |
| RF band | 2400 - 2495 MHz |
| Max. RF power | <20 dBm |
| Wi-Fi protocol | 802.11 b/g/n |
| Wi-Fi Range | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors , (Depends on local conditions) |
| Bluetooth Protocol | 4.2 |
| Bluetooth Range | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors , (Depends on local conditions) |
| Sensors, meters | |
| Voltmeters (RMS for each phase) | 100 - 260 V |
| Voltmeters accuracy | ±1 % |
| Ammeters (RMS via CT for each phase and the Neutral) | 0 - 120 A |
| Compatible CT | CT 120A |
| Ammeters accuracy | ±1 % (2 - 120 A), ±2 % (1 - 2 A), ±5 % (0 - 1 A) |
| Power and energy meters | Active and apparent power Active and apparent energy Power factor Fundamental active and fundamental reactive energy |
| Channel-to-channel calibration minimum load | 500 W per channel |
| No load threshold | 30 VA per channel |
| Measurement data storage | At least 45 days of 1 min data resolution |
| Data export | CSV for PQ recorded values JSON format export through RPC |
| Internal-temperature sensor | |
