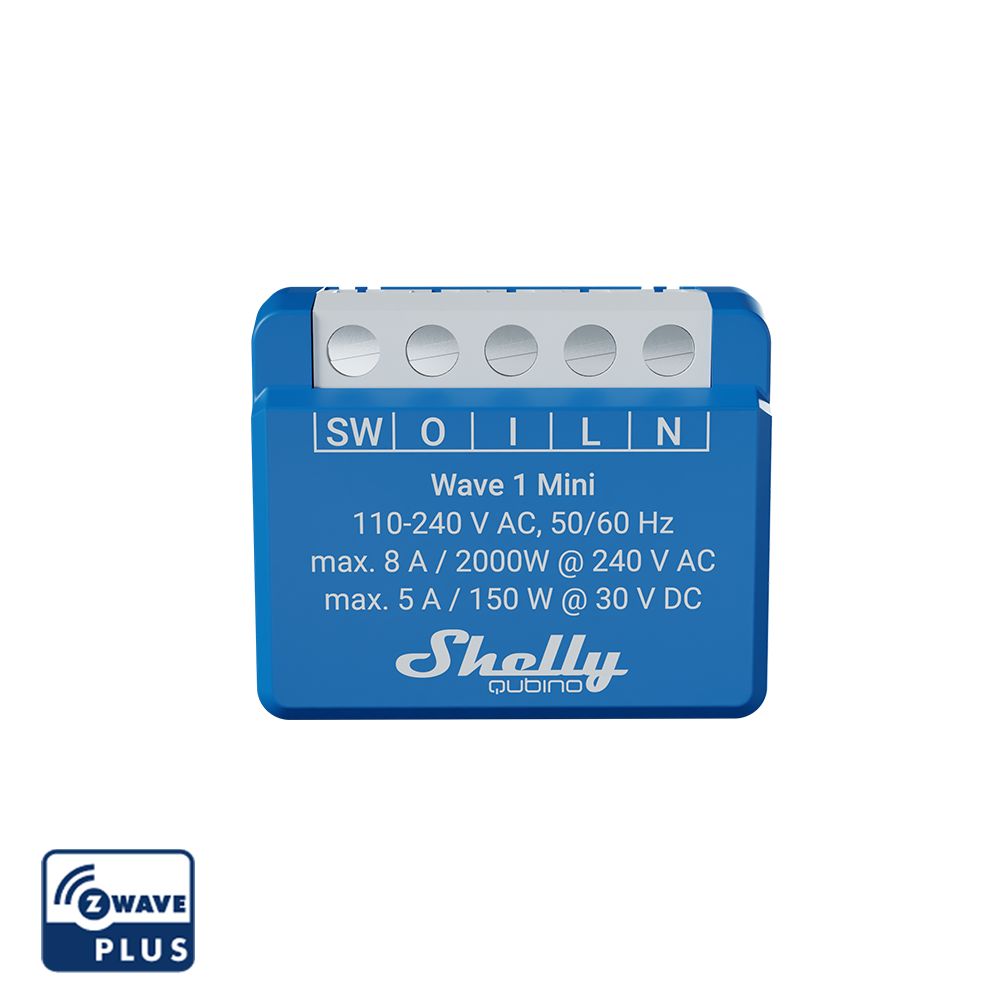

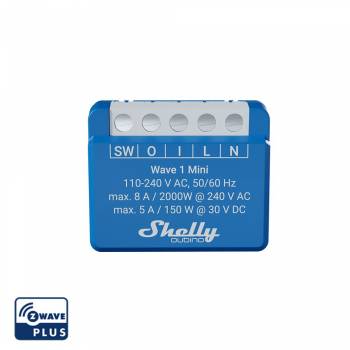

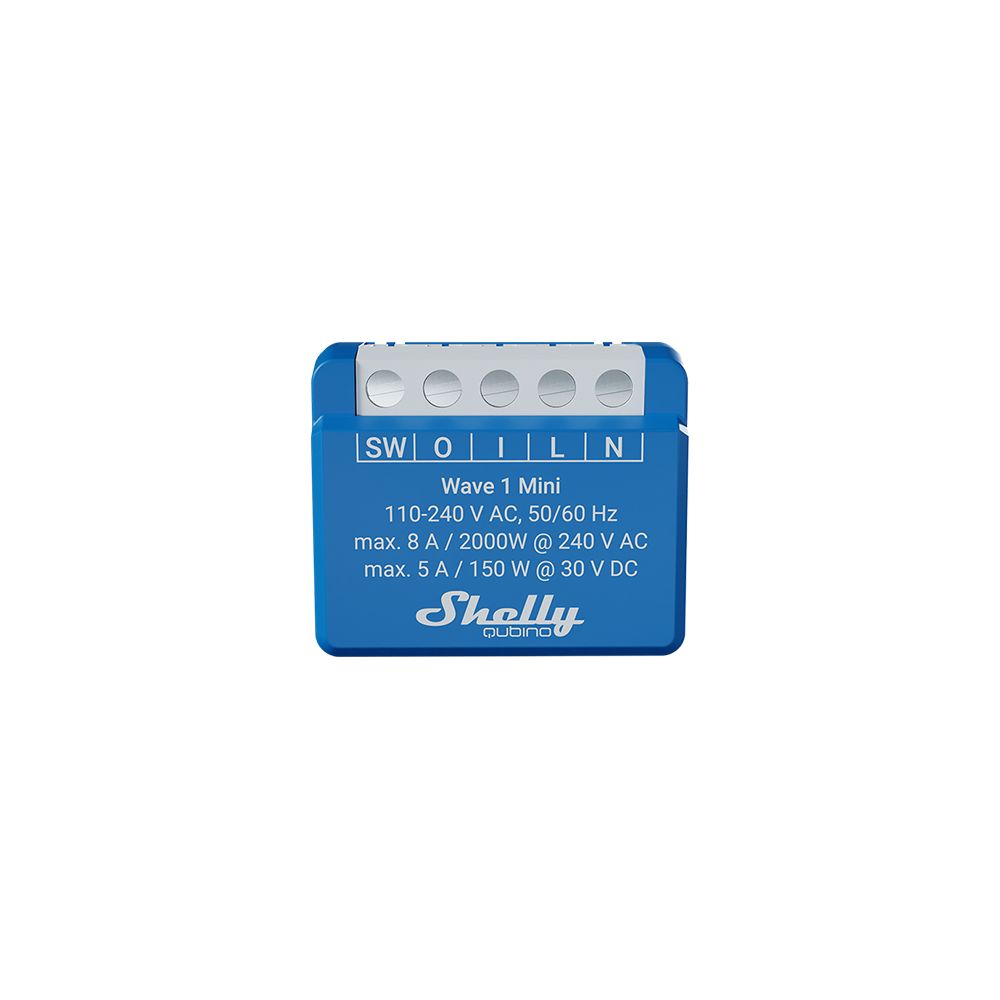

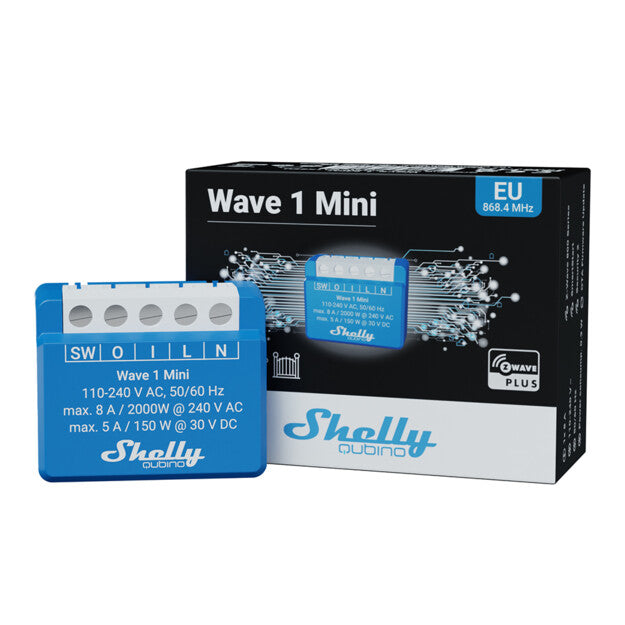

Shelly · Flush-mounted · Wave 1 Mini · Relay · max. A · 1 channel · Z-Wave

Smart Z-Wave® Switch, 1 Channel 8A with Dry Contacts The world's smallest smart Z-Wave switch for intelligent control. Automate and remotely control a variety of small electrical devices such as locks, garage doors, irrigation systems and lights. Due to its compact design, Wave 1 Mini is perfect for even the smallest sockets and/or devices. Supports up to 8A at 240V AC and 5A at 30V DC Dry contacts (potential free) Extremely low power consumption: *A gateway (smart hub) is not included. A gateway (smart hub) is required to configure the device.
WHY WAVE 1 MINI?
Mini size, mini price

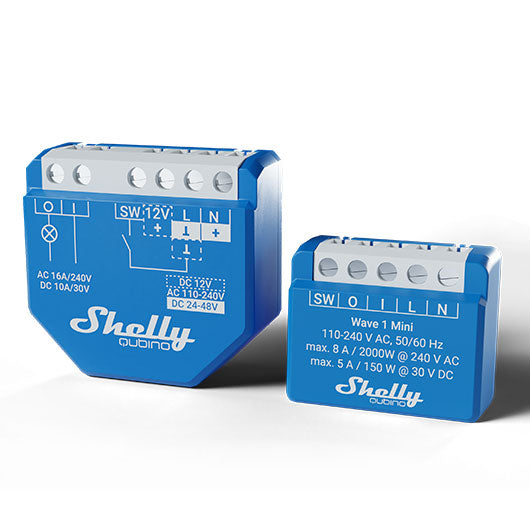

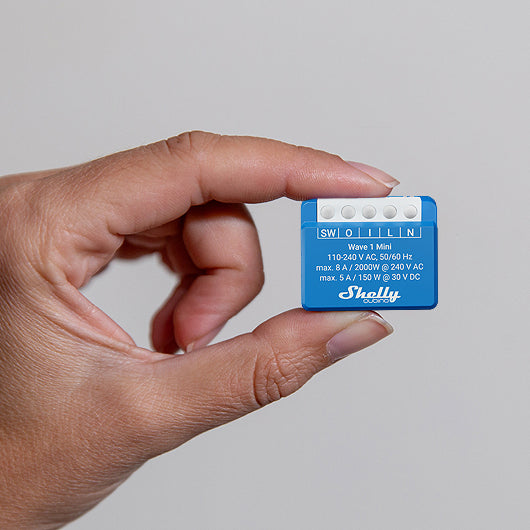

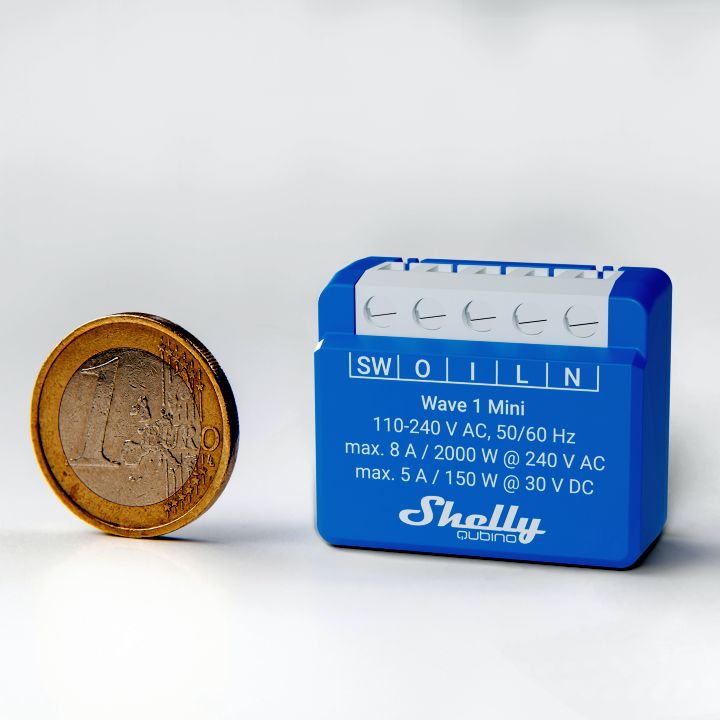

Designed with convenience in mind, these mini relays offer all the capabilities of the Wave 1. The size has been reduced by 35%, making the Wave 1 Mini perfect for tight spaces where traditional relays simply won't fit. Despite their small size, the Wave Mini devices make no compromise in performance or functionality. Shelly Qubino works with Z-Wave By using Z-Wave, smart home products can communicate seamlessly with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly Qubino devices work with the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes worldwide.

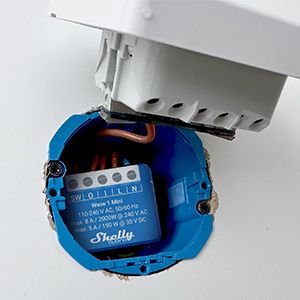

Works with any Z-Wave gateway Devices are designed to fit behind any switch or socket, or can be built directly into the device, instantly turning it into a smart device. After installation, add it to your Z-Wave network (a Z-Wave gateway is required) and control connected devices from anywhere using your smartphone or tablet.
Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways.
WAVE 1 MINI FEATURES
Z-Wave controlled
Add the Wave 1 Mini to your Z-Wave network and control it remotely. It is compatible with all certified Z-Wave gateways.
Dry contacts
Connect various power loads (up to 8A) to the device.
Associations
Set up direct communication between devices in your local Z-Wave network and set custom actions, even without a hub!
Supports a variety of different voltages
Use a wide range of output voltages. Supports low voltages.
Smart schedules
Create personalized schedules to fit your daily routine or sync with sunrise/sunset to control your lights (gateway required).
Smart Scenes
Set custom scenes by combining the Wave 1 Mini with other Z-Wave devices (gateway required).
APPLICATION EXAMPLE
Sync your lights with your daily routine

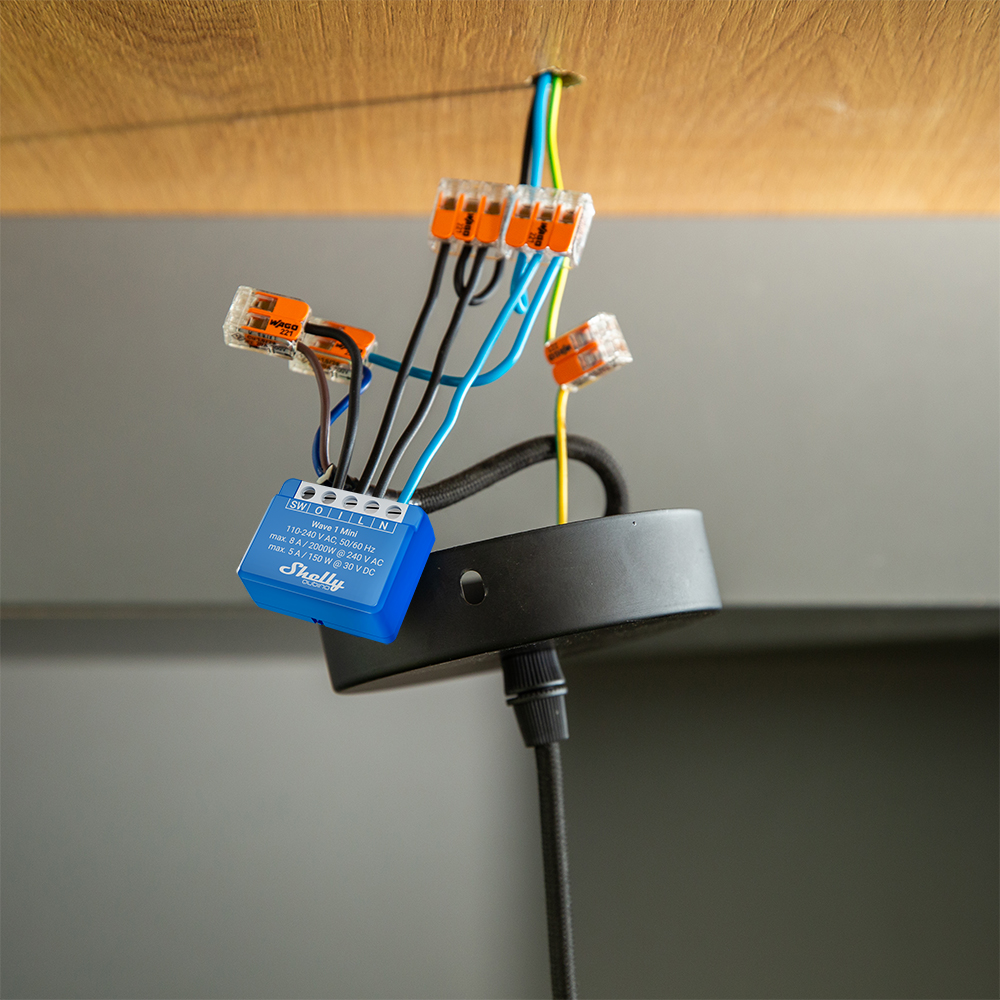

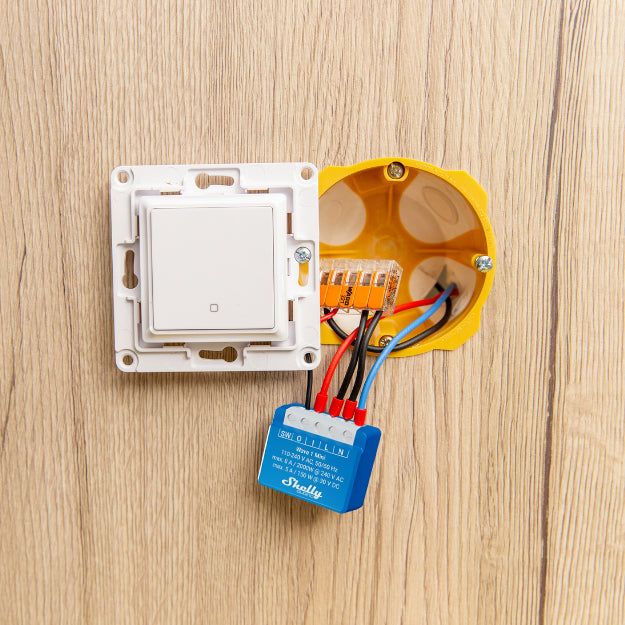

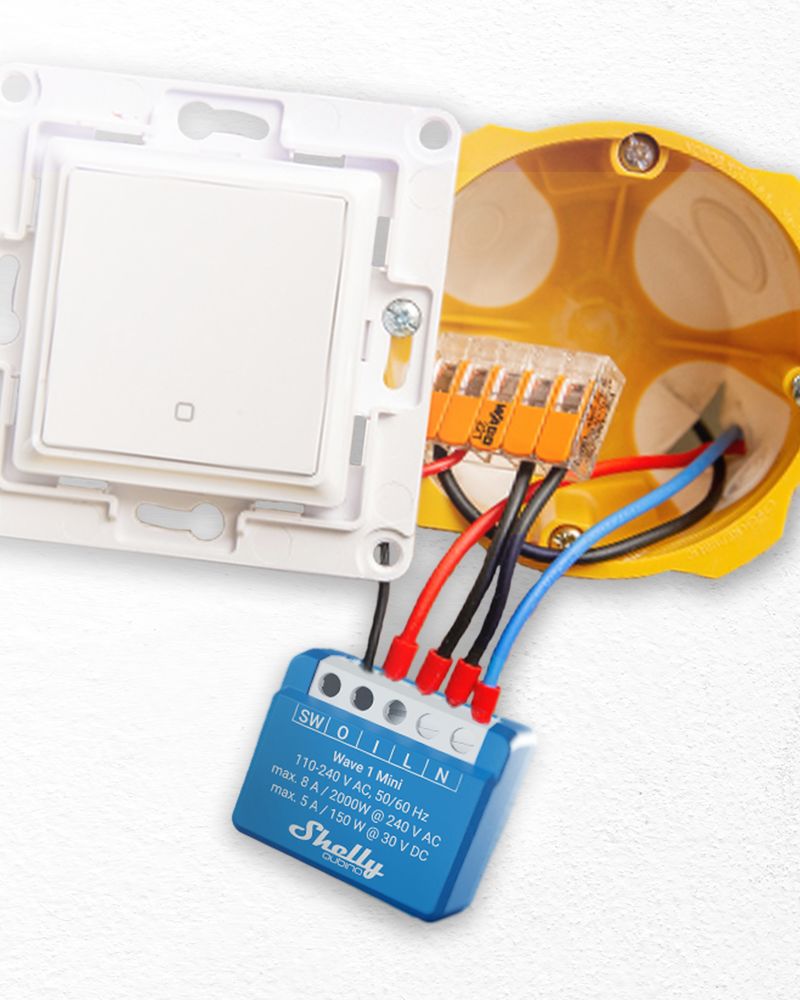

Thanks to its compact size, the Wave 1 Mini can easily be placed behind any light switch or in the lamp's ceiling canopy. Sync your lights with sunset times so the light adjusts to changing light conditions, keeping your home comfortably lit and inviting when you're home. Additionally, you can automate the lights to turn off after your family's bedtime to prevent the lights from being on all night and avoid unnecessary energy consumption.
Make every small electrical device in your home smart
Turn every electrical device in your home, old or new, into a smart device with the Wave 1 Mini. Its 8A limit is perfect for small to medium-sized appliances such as lamps, electric kettles, etc. Place the device in the socket or discreetly inside the device's housing without the need for additional external wiring.
Control your garage door
The compact design of the Wave 1 Mini allows the device to be placed even in very small spaces or installed directly in the garage door operator housing or even near the motor. Its 8A capacity ensures reliable control of the garage door, allowing you to conveniently control the garage door remotely without the need for bulky external modules.
Automate your irrigation system based on the weather
Thanks to the compact shape of the Wave 1 Mini, it can be installed near the irrigation system control panel or inside waterproof housings to ensure protection from the elements. Its 8A capacity is perfect for controlling irrigation valves and allowing effortless watering of your garden with a click of your smartphone, even when you are on vacation. For complete safety, all you have to do is set the schedule and the sprinklers will turn on and off automatically. Yes, it can be that easy.
TECHNICAL DATA: Power supply: 110-240 V AC, 50/60 Hz Power consumption: < 0.3 W Max. switching voltage AC: 240 V Max. switching current AC: 8 A Max. switching voltage DC: 30 V Max. switching current DC: 5 A Overheat protection: Yes Distance: Up to 40 m indoors (131 ft.) (depending on local conditions) Z-Wave® Repeater: Yes CPU: Z-Wave® S800 Z-Wave® frequency bands: 868.4 MHz Maximum transmitted radio frequency power in frequency band(s): < 25 mW Size (H × W × D): 29 x 35 x 16 ±0.5 mm / 1.11 x 1.35 x 0.63 ± 0.02 in Weight: 19 ±1 g / 0.65 ±0.04 oz Mounting: Wall bracket screw terminals Max. torque: 0.4 Nm / 3.54 lbin Conductor cross section: 0.5 to 1.5 mm²/ 20 to 16 AWG Stripped conductor length: 5 to 6 mm/0.20 to 0.24 in Housing material: Plastic Color: Blue Ambient temperature: -20 °C to 40 °C/-5 °F to 105 °F Humidity: 30% to 70% RH Max. altitude: 2000 m / 6562 ft.
