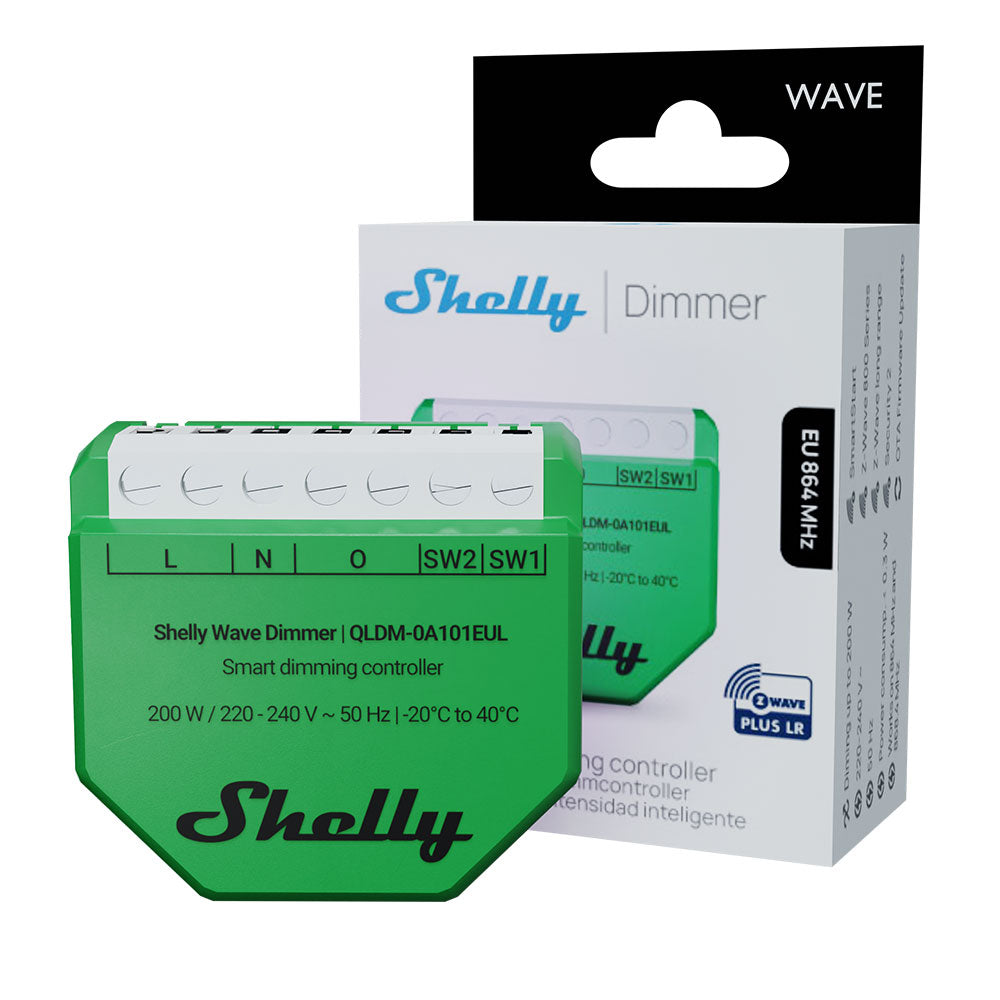

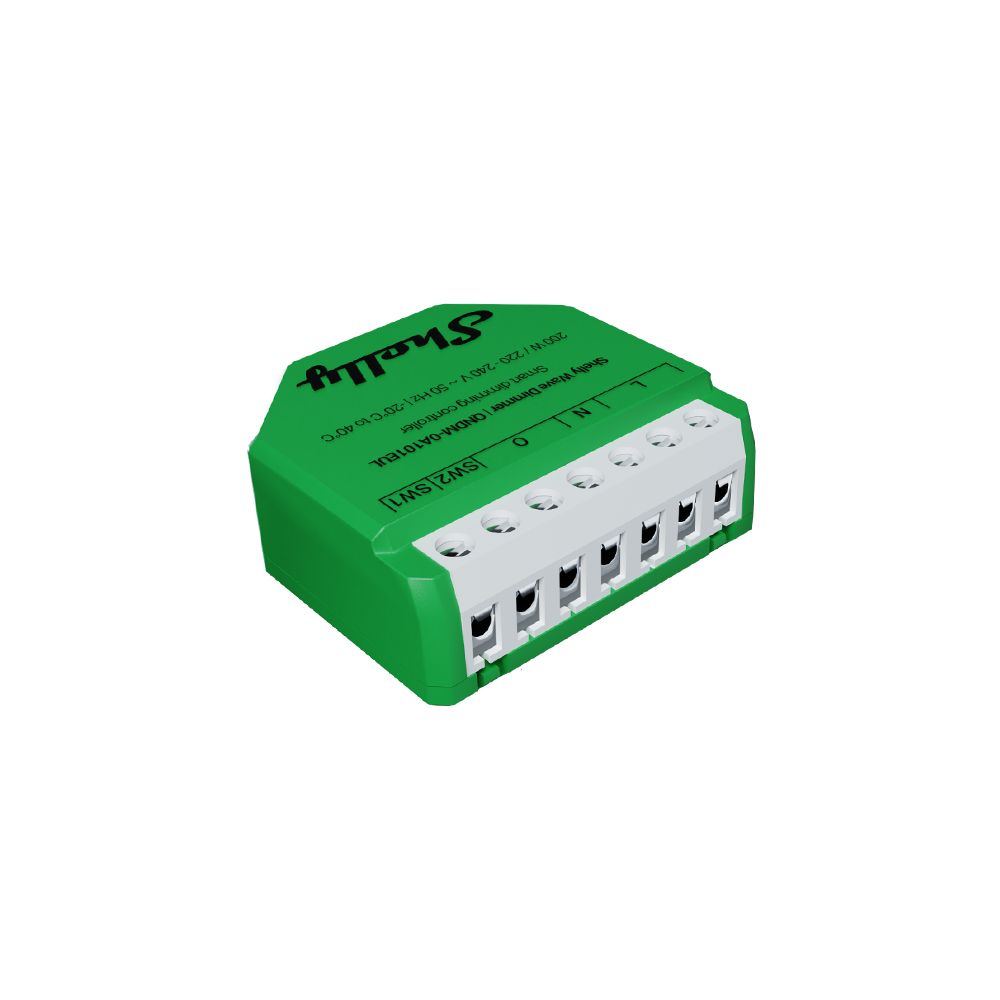

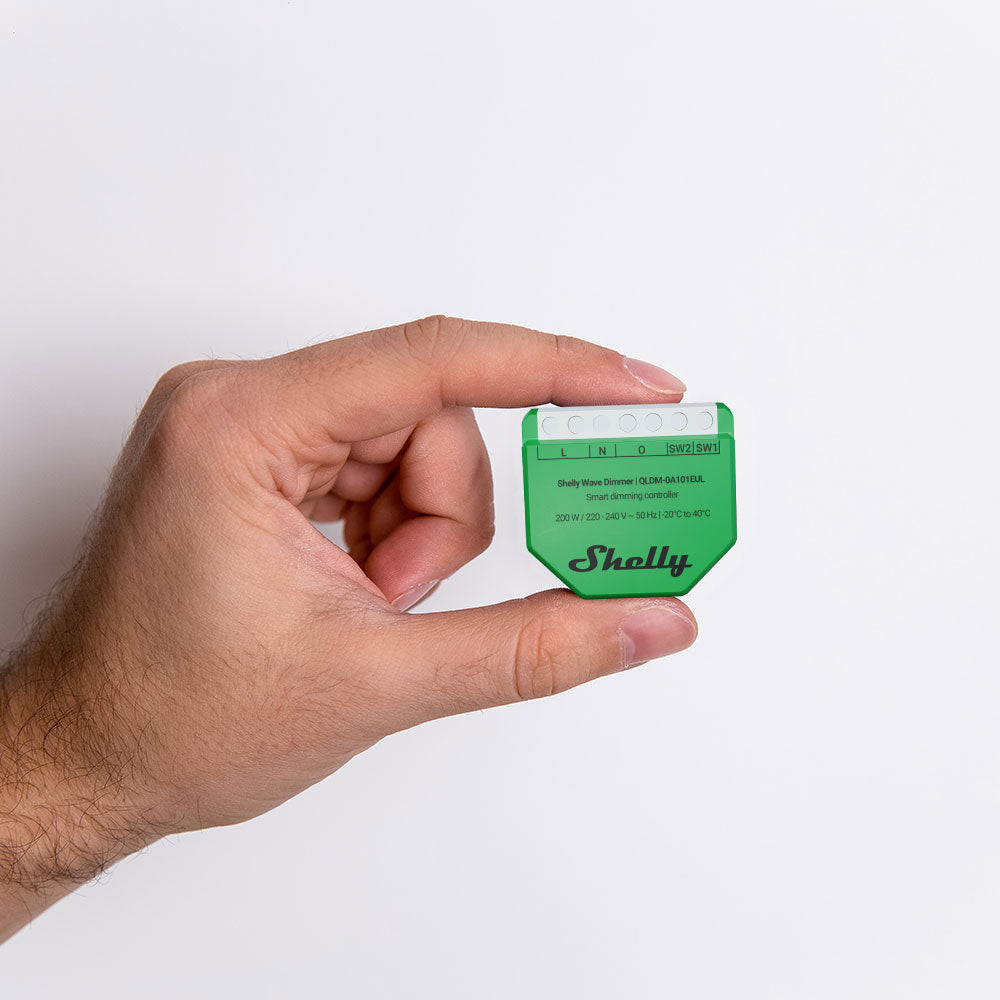

Shelly Shelly_W_D_LR Undercut Wave Dimmer LR Z-Wave
|
-27% 35,27 EUR 48,45 EUR |
|
|
( 41,97 EUR incl. VAT ) ≈ £29.52 | ≈ $39.47 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 226638 |
|---|---|
| Mfg Part No: | Shelly W D LR |
| UPC/EAN: | 3800238071004 |
| Weight: | 0.2 kg |
| General | |
| Power supply | 220-240 V ̴ 50 Hz |
| Power consumption | < 0.3 W |
| Min. load without neutral and without a Bypass | 5W (depends on LED type, in case of flickering use bypass) |
| External protection | 10 A, tripping characteristic B or C, , 6 kA interrupting rating, , Energy limiting class 3 |
| Dimming type | Trailing edge |
| Max. output power | 200 W |
| Z-Wave® frequency bands | 864 MHz |
| Maximum radio frequency power transmitted in frequency band(s) | < 25 mW |
| CPU | Z-Wave® S800 |
| Size (H x W x D) | 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in |
| Weight | 25 g / 0.88 oz. |
| Mounting | In-wall box |
| Screw terminals max. torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in |
| Shell material | Plastic |
| Color | Lime |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft |
| Neutral not needed | |
| Power measurement [W] | |
| Internal-temperature sensor | |
| Overheating protection | |
| Overcurrent protection | |
| Overvoltage protection | |
| Z-Wave® repeater | |
