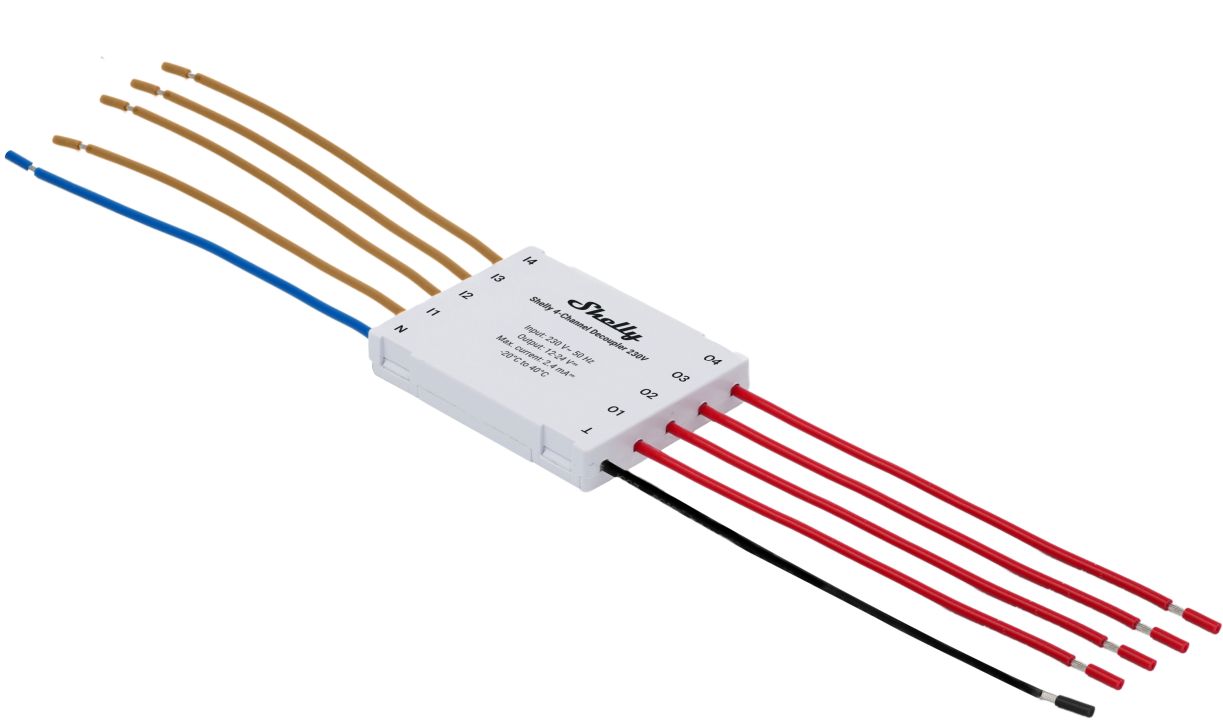

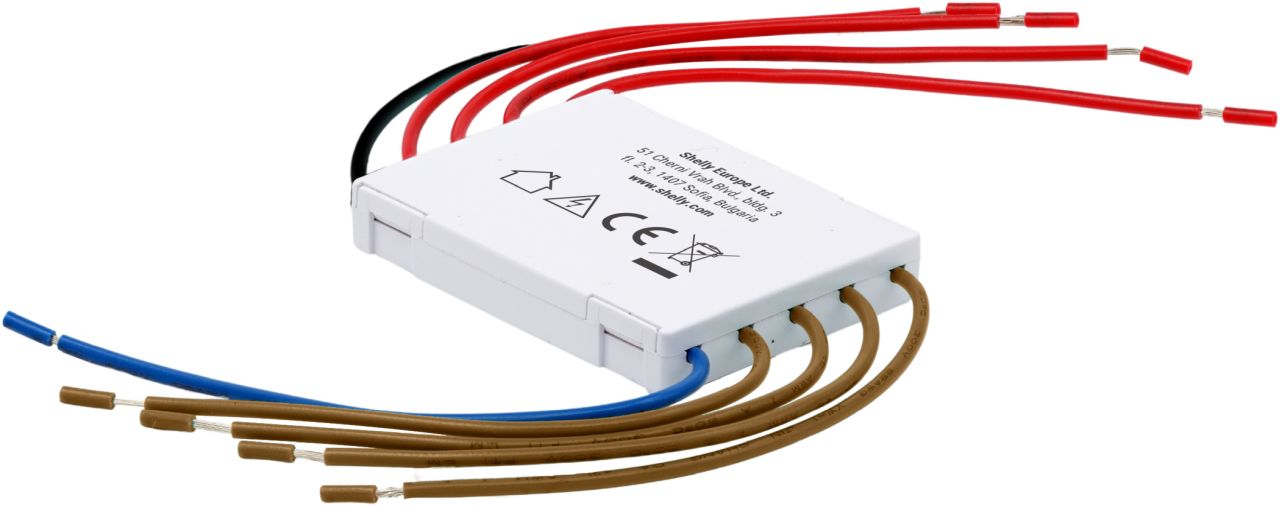

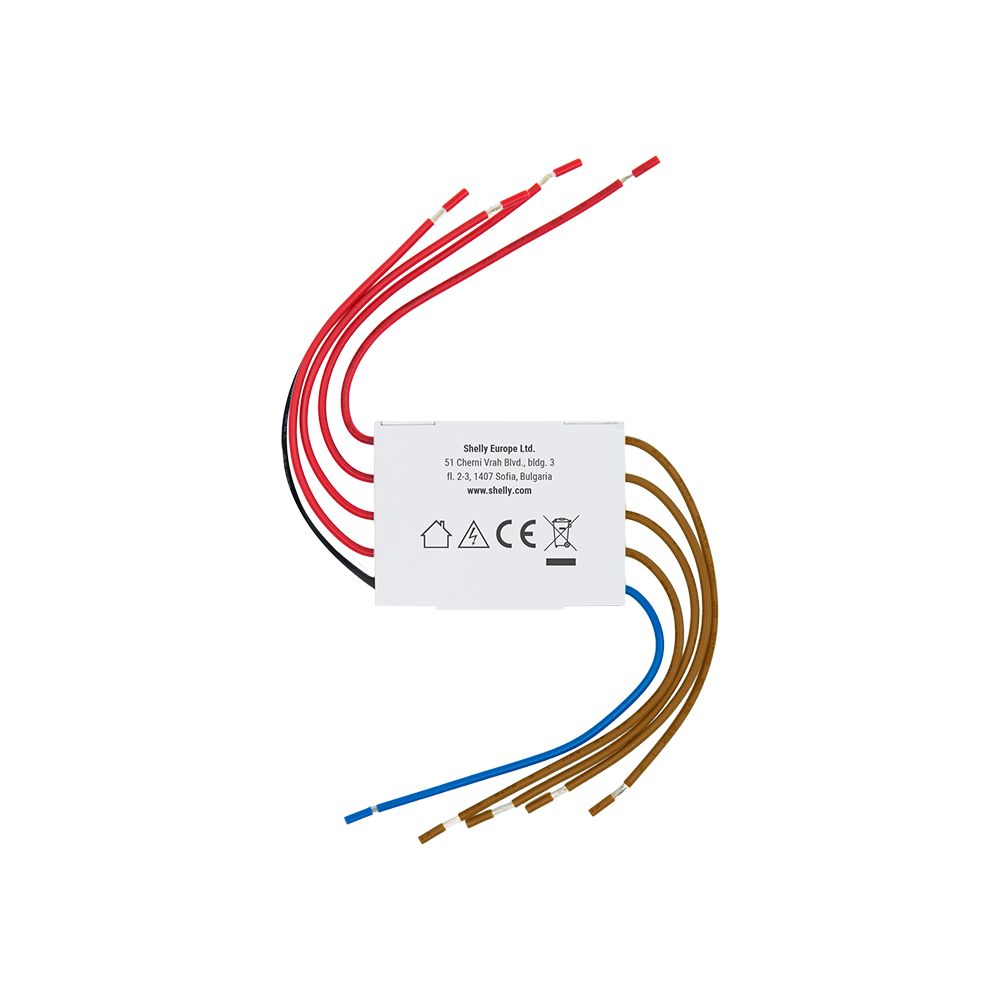

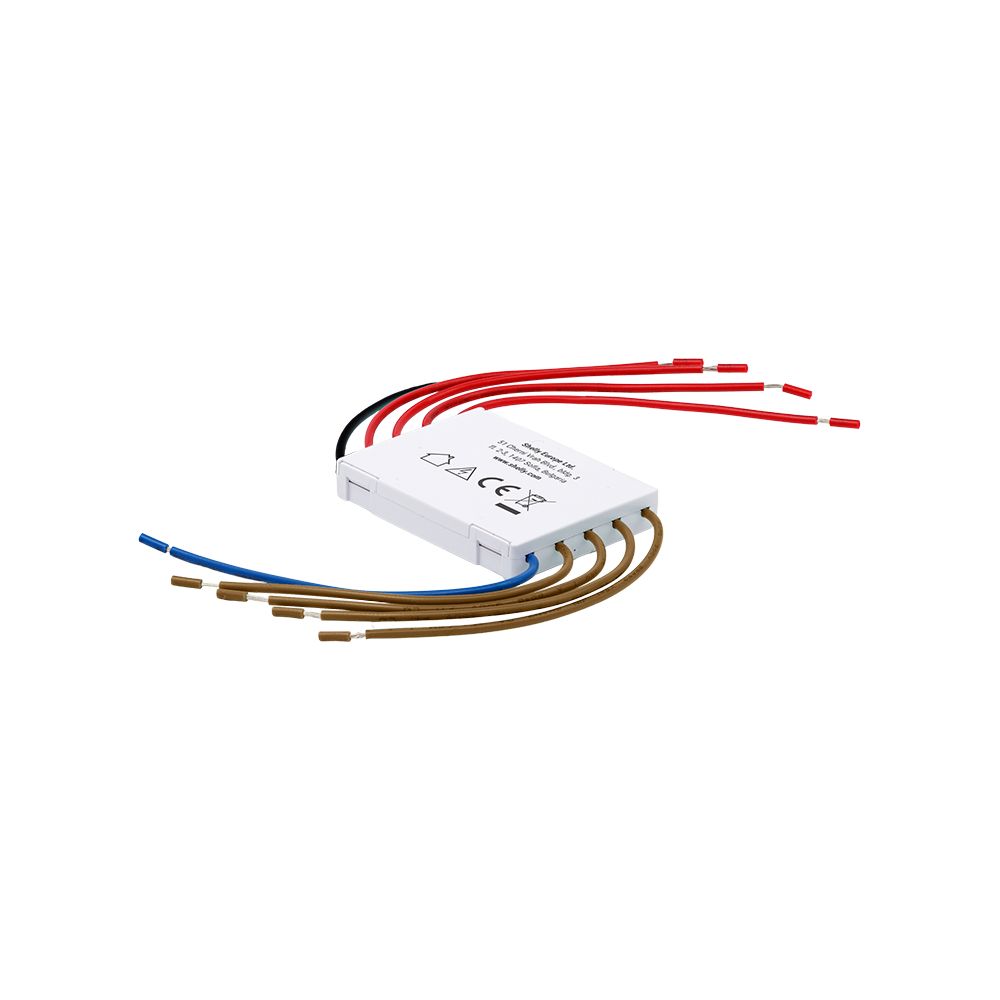

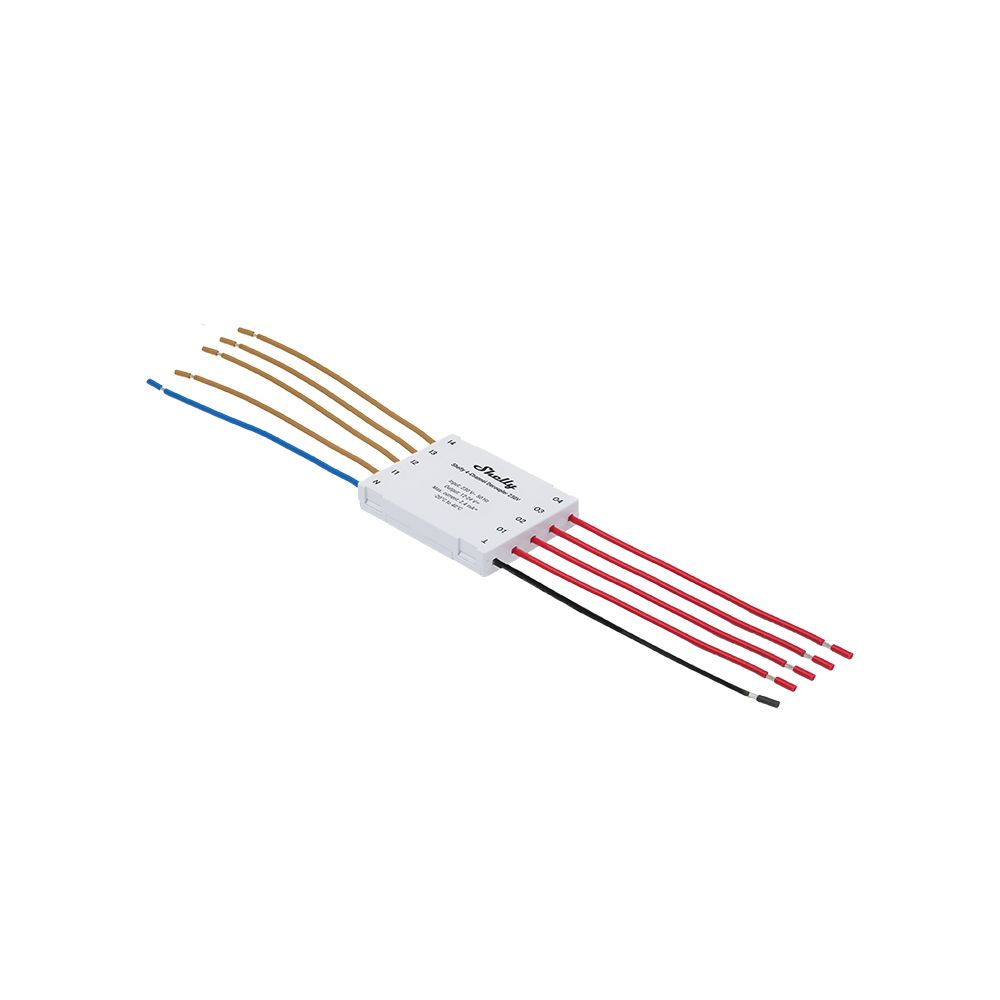

SHELLY 4-Channel Decoupler 230V AC-to-DC Input Decoupler
|
-14% 5,61 EUR 6,51 EUR |
|
|
( 6,68 EUR incl. VAT ) ≈ £4.74 | ≈ $6.27 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Lieske Part No.: | 226100 |
|---|---|
| Mfg Part No: | Shelly 4CD |
| UPC/EAN: | 3800238072124 |
| Weight: | 0.025 kg |
Product information for Shelly Shelly_4CD:

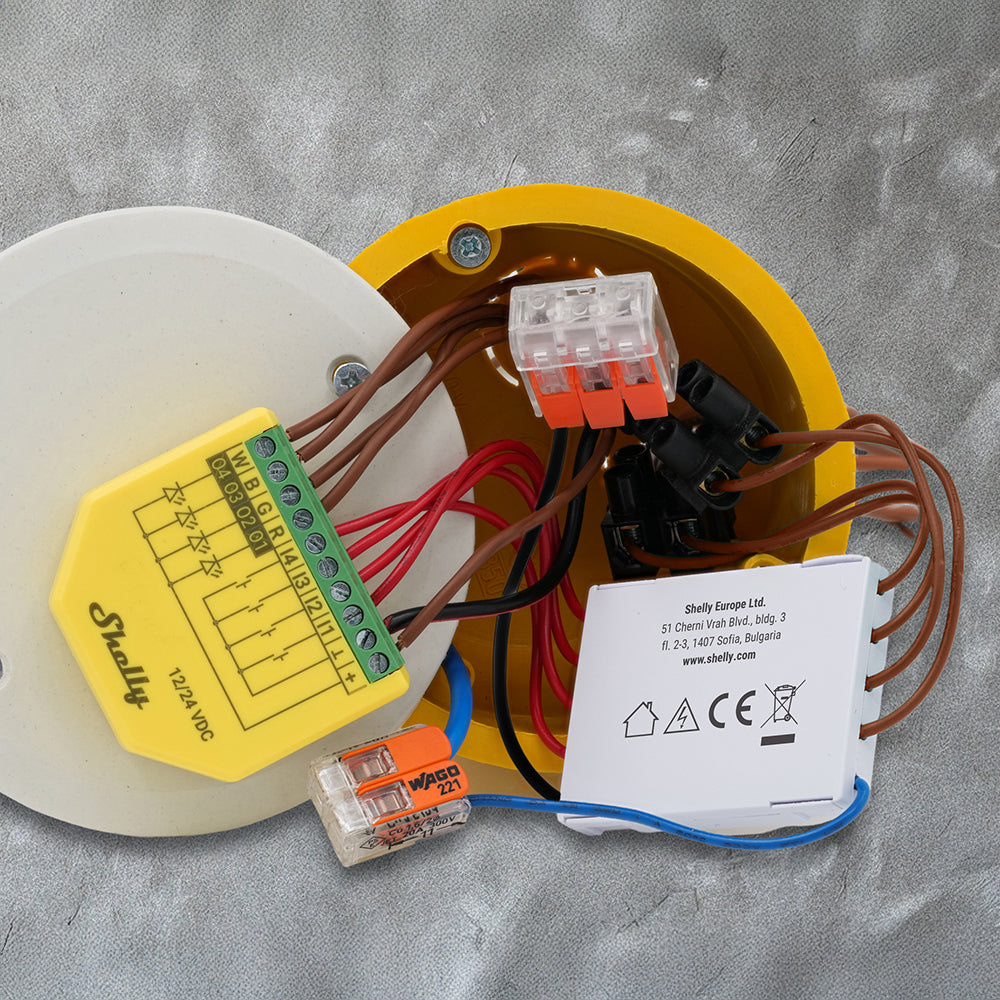

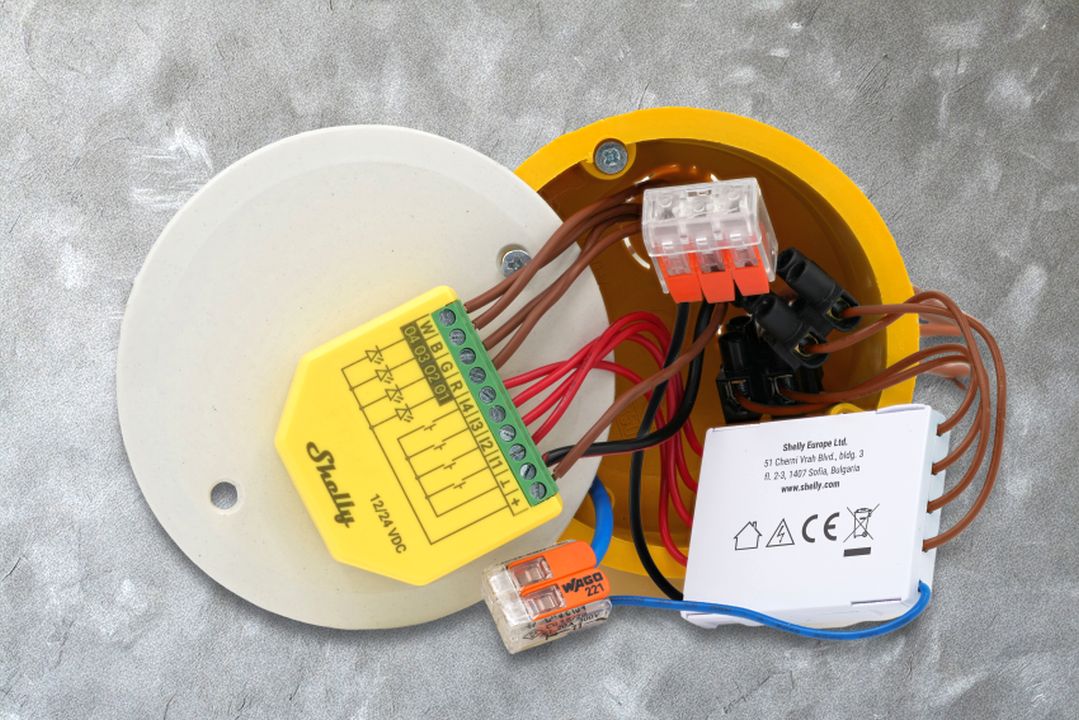

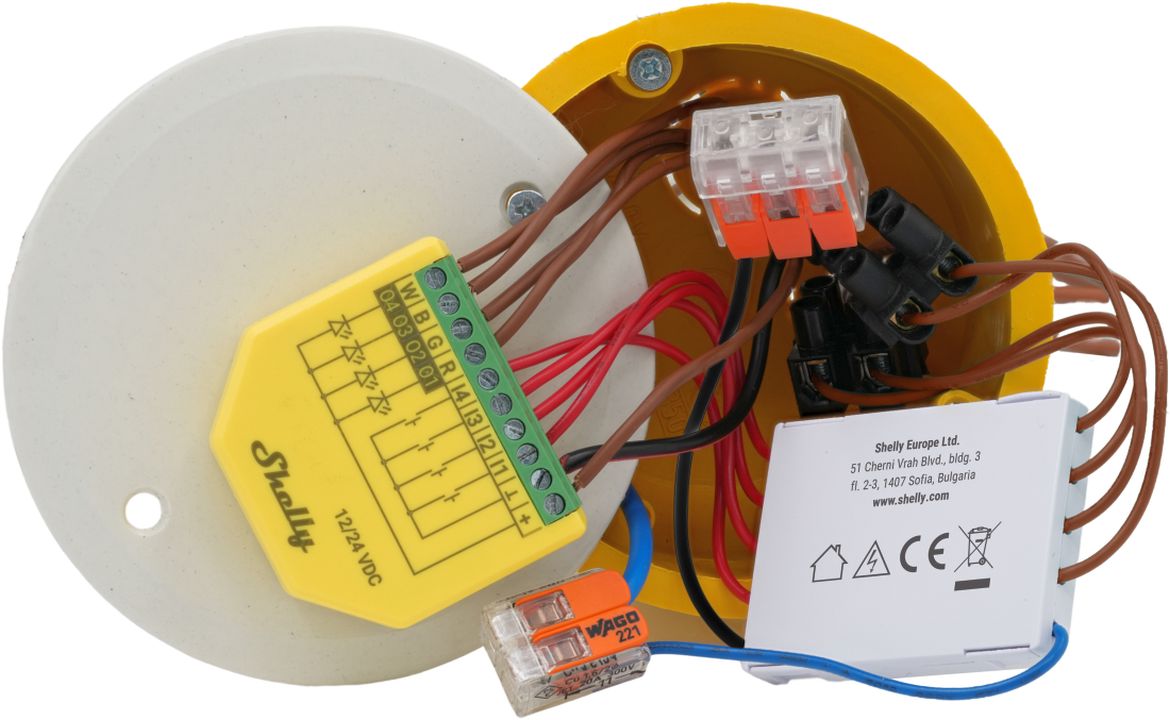

Löst DC-Eingänge mit einem AC-Signal aus. Ideal, um DC-Lasten mit vorhandenen AC-Schaltern zu isolieren und zu steuern. Kompatibel mit: Shelly Plus RGBW PM, Shelly Pro RGBWW PM, Shelly Plus Uni, Shelly Plus Add-On - AC-zu-DC-Signalkonvertierung: Löst DC-Eingänge mit standardmäßigen AC-Signalen aus – für einen sicheren und zuverlässigen Betrieb. - Isoliert und steuert DC-Lasten: Schützt Deine angeschlossenen Smart-Geräte, indem hohe AC-Spannungen von ihren DC-Eingängen isoliert werden. - Kompatibel mit mehreren Geräten: Funktioniert mit Shelly Plus RGBW PM, Shelly Pro RGBWW PM, Shelly Plus Uni und Shelly Plus Add-On. - Unterstützt spezialisierte Schalter: Entwickelt für den Einsatz mit externen und spezialisierten Steuerungen wie Tastern, Relais und Potentiometern. Häufige Verwendungsarten: -Verkabelung notwendig -Accessory
| Electrical | |
| Power consumption | < 0.6 W |
| Input | 120V~ 60 Hz (Shelly 1-Channel Decoupler 120V, Shelly 4-Channel Decoupler 120V) 230V~ 50 Hz (Shelly 1-Channel Decoupler 230V, Shelly 4-Channel Decoupler 230V) |
| Max. output current | 2.4 mA⎓ |
| Environmental | |
| Ambient working temperature | 0 to 40 °C / 32 to 104°F |
| Storage temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Physical | |
| Size (HxWxD) | 48x13x7 mm / 1.89x0.51x0.27 inch (Shelly 1-Channel Decouplers) 44x34x7 mm / 1.73x1.34x0.27 inch (Shelly 4-Channel Decouplers) |
| Weight | 14 g / 0.49 oz (Shelly 1-Channel Decouplers) 25 g / 0.88 oz (Shelly 4-Channel Decouplers) |
| Shell color | White (Shelly 1-Channel Decoupler 230V, Shelly 4-Channel Decoupler 230V) Black (Shelly 1-Channel Decoupler 120V, Shelly 4-Channel Decoupler 120V) |
| Cable length | 80 mm |
| Stripped length | 5 mm |

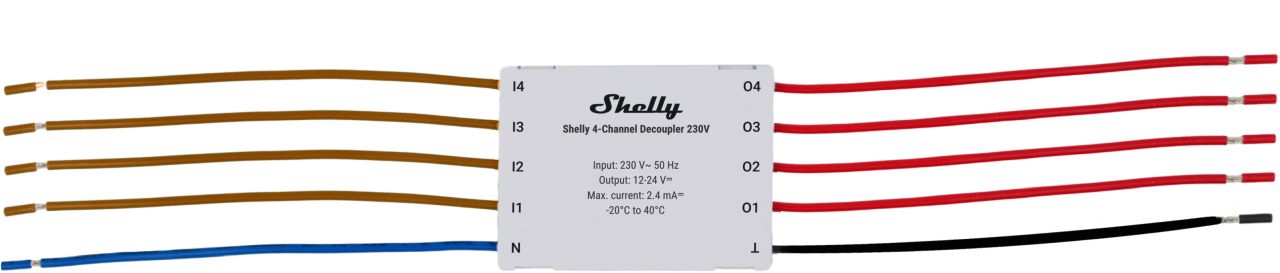

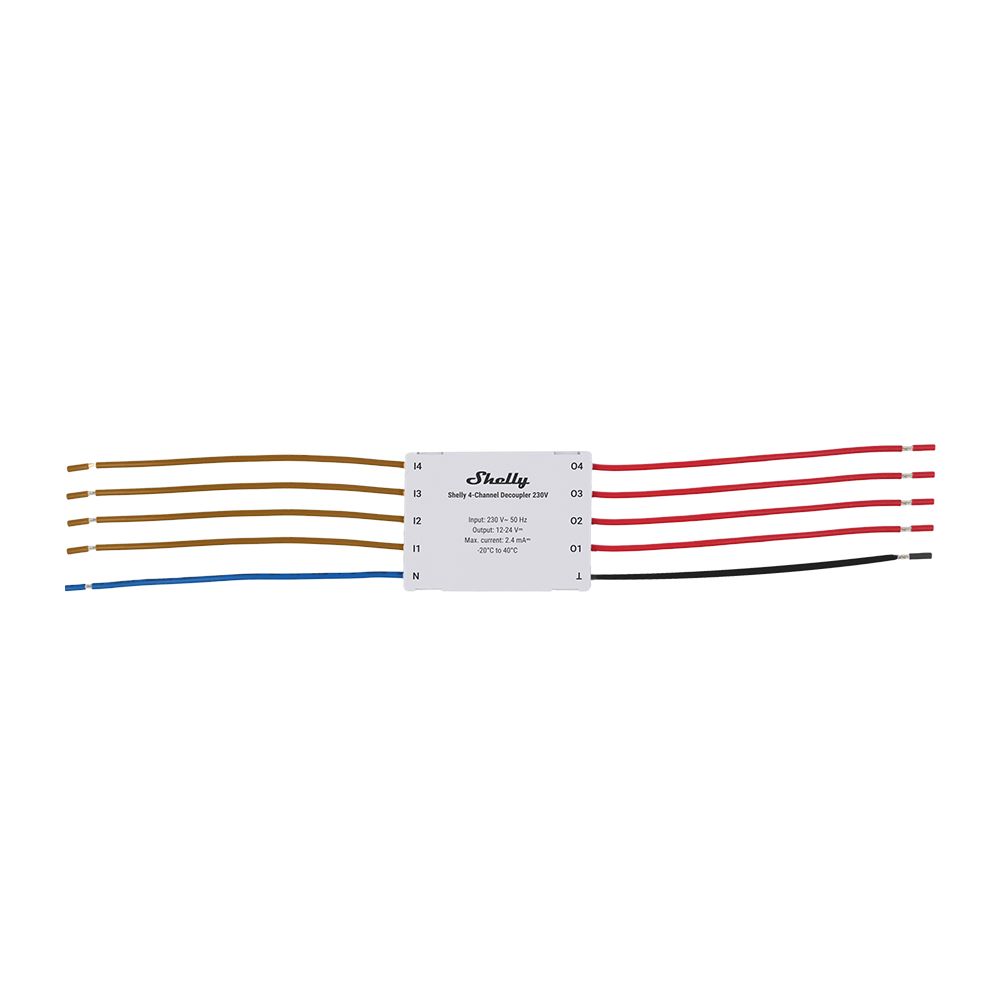

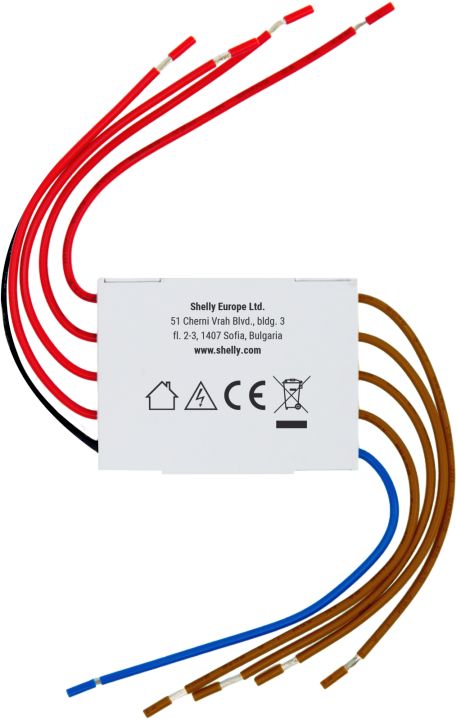

| Wire colors | Brown (I), Blue (N), Red (O), Black (Ʇ) (Shelly 1-Channel Decouplers) Brown (I1-I4), Blue (N), Red (O1-O4), Black (Ʇ) (Shelly 4-Channel Decouplers) |
