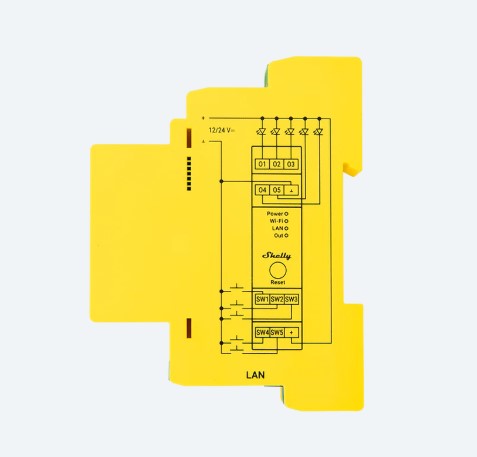

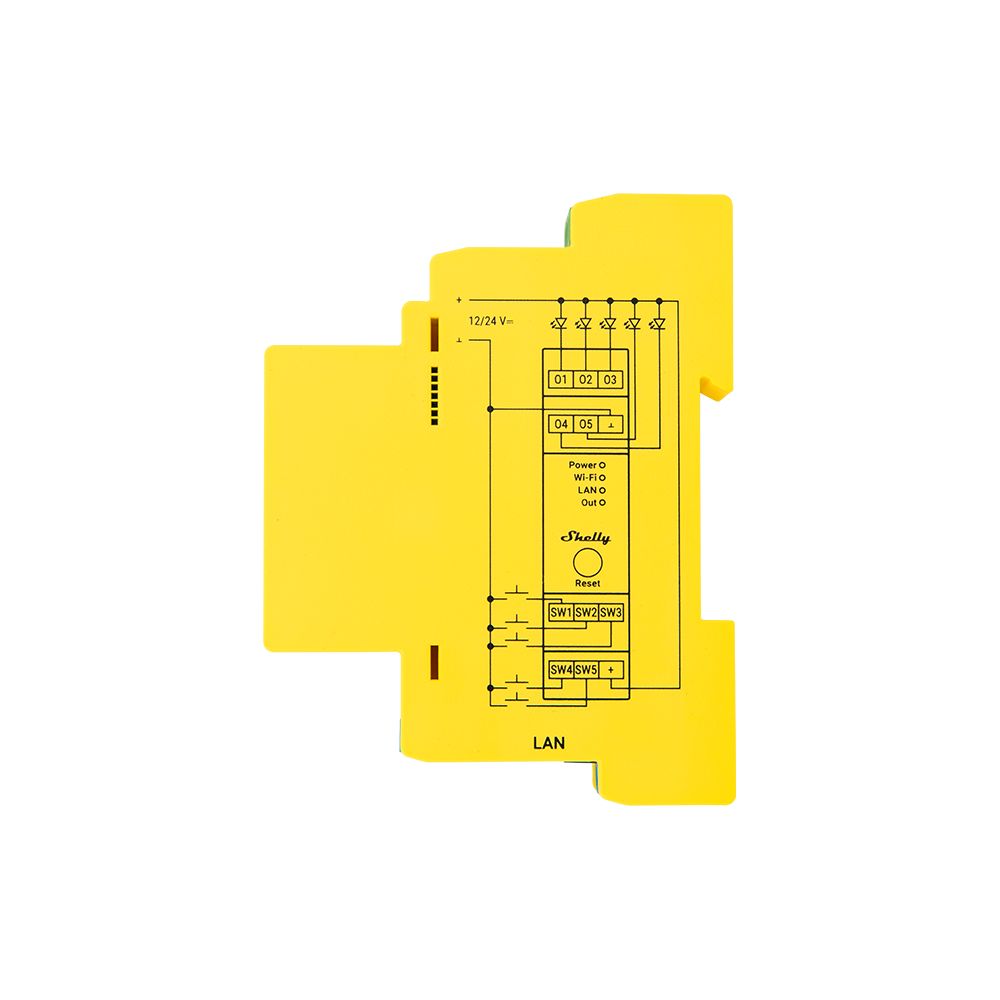

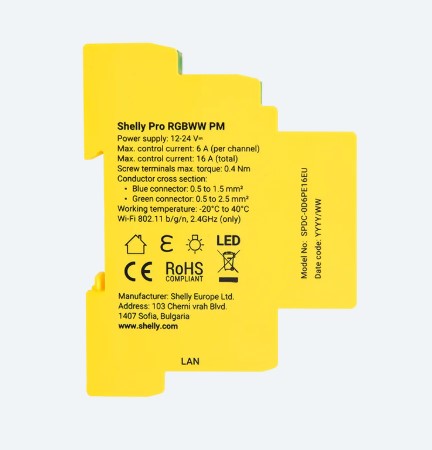

Shelly Shelly_Pro_RGBWW_PM DIN rail · Pro RGBWW PM · LED light controller · measurement function · WLAN · LAN · Bluetooth
|
-17% 45,30 EUR 54,38 EUR |
|
|
( 53,91 EUR incl. VAT ) ≈ £37.92 | ≈ $50.69 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1227681 |
|---|---|
| Mfg Part No: | Shelly Pro RGBWW PM |
| UPC/EAN: | 3800235268216 |
| Weight: | 0.196 kg |
Product information for Shelly Shelly_Pro_RGBWW_PM:
Unser erster DIN-Schienen-montierbarer, fünfkanaliger smarter Lichtcontroller zur unabhängigen Steuerung von verstellbaren Weißkanälen (CCT) und 5 LED-Strips. Mit integrierter Leistungsüberwachung, die eine Echtzeitverfolgung von Spannung, Strom und Energieverbrauch ermöglicht. - DIN-Schienenmontierbar - Unterstützt mehrere Profile: Unterstützt CCT x2, RGB+CCT, RGB+2x Light und Light x5 - Unabhängige Steuerung für jeden Ausgang (Kanal) im Light x5 Profil: - Ermöglicht eine separate Steuerung für jeden Ausgang und bietet maximale Flexibilität - Leistungsüberwachung: Präzise Überwachung des Energieverbrauchs - Ethernet-Konnektivität - WLAN- und Bluetooth-Betrieb - WLAN-Reichweiten Extender & BLE-Gateway - Skripting: Ermöglicht das Erstellen von Automatisierungsszenarien durch Skripte - Sicherheit: Schutz vor Überstrom, Überspannung und Überlastung - Nachtmodus: Ermöglicht die Einstellung einer bestimmten Helligkeit für Eingangslichter während der Nacht - Kein Hub erforderlich! Einfache Steuerung über die Shelly Smart Control App, die meisten Plattformen und Protokolle sowie Sprachassistenten. - Nutze es mit Alexa, Home Assistant oder deiner bevorzugten Automatisierungsplattform
| Bluetooth | |
| Protocol (Bluetooth) | 4.2 |
| RF band (Bluetooth) | 2400 - 2483.5 MHz |
| Max. RF power (Bluetooth) | < 4 dBm |
| Range (Bluetooth) | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors , (Depends on local conditions) |
| Electrical | |
| Power supply | 12-24 VDC |
| Power consumption | < 1.5 W |
| External protection | 16 A, tripping characteristic B or C, , 6 kA interrupting rating, , Energy limiting class 3 |
| Environmental | |
| Ambient working temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Firmware capabilities | |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 5 URLs per hook |
| Scripting | |
| MQTT | |
| Encryption | |
| Advanced schedules | |
| KVS (Key-Value Store) | |
| Microcontroller unit | |
| CPU | ESP32-D0WDQ6 |
| Clock frequency | 40 Mhz |
| Flash | 8 MB |
| Output circuits ratings | |
| Max. switching voltage | 24 VDC |
| Max. switching current | 16 A |
| Max. control current | 16 A (total), 6 A (per channel) |
| CCT range | 2700K - 6500K (<- default, configurable to any range in between 1000K and 10000K) |
| Physical | |
| Size (HxWxD) | 94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in |
| Weight | 61 g / 2.15 oz |
| Screw terminals max torque | 0.4 Nm / 3.54 lbin |
| Conductor cross section | 0.5 to 2.5 mm² / 20 to 14 AWG (green connector) , 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors) , (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in (green connector) , 5 to 6 mm / 0.20 to 0.24 in (blue connectors) |
| Mounting | DIN rail |
| Shell material | Plastic |
| Shell color | Yellow |
| Sensors, meters | |
| Voltmeter (DC) | 12 V - 24 V, ± 10 % |
| Voltmeter accuracy | +/-5% (12V-24V DC) |
| Ammeter (DC) | 0 mA - 5 A, ± 10 % |
| Ammeter accuracy | +/-5% |
| Power and energy meters | Active and apparent power Active and apparent energy Power factor Fundamental active and fundamental reactive energy |
| Measurement data storage | |
| Internal-temperature sensor | |
| Wi-Fi | |
| Protocol | 802.11 b/g/n |
| RF band | 2401 - 2495 МHz |
| Max. RF power | < 20 dBm |
| Range | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors , (Depends on local conditions) |
