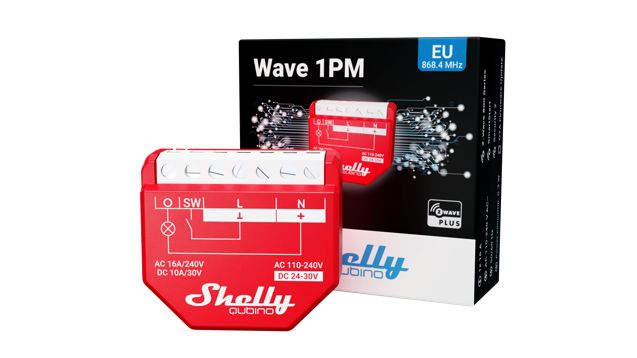

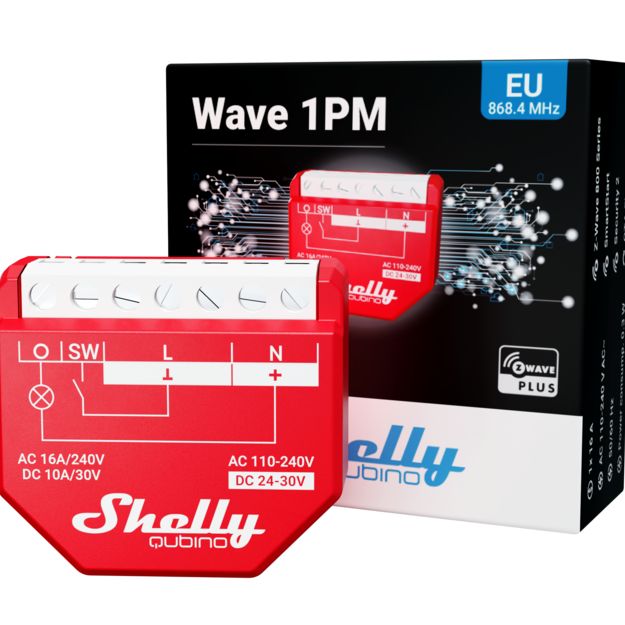

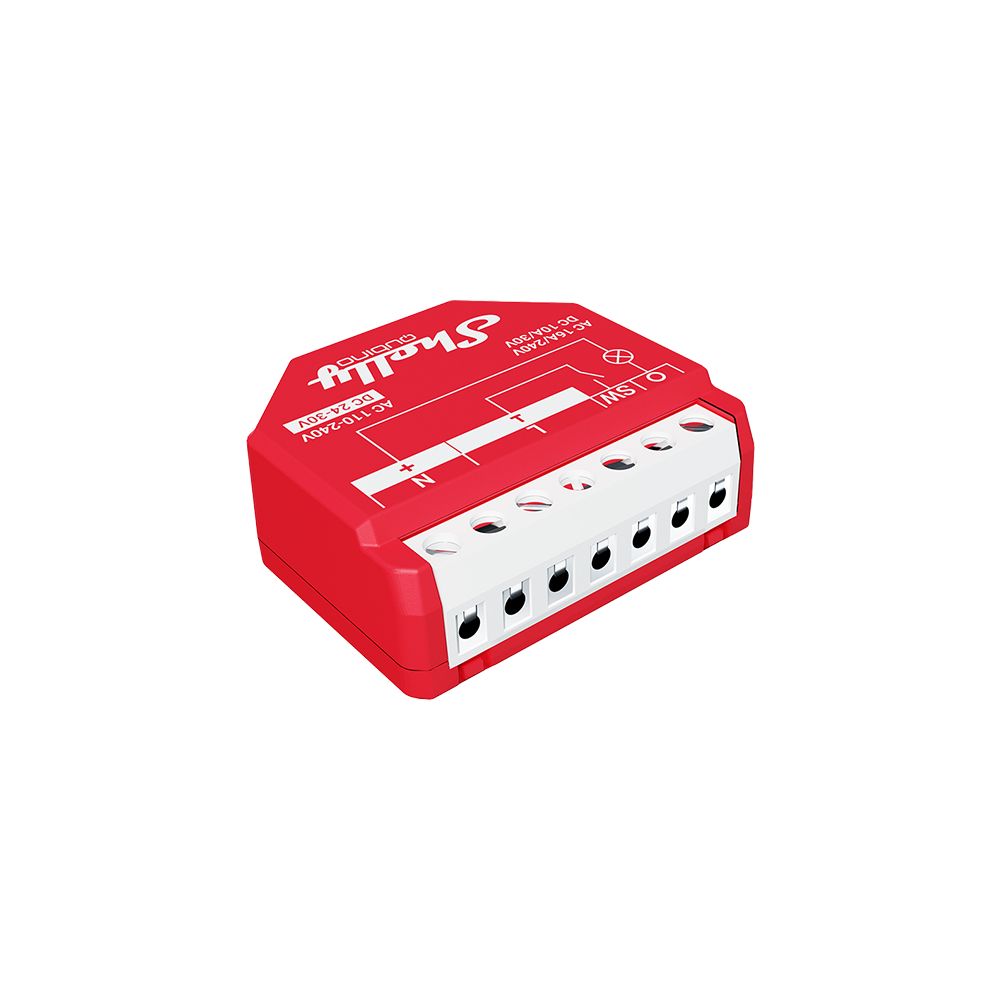

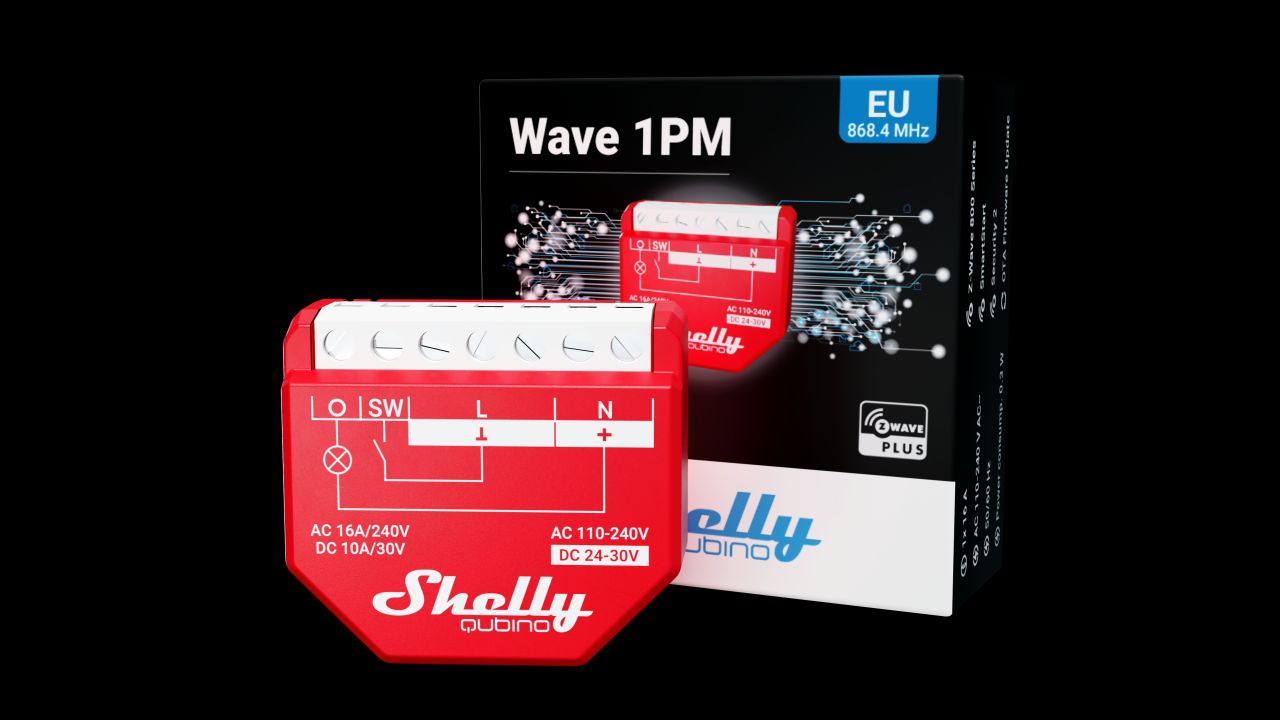

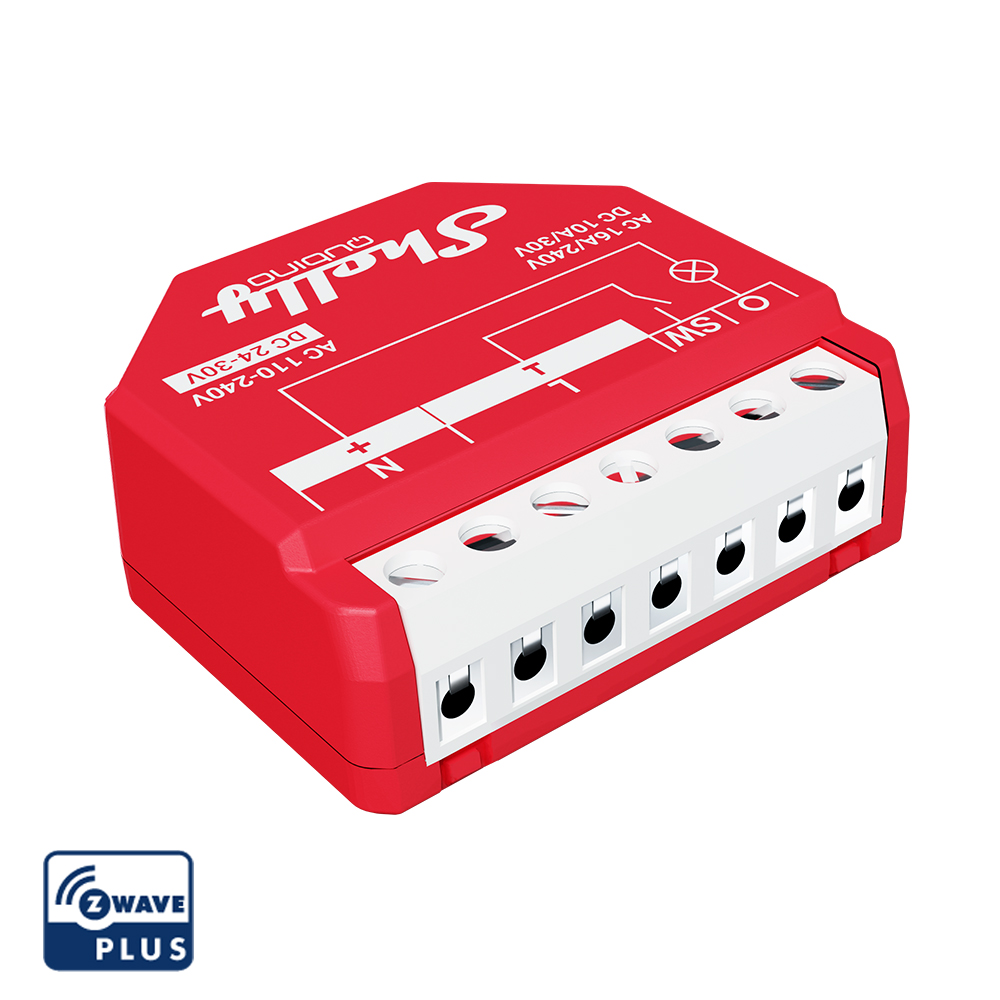

Shelly · Flush-mounted · “Wave 1PM” · Relay · max. 16A · 1 channel · Measuring function · Z-Wave content_copy

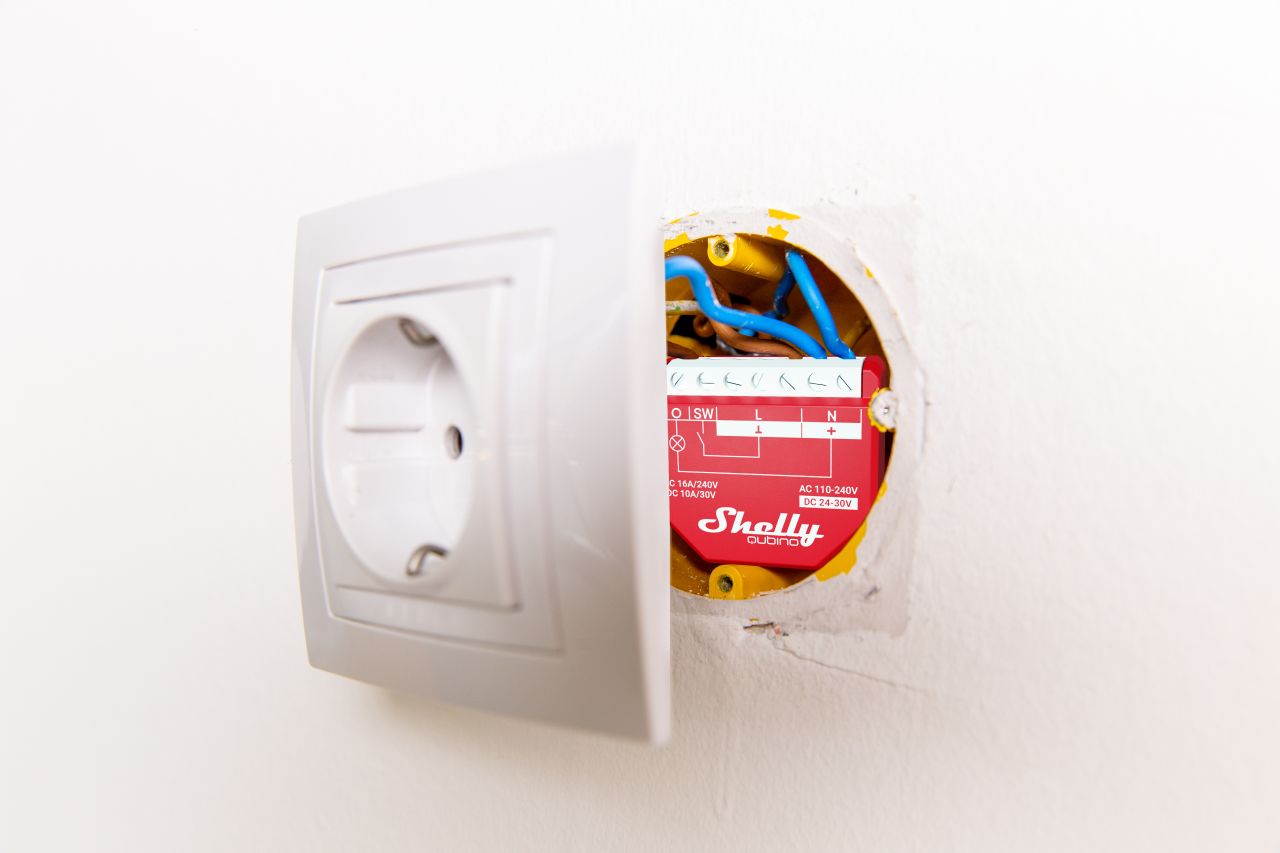

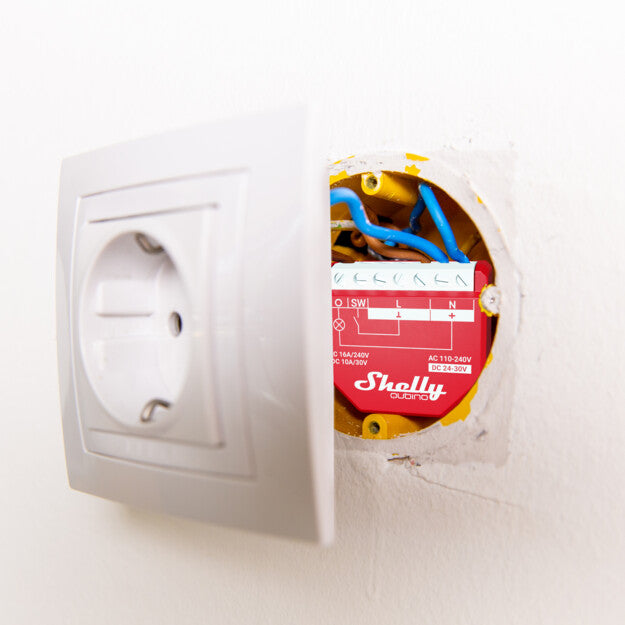

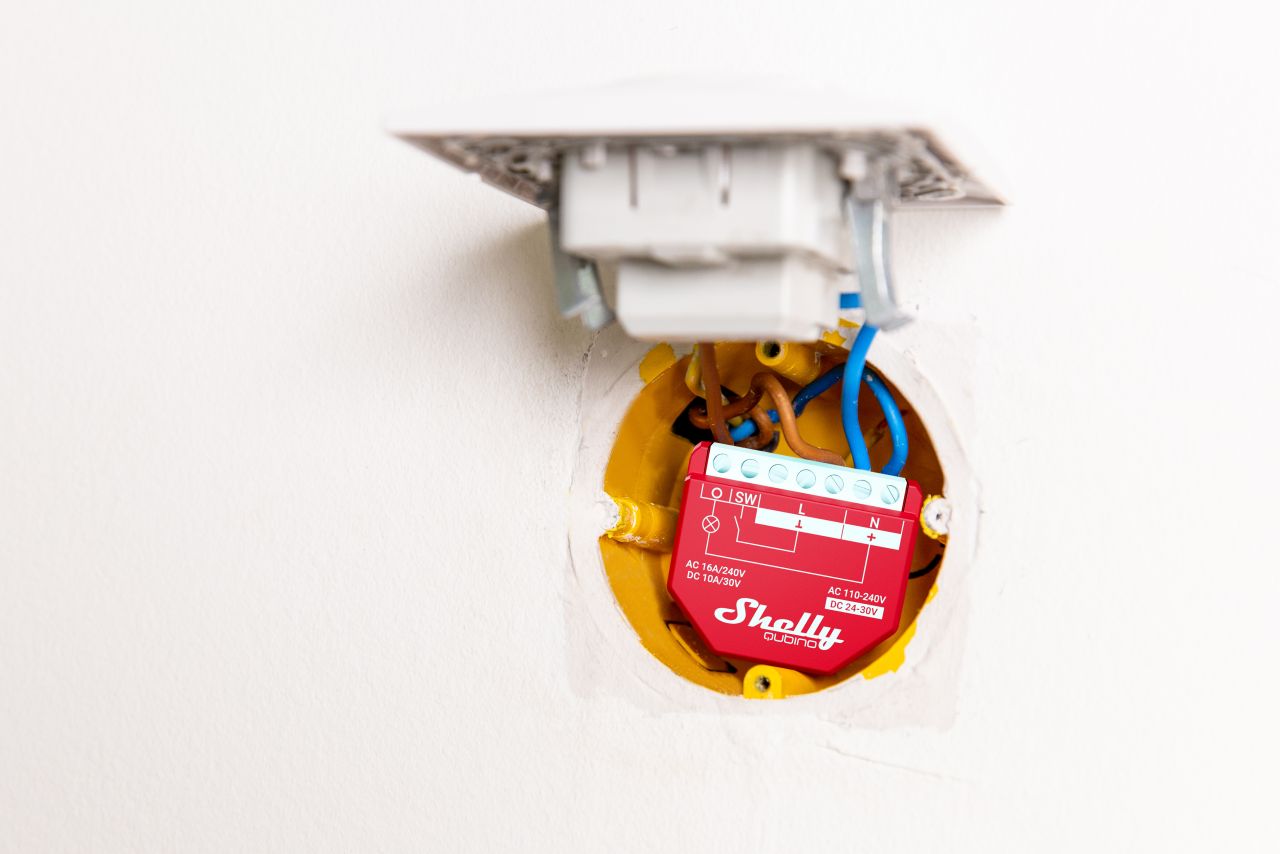

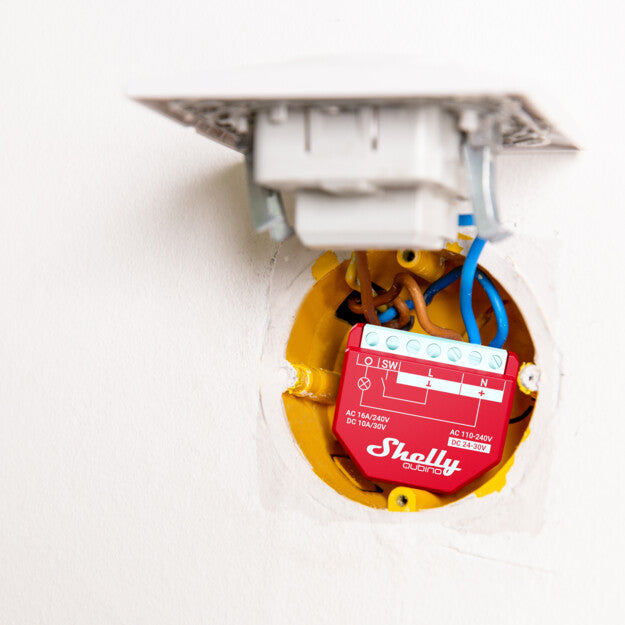

Z-Wave™ Smart Switch, 1 channel 16 A, with power measurement Control and measurement of the power consumption of numerous household and office devices (lighting, power lines, security systems, heaters, water heaters, etc.) from anywhere. Power consumption measurement Extremely low internal consumption of the device: 0.3 W . Z-Wave frequency band: 868.4 MHz (CEPT countries) Latest technology: Z-Wave 800 series Automatic setup with SmartStart 2-factor authentication for the highest level of security Supports wireless firmware updates Easy installation in most standard Electrical sockets and switches Compatible with Z-Wave certified gateways and over 4,000 Z-Wave devices A gateway (smart hub) is required to configure the device.
*A gateway (smart hub) is not included.
Power supply AC/DC 110-240 V AC / 24-30 V DC Internal consumption of the device < 0.3 W Energy measurement Yes Max. switching voltage AC 240 V Max. switching current AC 16 A Max. switching voltage DC 30 V Max. switching current DC 10 A Overheating protection Yes Overload protection Yes Range Up to 40 m indoors (Depending on local conditions) Z-Wave™ repeater: Yes CPU Z-Wave™ S800 Z-Wave™ radio frequency: 868.4 MHz 865.2 MHz 869.0 MHz 921.4 MHz 908 .4 MHz 916 MHz 919.8 MHz 922.5 MHz 919.7-921.7-923.7 MHz 868.1 MHz 920.9 MHz Maximum transmitted radio frequency power in frequency band(s) < 25 mW Size (H x W x D ) 37x42x16 ±0.5 mm Weight 27 g. Mounting flush-mounted box screw terminals max. Torque 0.4 Nm Cross section of the conductor 0.5 to 1.5 mm² Length of the stripped conductor 5 to 6 mm Material of the housing Plastic Color Red Ambient temperature -20°C to 40°C Humidity 30% to 70% RH Max. Altitude 2000 m

General
Power supply	110-240 V AC / 24–30 V DC
Power consumption	< 0.3 W
Max. switching voltage AC	240 V
Max. switching current AC	16 A
Max. switching voltage DC	30 V
Max. switching current DC	10 A
Distance	Up to 40 m indoors (131 ft.) (depends on local condition)
CPU	Z-Wave® S800
Z-Wave® frequency bands	868,4 MHz
Maximum radio frequency power transmitted in frequency band(s)	< 25 mW

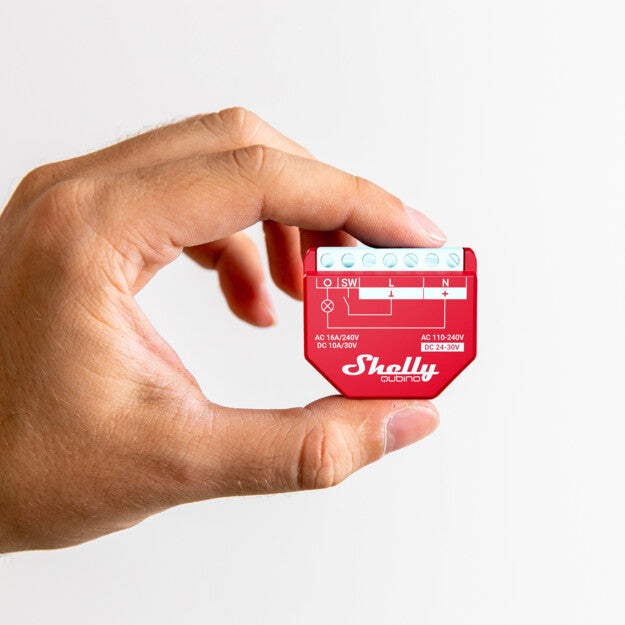

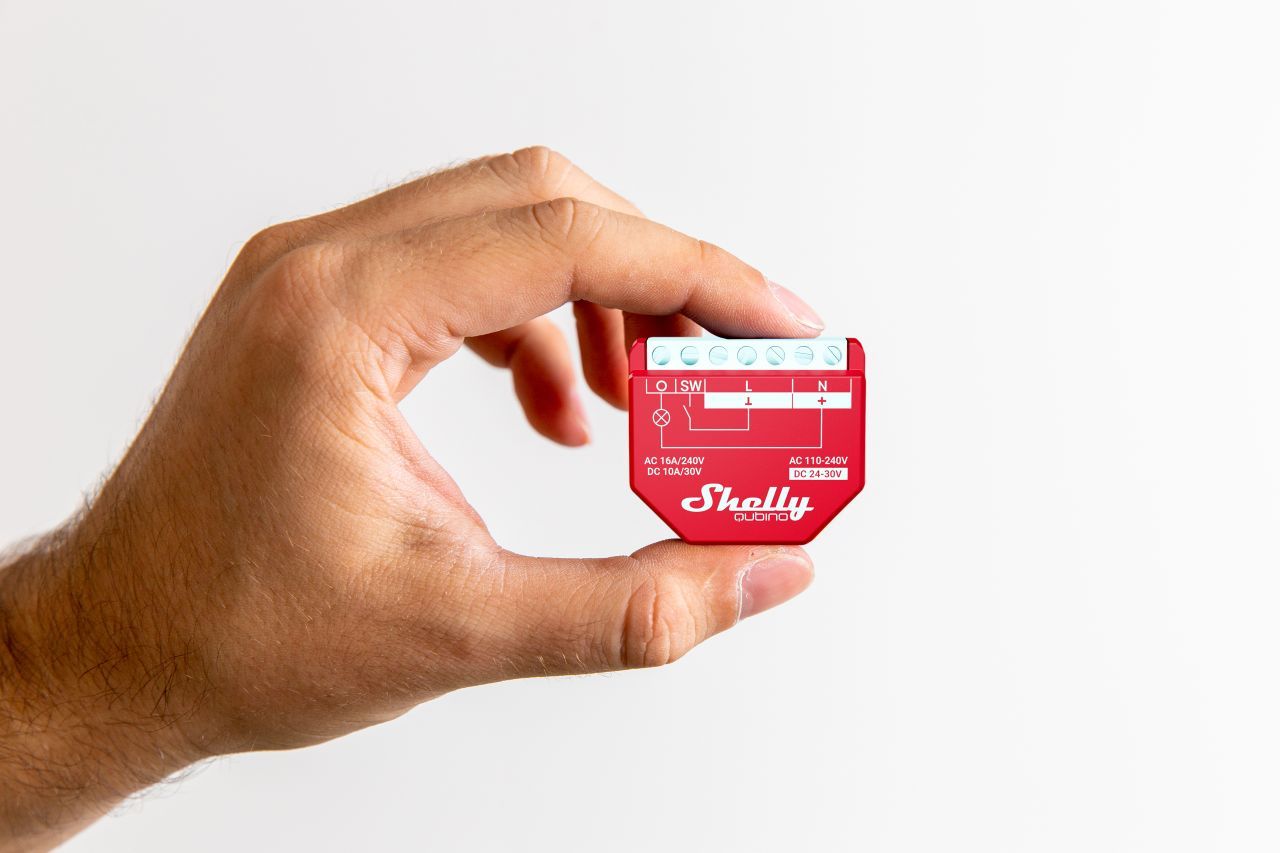

Size (H x W x D)	37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in
Weight	27 g / 0.95 oz.
Mounting	Wall console
Screw terminals max. torque	0.4 Nm / 3.5 lbin
Conductor cross section	0.5 to 1.5 mm² / 20 to 16 AWG
Conductor stripped length	5 to 6 mm / 0.20 to 0.24 in
Shell material	Plastic
Colour	Red
Ambient temperature	-20°C to 40°C / -5°F to 105°F
Humidity	30% to 70% RH
Max. altitude	2000 m / 6562 ft.
Power measurement (W)
Overheating protection
Overload protection
Z-Wave® repeater

---
