SEH INU-100 USB Device server content_copy

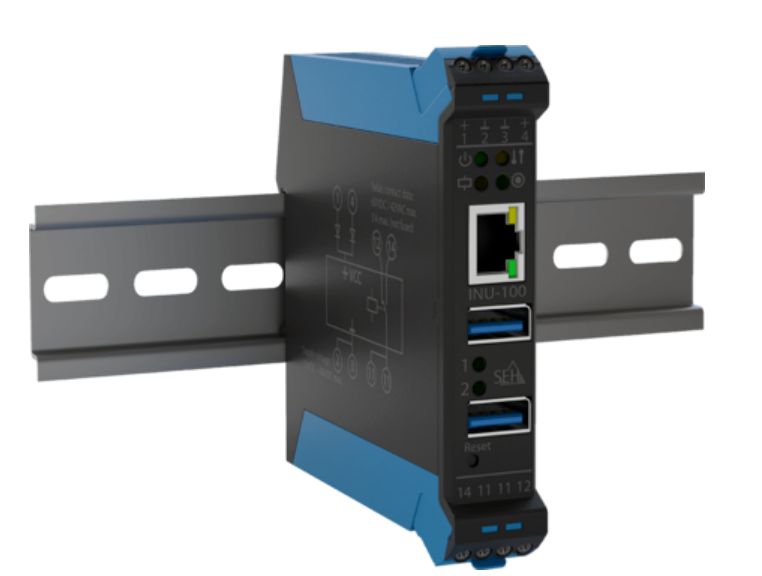

The SEH INU-100 is an industrial deviceserver of the brand SEH, type CPNT, with manufacturer number M07210. It is designed for integrating USB devices into TCP/IP networks and enables access to connected USB peripherals over a network. The device is specifically designed for use in industrial environments and is mounted on a DIN rail, allowing flexible and space-saving installation in enclosures or server racks.

Applications
The SEH INU-100 is suitable for applications where USB devices such as printers, scanners, storage devices, or other peripherals need to be made accessible over a network. This is particularly advantageous in production environments, logistics, or office setups with distributed infrastructure. Integration is achieved via Gigabit Ethernet, ensuring fast and reliable data transmission. Mounting on a DIN rail makes the device ideal for use in industrial enclosures or rack systems.

Functions and Specifications in Detail

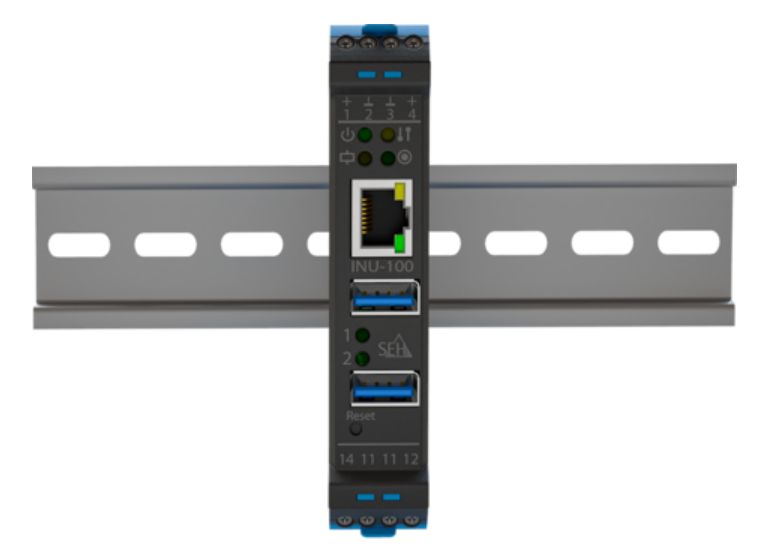

The device features two USB 3.0 ports, enabling high data throughput. With one connected device, maximum data throughput reaches up to 65 MB/s; with two connected devices, it reaches up to 40 MB/s. These values are relevant for efficient use of USB peripherals in networks, especially in data-intensive applications such as printing or scanning. Network functions include support for VLAN according to IEEE 802.1Q, enabling structured network management and traffic segmentation. Control and configuration are performed using the software SEH UTN Manager, which allows centralized management of connected devices.

Technology Explained Simply

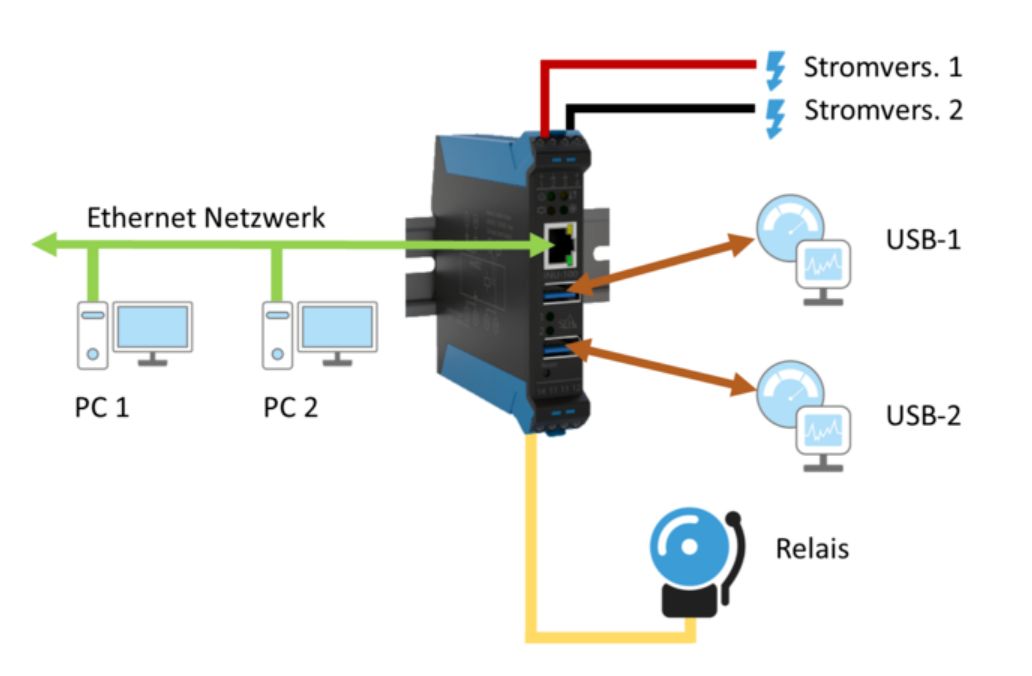

The SEH INU-100 acts as a bridge between USB peripherals and a TCP/IP network. It enables USB devices, normally accessible only locally via a computer, to be used over the network from any endpoint. Data transmission occurs via Gigabit Ethernet (10Base-T/100Base-TX/1000Base-T), ensuring high bandwidth and low latency. Support for VLAN according to IEEE 802.1Q allows logical segmentation of the network, which is important for security and management in larger networks. The USB 3.0 interfaces offer high transfer rates suitable for time-critical applications.

Compatibility and Accessories
The SEH INU-100 is designed for mounting on a DIN rail, enabling standard installation in industrial enclosures or server racks. There are no specific details provided about compatible accessories included in the delivery scope; however, it is intended for use with USB peripherals such as printers, scanners, or storage devices. Network integration is achieved via Ethernet, allowing connection to existing network infrastructures. The software SEH UTN Manager is required for configuration and control, but it is not included in the delivery scope.

Installation and Mounting

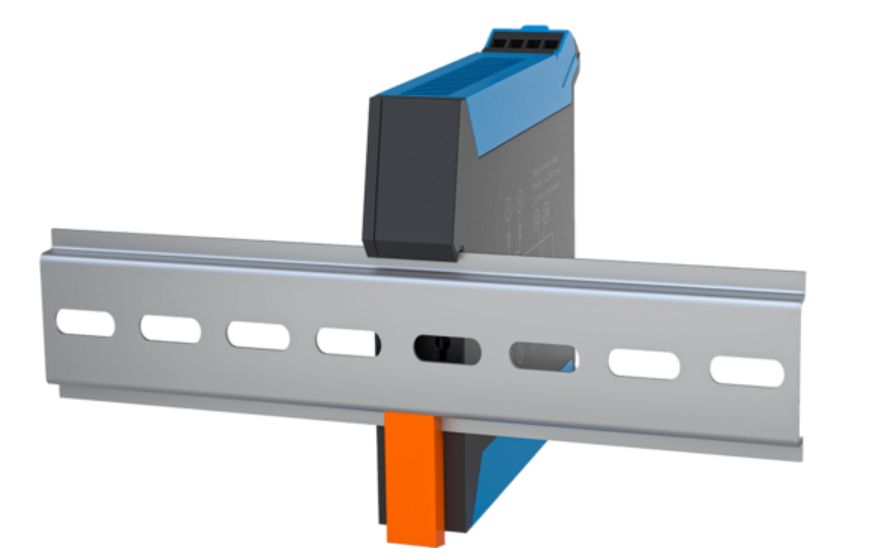

Mounting is done via DIN rail mounting, enabling simple and standardized installation in enclosures or rack systems. No additional mounting accessories are required, as the device is directly clipped onto the rail. The network connection is made using an Ethernet cable connected to the appropriate port. USB devices are connected to the two USB 3.0 ports. Configuration is performed using the software SEH UTN Manager, which must be provided separately.

Operational Advantages
The SEH INU-100 enables centralized access to USB peripherals over a network, reducing the number of required physical connections. Support for VLAN according to IEEE 802.1Q provides additional security and management options. The high data throughput of the USB 3.0 interfaces ensures efficient use of connected devices. DIN rail mounting allows flexible and space-saving installation in industrial environments. However, the use of the device requires separate installation of the software SEH UTN Manager for configuration.

Delivery Contents
The delivery includes the device itself, including the two USB 3.0 ports and the Ethernet interface. Batteries, cables, software, or other accessories are not included. The software SEH UTN Manager must be purchased and installed separately.
