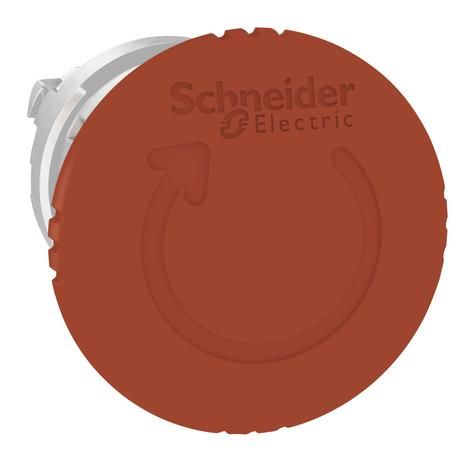

Schneider Electric ZB4BS84430 emergency stop with logo

Your rating:
Average rating
product review for Schneider Electric ZB4BS84430 emergency stop with logo
( 4.5 / 5 ) 10 ratings
Schneider Electric ZB4BS84430
This image may differ from the desired article.
1.480,29 EUR 1.542,62 EUR
( 1.761,55 EUR incl. VAT )
≈ £1,233.08  |  ≈ $1,623.88
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 8 workdaysinfo_outline
Sales unit: 42 pieces
1x Schneider Electric ZB4BS84430 emergency stop with logo
Datasheet:file_download Download
Lieske Part No.:599232
Mfg Part No: ZB4BS84430
UPC/EAN: 3606480502842
Weight:0.123 kg
Type:ZB4BS84430
Graduated prices net
From piecesPrice per pieces
21.435,88 EUR
41.391,47 EUR
61.347,06 EUR
81.302,66 EUR

Product information for Schneider Electric ZB4BS84430:

The Harmony XB4/ZB4 metal series offers a wide range of 22mm and 30mm control and signaling devices such as push buttons, indicator lights and selector switches through to emergency stop switches. The modular design of the devices means that all components can be purchased as individual elements, in assemblies or as complete devices. Due to their quality, flexibility and extreme robustness (protection classes up to IP69K), the devices are ideal for most applications in industry and in buildings. This ergonomic emergency stop/emergency off switch front element in red is labelled with EMO and has a twist release. The front element is mounted in a 22mm hole. It is attached using a vibration-resistant connection screw. To create a complete device, this front element can be combined with a mounting flange and a wide range of different auxiliary switches and accessories. In addition to high vibration resistance and a very long service life, the devices in the XB4/ZB4 series also impress with an extremely high possible ambient temperature. Suitable for international use due to the large number of existing product standards and certifications. Thanks to the Green Premium eco-label, you can receive detailed information on material content, environmental impact and circular economy that supports your sustainability goals.

The item price shown refers to 42 pieces Schneider Electric ZB4BS84430
Complementary
CAD overall width40 mm
CAD overall height40 mm
CAD overall depth57 mm
Net weight0.073 kg
Mechanical durability300000 cycles
Electrical composition codeC7 for
Device presentationBasic element
Contractual warranty
Warranty (in months)18
Environment
Protective treatmentTH
Ambient air temperature for storage-40…70 °C
Ambient air temperature for operation-40…70 °C
Electrical shock protection classClass I conforming to IEC 61140
IP degree of protectionIP66 conforming to IEC 60529; IP69; IP69K
Enclosure TypeUL type 4X/13
IK degree of protectionIK06 conforming to IEC 50102
StandardsJIS C8201-5-1; CSA C22.2 No 14; IEC 60947-5-1; GB 14048.5; UL 508; IEC 60947-1; IEC 60364-5-53; IEC 60947-5-4; IEC 60204-1; IEC 60947-5-5; ISO 13850; JIS C8201-1
Product certificationsDNV; UL listed; LROS (Lloyds register of shipping); BV; CSA
Vibration resistance5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Logistical informations
Country of originCZ
Main
Range of productHarmony XB4
Product or component typeHead for emergency switching off push-button
Device short nameZB4
Bezel materialChromium plated metal
Mounting diameter22.5 mm
Sale per indivisible quantity1
Shape of signaling unit headRound
Type of operatortrigger action and mechanical latching
ResetTurn to release
Operator profileRed mushroom Ø 40 mm, EMO
Head typeStandard
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height4.400 cm
Package 1 Width5.200 cm
Package 1 Length8.600 cm
Package 1 Weight75.000 g
Unit Type of Package 2S02
Number of Units in Package 242
Package 2 Height15.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight3.475 kg
Unit Type of Package 3P06
Number of Units in Package 3672
Package 3 Height75.000 cm
Package 3 Width60.000 cm
Package 3 Length80.000 cm
Package 3 Weight68.196 kg


Product data sheet
Datasheet for Schneider Electric ZB4BS84430, EAN: 3606480502842

Questions & answers

What is the delivery time of Schneider Electric ZB4BS84430 emergency stop with logo?

The article Schneider Electric ZB4BS84430 emergency stop with logo is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schneider Electric ZB4BS84430 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Schneider Electric ZB4BS84430 emergency stop with logo always at the best possible price. We can give you a discount of 2% on Schneider Electric ZB4BS84430 emergency stop with logo if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Schneider Electric ZB4BS84430 emergency stop with logo we can offer you a price of 1.435,88 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Schneider Electric ZB4BS84430 emergency stop with logo is offered by us in a sales unit of 42 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
