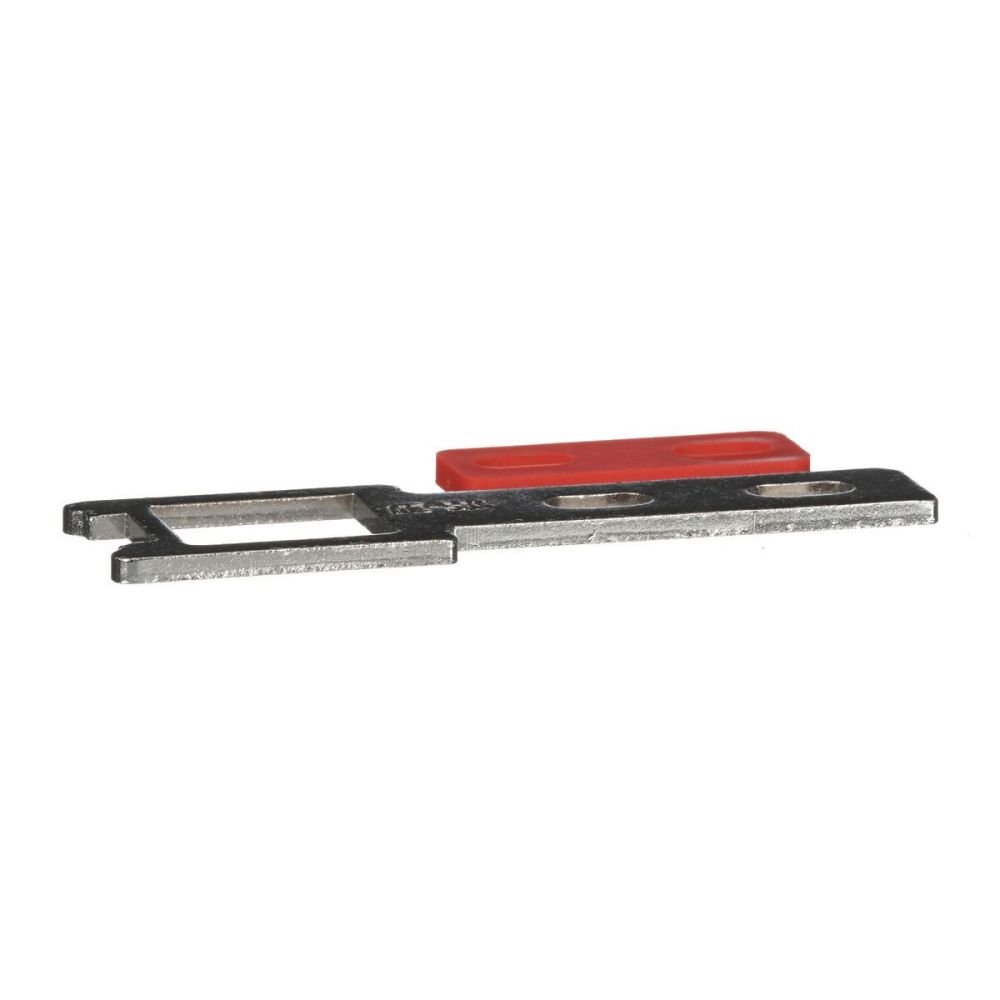

Schneider Electric XCSZ01 XCS-Z01 actuator for position switch XCSPA/TE
|
13,11 EUR 13,66 EUR |
|||||||||||
|
( 15,60 EUR incl. VAT ) ≈ £10.97 | ≈ $14.41 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 926100 | ||||||||||
| Mfg Part No: | XCSZ01 | ||||||||||
| UPC/EAN: | 3389110745351 | ||||||||||
| Weight: | 0.023 kg | ||||||||||
| Type: | XCSZ01 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schneider Electric XCSZ01:
Actuator for safety position switches
The XCSZ01 serves as a mechanical actuating arm mounted on a position switch to mechanically transmit its state (e.g., open, closed). It enables precise and forceful actuation of the switch, ensuring safety-critical functions such as machine shutdown or monitoring of movements in production systems. The straight shape of the actuator ensures direct and undistorted force transmission.
Plastic as material
The actuator is made of plastic, a material commonly used in industrial applications due to its resistance to chemical influences, corrosion, and mechanical stress. Plastic also offers low weight and is easy to process, simplifying installation and maintenance. The use of plastic ensures sufficient durability under normal operating conditions.
Metal-enclosed – use in protected environments
The actuator is designed for use with metal-enclosed safety position switches. This enclosure provides a high degree of protection against mechanical damage, dust, and moisture, making it particularly suitable for use in production halls, machine building, or other industrial environments. The metallic housing of the switch to which the actuator is mounted contributes to the overall safety and longevity of the system.
Compatibility with safety position switches
The XCSZ01 is specifically developed for safety position switches of types XCSPA/TE. These switches are used in safety-critical systems to monitor the status of moving parts, such as protective doors, sliding doors, or movable covers. The combination of actuator and switch enables reliable signal transmission, which is essential in automation technology and machine control.
Functions and equipment in detail
The actuator features a simple yet robust construction designed for long service life and low maintenance. Its straight shape allows for clear and uncomplicated installation on the designated position switches. It is not intended for use in explosive environments, but for normal industrial applications with mechanical actuation. Installation is done via mechanical fastening to the switch housing, requiring no additional tools or electrical connections.
Application areas
The XCSZ01 is used in industrial automation, particularly in machine building, manufacturing technology, and plant engineering. It is employed to monitor the status of movable components, such as protective doors, sliding doors, or movable covers. The mechanical actuation ensures that the switch is only activated when the actuator is physically moved, increasing the reliability of the safety function.
Advantages in operation
The actuator provides a simple, robust, and low-maintenance solution for mechanical actuation of safety position switches. The use of plastic ensures sufficient durability, while the metal-enclosed environment of the switch offers additional protection. Compatibility with XCSPA/TE switches ensures seamless integration into existing systems without additional modifications.
Installation and mounting
Mounting is done via mechanical fastening to the position switch. No additional tools or electrical connections are required. Installation typically involves simply inserting or screwing the actuator into the designated location on the switch housing.
Technology explained clearly
The actuator functions as a mechanical lever that transfers the movement of a movable part (e.g., a protective door) to the position switch. When the door is closed, the actuator moves and actuates the switch. This signal can then be processed in a control system to, for example, activate or deactivate a machine. The use of plastic ensures sufficient mechanical strength, while the metal-enclosed environment of the switch provides additional protection.
Compatibility and accessories
The actuator is specifically developed for use with safety position switches of types XCSPA/TE. It is not suitable for other switch types or series. The combination with these switches enables monitoring of movements in safety-critical systems. No specific accessories are included with the actuator; mounting is done directly onto the switch housing.
Functions in operation
The actuator provides mechanical signal transmission that operates independently of electrical or pneumatic systems. This increases reliability, especially in environments where electrical interference or wear is significant. The straight shape ensures precise actuation without lateral shifts or misalignment.
| General | |
| Material | Plastic |
| Shape | Straight |
| Insert | For safety position switches |
| Compatibility | XCSPA/TE |
| Housing | metal-encapsulated |
