Schneider Electric XCSA703 safety position switch NPT ÖÖS

Your rating:
Average rating
product review for Schneider Electric XCSA703 safety position switch NPT ÖÖS
( 0 / 5 ) 0 ratings

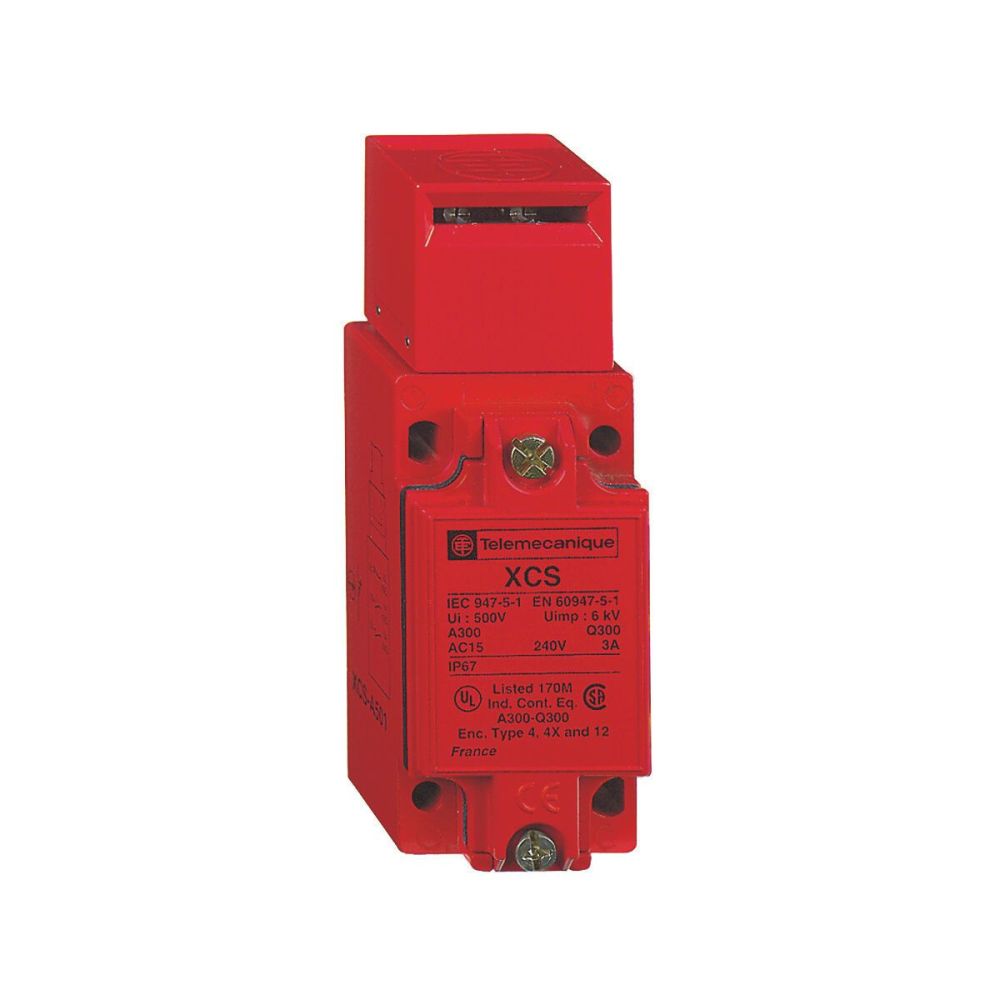

Schneider Electric XCSA703
This image may differ from the desired article.
136,40 EUR 136,80 EUR
( 162,32 EUR incl. VAT )
≈ £114.17  |  ≈ $149.90
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Schneider Electric XCSA703 safety position switch NPT ÖÖS
Datasheet:file_download Download
Lieske Part No.:576080
Mfg Part No: XCSA703
UPC/EAN: 3389110718881
Weight:0.498 kg
Type:XCSA703
Graduated prices net
From piecesPrice per pieces
5131,29 EUR
10126,17 EUR
15121,05 EUR
20115,94 EUR

Product information for Schneider Electric XCSA703:

The XCSA703 from Schneider Electric is a key-operated safety switch of the Preventa XCS series, designed for use in safety devices of industrial plants. It features an adjustable revolver head and a robust, red-coated Zamak body, providing high mechanical stability and corrosion resistance. The integrated 1/5,1 cm ( 2 inch )-NPT cable entry enables simple and secure installation, particularly in environments with high mechanical stress. Due to its IP67 protection rating, the switch is dust- and water-tight, making it suitable for outdoor use and in harsh industrial environments.

Applications

The XCSA703 is used in safety-critical applications, for example in manufacturing, machine building, or process engineering, where reliable shutdown of machines or systems is required. The key operation ensures that only authorized personnel can operate the switch, increasing workplace safety. The IP67 protection rating makes it particularly suitable for locations with moisture, splashing water, or dust, such as in the food industry or outdoors.

Functions and Equipment in Detail

The switch features an electrical switching function with 1 normally open contact and 2 normally closed contacts, where the normally open contact operates before switching on (Slow Break). This design ensures that the contacts are securely opened before the switch moves to the on position, guaranteeing safe disconnection of electrical circuits. Operation is performed via an adjustable revolver head, allowing flexible orientation and adaptation to different mounting conditions. The cable gland in 1/5,1 cm ( 2 inch )-NPT plug connection supports a secure and tight connection.

Technology Explained Simply

The Zamak body (a zinc-aluminum-magnesium alloy) provides high strength and resistance to mechanical stress. The red-coated surface improves visibility and protects against corrosion. The IP67 protection rating means the switch is fully protected against dust and temporary water ingress, making it suitable for use in damp or dusty environments. The Slow-Break function ensures that the normally open contact is activated before the normally closed contact, guaranteeing safe disconnection of the power supply.

Compatibility and Accessories

The XCSA703 can be combined with various operating and mounting accessories to adapt to specific requirements. These include, for example, the XCS-Z05 crossbar actuator, the XCS-Z01 actuator for position switches XCSPA/TE, the XCSZ03 actuator with offset mounting, and the XCSZ02 actuator with wide mounting. These accessories expand mounting and operating options and enable flexible integration into existing systems.

Mounting and Installation

Installation is performed via the integrated 1/5,1 cm ( 2 inch )-NPT cable entry, which enables a secure and tight connection to the connecting cable. The robust construction and adjustable revolver head facilitate mounting at various positions and angles. The switches are designed for wiring according to the recommendations of relevant standards to ensure safe and reliable operation.

Operational Advantages

The XCSA703 offers high reliability and safety through compliance with standards EN/ISO 13849-1, EN/IEC 61508, as well as Category 4, Performance Level PL e, and SIL 3. These certifications guarantee high safety performance in critical applications. The robust design and IP67 protection rating ensure a long service life even under harsh operating conditions. The key operation prevents unauthorized operation, thereby increasing workplace safety.

General
Degree of protectionIP67
Switching function1 normally closed contact (NC) + 2 normally open contacts (NO)
Normally closed contact (NC) functionNormally closed contact (NC) before switching on (Slow Break)
Cable entry1/2" NPT
Body materialZamac
Body coatingRed
ActuationAdjustable revolver head
Safety category4
Power classPL e
SIL3
Compliance with standardsEN/ISO 13849-1, EN/IEC 61508


Product data sheet
Datasheet for Schneider Electric XCSA703, EAN: 3389110718881

Questions & answers

What is the delivery time of Schneider Electric XCSA703 safety position switch NPT ÖÖS?

The article Schneider Electric XCSA703 safety position switch NPT ÖÖS is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schneider Electric XCSA703 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Schneider Electric XCSA703 safety position switch NPT ÖÖS always at the best possible price. We can give you a discount of 2% on Schneider Electric XCSA703 safety position switch NPT ÖÖS if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Schneider Electric XCSA703 safety position switch NPT ÖÖS we can offer you a price of 131,29 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
