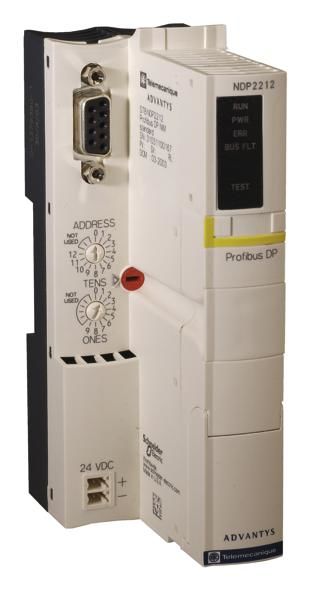

Schneider Electric STBNDP2212 Profibus DB Standard HMI-port

Your rating:
Average rating
product review for Schneider Electric STBNDP2212 Profibus DB Standard HMI-port
( 4.7 / 5 ) 12 ratings
295,11 EUR 308,09 EUR
( 351,18 EUR incl. VAT )
≈ £247.01  |  ≈ $324.33
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 10 workdaysinfo_outline
1x Schneider Electric STBNDP2212 Profibus DB Standard HMI-port
Datasheet:file_download Download
Lieske Part No.:980497
Mfg Part No: STBNDP2212
UPC/EAN: 3595862055130
Weight:0.177 kg
Type:STBNDP2212

Product information for Schneider Electric STBNDP2212:

Modicon OTB / Modicon STB. Fieldbus coupling module. Fieldbus coupling module Standard STB, Profibus DP, 9.6 kBit/s. Power supply c 24 V.

Complementary
Integrated connection typeProfibus DP conforming to DIN 19245 part 1 and 3 9-way female RS485 SUB-D 1 twisted shielded pair (bus); Profibus DP conforming to DIN 19245 part 1 and 3 HE-13 (RS232 port); Profibus DP conforming to DIN 19245 part 1 and 3 8-way female (RS232 port)
Number of segments1 primary, maximum 6 extensions
Number of server device(s)125
Structure typeIndustrial field bus DP V.0
Number of addressable I/O module0…32 per island
Input current430 mA for supply circuit
Nominal output current0.575 A at 60…70 °C; 1.2 A
Maximum output impedance0.05 Ohm at 100000 kHz
Output voltage5.25 V DC (tolerance: +/- 0.21 %) for logic bus
Electromagnetic compatibilityImmunity to electromagnetic interference conforming to IEC 61131-2
Transmission rate12 Mbit/s
Communication serviceDiagnostics; Read/write DP slave I/O data; Configuration control; Slave configuration
Power supply typeSELV
Local signalling1 LED green for BUSFLT; 1 LED green for island state (RUN); 1 LED green for power supply (PWR); 1 LED red for module error (ERR); 1 LED yellow for test mode
Height40 mm
Width128.3 mm
Depth70 mm
Contractual warranty
Warranty (in months)18
Environment
IP degree of protectionIP20
MarkingCE
Product certificationsC-Tick; CSA; ATEX Cat 3G; FM Class 1 Division 2; UL
Ambient air temperature for operation0…60 °C without derating; -25…70 °C with derating factor
Ambient air temperature for storage-40…85 °C
Relative humidity95 % at 60 °C without condensation
Vibration resistance3 gn (f = 58…150 Hz) on 35 mm DIN rail; 5 gn (f = 58…150 Hz) on 35 mm DIN rail; +/-0.35 mm (f = 10…58 Hz)
Shock resistance30 gn for 11 ms conforming to IEC 88 reference 2-27
Logistical informations
Country of originFR
Main
Range of productModicon STB distributed I/O solution
Product or component typeStandard Network Interface Module
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height7.0 cm
Package 1 Width4.7 cm
Package 1 Length13.0 cm
Package 1 Weight177.0 g
Unit Type of Package 2S02
Number of Units in Package 230
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight5.588 kg


Product data sheet
Datasheet for Schneider Electric STBNDP2212, EAN: 3595862055130
