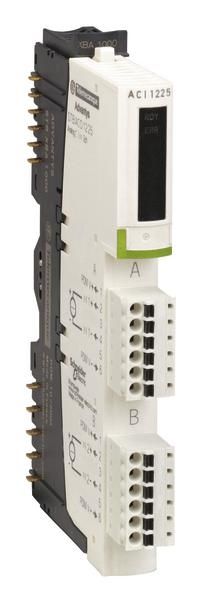

Schneider Electric STBACI1225K
Kit 2 analog in 10 bit / 11 + ISOL. 4-20mA content_copy

This product is part of the Modicon STB range, a range of modular distributed I/O. This analog input basic kit is an accessory kit for programmable logic controllers (PLCs) and programmable automation controllers (PACs). It has 2 analog inputs (current 4mA to 20mA) with 10bit resolution. This product is compatible with most common fieldbus networks. It is an analog input kit with a nominal supply voltage of 24V DC and a current consumption of 30mA at 5V DC for the logic bus. The response time is 5ms. It is an IP20 product. The dimensions are 128.3 mm (width) x 70 mm (depth) x 13.9 mm (height). It is suitable for applications in packaging, bottling, assembly, distribution, textile, printing and semiconductor machinery. This product is certified by FM Class 1 Division 2, ATEX Category 3G, CE, UL, CSA and C-Tick. This kit is suitable for use with the STBXBA1000 mounting base and the STBPDT3100/3105 power distribution module. The kit includes STBXTS1100, 6-pin screw connector, STBXBA1000 base, STBXTS2100, 6-pin spring clamp connector and STBACI1225 module. The Modicon STB distributed I/O solution is an open, modular input/output system that can be used to develop automation islands. It can be managed by a higher-level controller via a bus or a communication network.
Type: STBACI1225K
