Schneider Electric BSH1403T31F1P
Schneider AC servo motor 27 content_copy

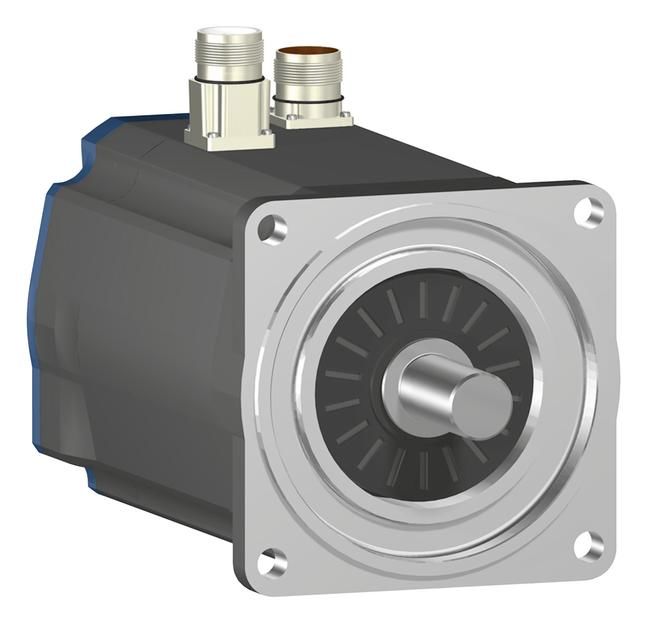

BSH servo motor from the Lexium 32 servo drive series. This BSH series of three-phase AC servo motors has a low rotor moment of inertia, which enables high acceleration capability for dynamic applications. Thanks to the winding technology, a higher power density is achieved in a compact design. This servo has a nominal continuous stall torque of 27.8 Nm and achieves a peak torque of 90.2 Nm. Its nominal speed is up to 3600 rpm depending on the supply voltage. This results in a voltage-dependent nominal power of up to 3430 W. The built-in encoder is designed as a single-turn with 128 periods/revolution (128x1024) as a SinCos Hiperface. The electrical connection is made via straight M40 + M23 connectors. The motor flange is 140 mm for fastening. The drive shaft has a diameter of 24 mm. The shaft end is designed with a key and complies with protection class IP65. The motor housing complies with protection class IP65. A holding brake is integrated. The servo amplifiers from the Lexium LXM32 series are recommended for operating the synchronous motor. Thanks to the Green Premium eco-label, you can receive detailed information on material content, environmental impact and circular economy that supports your sustainability goals.
Type: BSH1403T31F1P
