Schneider Electric BSH1004T11A2A Schneider AC servo motor 8 content_copy

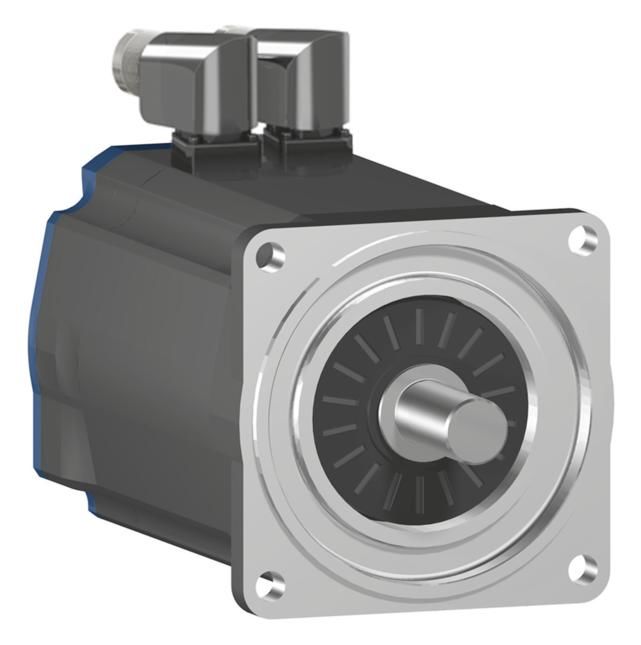

BSH servo motor from the Lexium 32 servo drive series. This BSH series of three-phase AC servo motors has a low rotor moment of inertia, which enables high acceleration capability for dynamic applications. Thanks to the winding technology, a higher power density is achieved in a compact design. This servo has a nominal continuous stall torque of 10 Nm and achieves a peak torque of 40.5 Nm. Its nominal speed is up to 3600 rpm depending on the supply voltage. This results in a voltage-dependent nominal power of up to 2.6 kW. The built-in encoder is designed as a single-turn with 128 periods/revolution (128x1024) as a SinCos Hiperface. The electrical connection is made via 2x M23 connectors, angled by 90° and rotatable. The motor flange is 100 mm for fastening. The drive shaft has a diameter of 24 mm. The shaft end is designed with a key and complies with protection class IP54. The motor housing complies with protection class IP54. There is no holding brake. The Lexium LXM32 series servo drives are recommended for operating the synchronous motor. Thanks to the Green Premium eco-label, you can obtain detailed information on material content, environmental impact and circular economy that supports your sustainability goals.
