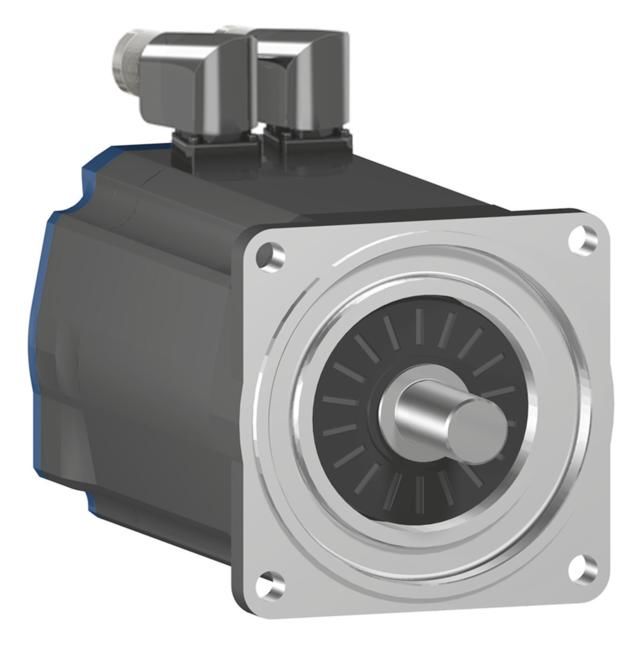

Schneider Electric BSH1003P12A2A Schneider Motor 7.8Nm NUT IP54 Multi. off.

This image may differ from the desired article.

2.075,70 EUR

( 2.470,08 EUR incl. VAT )

plus delivery charges

Delivery time on request

Printing view Bookmark Wholesale Inquiry

Datasheet:

Download

Lieske Part No.:

449621

Mfg Part No:

BSH1003P12A2A

UPC/EAN:

3389118140264

Weight:

0 kg

Graduated prices net

From pieces	Price per pieces
2	2.044,56 EUR
4	2.013,43 EUR
6	1.982,29 EUR
8	1.951,16 EUR

Further Engines and accessories from Schneider Electric Further products in category Engines and accessories All products of Schneider Electric

Product information for Schneider Electric BSH1003P12A2A:

BSH servo motor from the Lexium 32 servo drive series. This BSH series of three-phase AC servo motors has a low rotor moment of inertia, which enables high acceleration capability for dynamic applications. Thanks to the winding technology, a higher power density is achieved in a compact design. This servo has a nominal continuous stall torque of 8.0 Nm and achieves a peak torque of 28.3 Nm. Its nominal speed is up to 4800 rpm depending on the supply voltage. This results in a voltage-dependent nominal power of up to 2560 W. The built-in encoder is designed as a multiturn with 128 periods/revolution (128x1024x4096) as a SinCos Hiperface. The electrical connection is made via 2x M23 connectors, angled by 90° and rotatable. The motor flange is 100 mm for fastening. The drive shaft has a diameter of 19 mm. The shaft end is designed with a key and complies with protection class IP54. The motor housing complies with protection class IP54. There is no holding brake. The Lexium LXM32 series servo drives are recommended for operating the synchronous motor. Thanks to the Green Premium eco-label, you can obtain detailed information on material content, environmental impact and circular economy that supports your sustainability goals.

Product data sheet

Datasheet for Schneider Electric BSH1003P12A2A, EAN: 3389118140264

Questions & answers

What is the delivery time of Schneider Electric BSH1003P12A2A Schneider Motor 7.8Nm NUT IP54 Multi. off.?

The article Schneider Electric BSH1003P12A2A Schneider Motor 7.8Nm NUT IP54 Multi. off. is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schneider Electric BSH1003P12A2A to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Schneider Electric BSH1003P12A2A Schneider Motor 7.8Nm NUT IP54 Multi. off. always at the best possible price. We can give you a discount of 2% on Schneider Electric BSH1003P12A2A Schneider Motor 7.8Nm NUT IP54 Multi. off. if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Schneider Electric BSH1003P12A2A Schneider Motor 7.8Nm NUT IP54 Multi. off. we can offer you a price of 2.044,56 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

1x	Schneider Electric BSH1003P12A2A - AC servo motor BSH - 7.8 N.m - 2500 rpm - keyed shaft - without b Schneider Electric BSH1003P12A2A Schneider Motor 7.8Nm NUT IP54 Multi. off.	2.075,70 EUR
