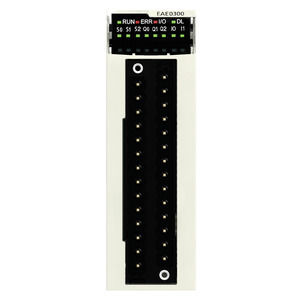

Schneider Electric BMXEAE0300 SSI Encoder Interface 3 channels
|
-10% 767,97 EUR 853,30 EUR |
|
|
( 913,88 EUR incl. VAT ) ≈ £642.79 | ≈ $844.00 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 8 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 964850 |
| Mfg Part No: | BMXEAE0300 |
| UPC/EAN: | 3595864126685 |
| Weight: | 0.167 kg |
| Type: | BMXEAE0300 |
Product information for Schneider Electric BMXEAE0300:
| Complementary | |
| Data format | 8...31 bits |
| Transmission rate | 500 kbauds; 200 kbauds; 1 Mbauds; 100 kbauds |
| Refresh time | 1 ms |
| Input compatibility | 24 V DC SSI absolute encoder (voltage limits: 19.2…30 V) for 200 mA per channel |
| Dielectric strength | 1400 V DC 60 s |
| [Us] rated supply voltage | 19.2...30 V DC |
| Protection type | Overvoltage protection DC |
| Current consumption | 150 mA at 3.3 V DC for back plane, (typical); 250 mA at 3.3 V DC for back plane, (maximum) |
| Net weight | 0.138 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
| Environment | |
| Ambient air temperature for operation | 0…60 °C |
| Operating altitude | 0...4000 m |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE; RCM; CSA; EAC; Merchant Navy; UL |
| Standards | IEC 61010-2-201; IEC 61131-2; UL 61010-2-201; CSA C22.2 No 61010-2-201 |
| Logistical informations | |
| Country of origin | FR |
| Main | |
| Range of product | Modicon X80 |
| Product or component type | Encoder interface module |
| Function available | Offset; Compare; Modulo; Reduction; Capture |
| Number of channels | 3 SSI channel |
| Number of outputs | 1 24 V DC reflex digital output for each SSI channel |
| Number of inputs | 2 24 V DC capture digital inputs for the 3 SSI channels |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 11.000 cm |
| Package 1 Length | 11.500 cm |
| Package 1 Weight | 167.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.800 kg |
