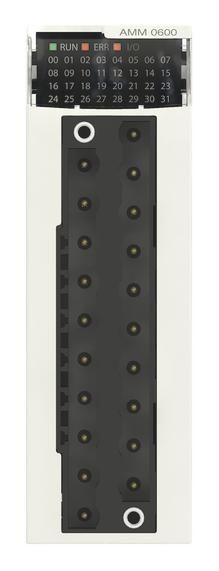

Schneider Electric BMXAMM0600H
Schneider Analogue I/O module M340 4 inputs. 0-20mA 2Output 0-20mA content_copy

This analog non-isolated input and output module is part of the Modicon X80 range, a range of common input/output and communication modules, power supplies and module carriers for Modicon M340 and Modicon M580. This product consists of 4 input channels and 2 output channels. This robust product can be used in harsher environments and in an extended temperature range of -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a unified environment for the use of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It is equipped with a 20-pin connector for electrical connection. There are no isolation channels between channels and ground at 1400V DC, channels and bus at 1400V DC and groups of I/O channels at 750V DC. This product is IP20 rated and offers an MTBF of 1,364,412 hours. This product is certified by CE, UL, CSA, RCM, EAC, UKCA and Merchant Navy and complies with EN 61000-6-5 and EN 61850-3. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-pin cage, screw terminal or removable spring terminal block. The product must be installed in the module carrier and secured with 2 screws.
