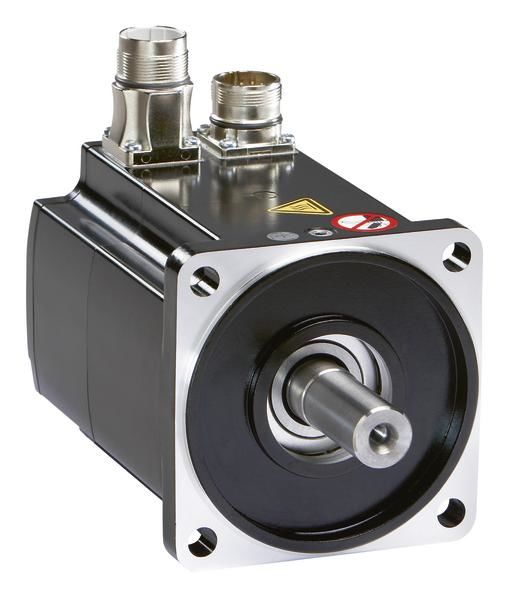

Schneider Electric BMH2053P17F2A
Schneider servo motor 84Nm 3800rpm shaft end with fitting + brake
|
7.953,49 EUR 8.043,24 EUR |
|
|
( 9.464,65 EUR incl. VAT ) ≈ £6,824.09 | ≈ $9,218.09 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 748925 |
|---|---|
| Mfg Part No: | BMH2053P17F2A |
| UPC/EAN: | 3606485202532 |
| Weight: | 0.123 kg |
Further Engines and accessories from Schneider ElectricFurther products in category Engines and accessories
All products of Schneider Electric
Product information for Schneider Electric BMH2053P17F2A:
BMH servo motor from the Lexium 32 servo drive series. The BMH series of three-phase AC servo motors has a medium rotor moment of inertia and is perfectly suited for applications with high loads. Thanks to the winding technology, a very high power density is achieved in a compact design. This servo has a nominal continuous stall torque of 88 Nm and reaches a peak torque of 330 Nm. Its nominal speed is up to 2000 rpm depending on the supply voltage. This results in a voltage-dependent nominal power of up to 9.4 kW. The built-in encoder is designed as a multi-turn with 16 periods/revolution (16x1024x4096) as a SinCos Hiperface. The electrical connection is made via M40 and M23 connectors, angled by 90° and rotatable. The motor flange for fastening is 205 mm. The drive shaft has a diameter of 38 mm. The shaft end is designed as a key and complies with protection class IP54. The motor housing corresponds to protection class IP54. A holding brake is integrated. The servo amplifiers from the Lexium LXM32 series are recommended for operating the synchronous motor. Thanks to the Green Premium eco-label, you can receive detailed information on material content, environmental impact and circular economy that supports your sustainability goals.
Type: BMH2053P17F2A
Type: BMH2053P17F2A
Questions & answers
What is the delivery time of Schneider Electric BMH2053P17F2A Schneider servo motor 84Nm 3800rpm shaft end with fitting + brake?
The article Schneider Electric BMH2053P17F2A Schneider servo motor 84Nm 3800rpm shaft end with fitting + brake is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schneider Electric BMH2053P17F2A to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schneider Electric BMH2053P17F2A Schneider servo motor 84Nm 3800rpm shaft end with fitting + brake always at the best possible price. We can give you a discount of 2% on Schneider Electric BMH2053P17F2A Schneider servo motor 84Nm 3800rpm shaft end with fitting + brake if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
