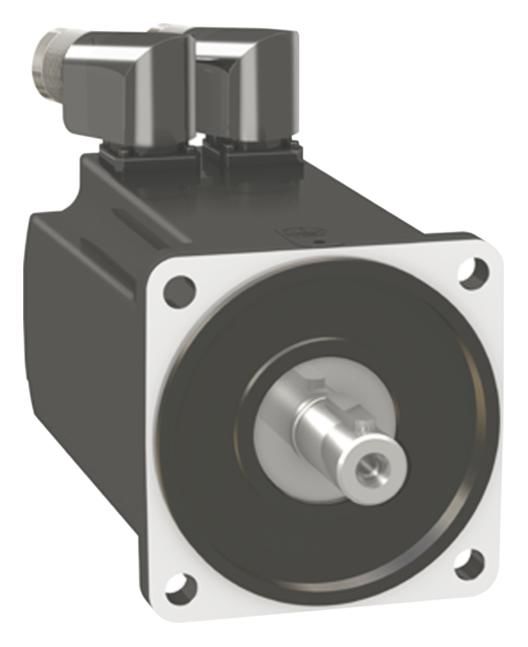

Schneider Electric BMH1002T22A2A
Schneider servo motor 6Nm 6000rpm smooth shaft end without brake IP65
|
1.855,09 EUR 1.876,02 EUR |
|
|
( 2.207,56 EUR incl. VAT ) ≈ £1,591.67 | ≈ $2,150.05 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 669218 |
|---|---|
| Mfg Part No: | BMH1002T22A2A |
| UPC/EAN: | 3606485197395 |
| Weight: | 0.123 kg |
Further Engines and accessories from Schneider ElectricFurther products in category Engines and accessories
All products of Schneider Electric
Product information for Schneider Electric BMH1002T22A2A:
BMH servo motor from the Lexium 32 servo drive series. The BMH series of three-phase AC servo motors has a medium rotor moment of inertia and is perfectly suited for applications with high loads. Thanks to the winding technology, a very high power density is achieved in a compact design. This servo has a nominal continuous stall torque of 6.1 Nm and achieves a peak torque of 18.3 Nm. Its nominal speed is up to 3500 rpm depending on the supply voltage. This results in a voltage-dependent nominal power of up to 1760 W. The built-in encoder is designed as a multiturn with 128 periods/revolution (128x1024x4096) as a SinCos Hiperface. The electrical connection is made via 2x M23 connectors, angled by 90° and rotatable. The motor flange is 100 mm for fastening. The drive shaft has a diameter of 19 mm. The shaft end is smooth and conforms to protection class IP65. The motor housing conforms to protection class IP65. There is no holding brake. The Lexium LXM32 series servo drives are recommended for operating the synchronous motor. Thanks to the Green Premium eco-label, you can obtain detailed information on material content, environmental impact and circular economy that supports your sustainability goals.
Type: BMH1002T22A2A
Type: BMH1002T22A2A
Questions & answers
What is the delivery time of Schneider Electric BMH1002T22A2A Schneider servo motor 6Nm 6000rpm smooth shaft end without brake IP65?
The article Schneider Electric BMH1002T22A2A Schneider servo motor 6Nm 6000rpm smooth shaft end without brake IP65 is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schneider Electric BMH1002T22A2A to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schneider Electric BMH1002T22A2A Schneider servo motor 6Nm 6000rpm smooth shaft end without brake IP65 always at the best possible price. We can give you a discount of 2% on Schneider Electric BMH1002T22A2A Schneider servo motor 6Nm 6000rpm smooth shaft end without brake IP65 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
