Schneider Electric BMH0701P11A1A Schneider servo motor 1 8000rpm shaft end with pass. without breaks

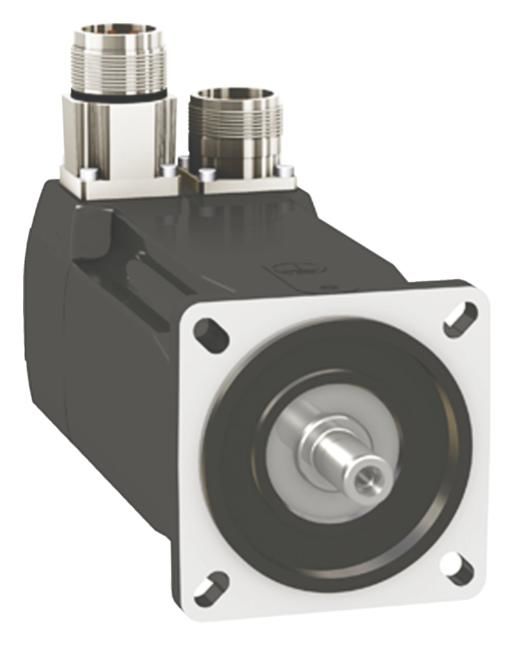

BMH servo motor from the Lexium 32 servo drive series. The BMH series of three-phase AC servo motors has a medium rotor moment of inertia and is perfectly suited for applications with high loads. Thanks to the winding technology, a very high power density is achieved in a compact design. This servo has a nominal continuous stall torque of 1.4 Nm and achieves a peak torque of 4.2 Nm. Its nominal speed is up to 7000 rpm depending on the supply voltage. This results in a voltage-dependent nominal power of up to 930 W. The built-in encoder is designed as a single-turn with 128 periods/revolution (128x1024) as a SinCos Hiperface. The electrical connection is made via 2x M23 connectors in a straight design. The motor flange is 70 mm for fastening. The drive shaft has a diameter of 11 mm. The shaft end is designed as a key and complies with protection class IP54. The motor housing corresponds to protection class IP54. There is no holding brake. The servo amplifiers from the Lexium LXM32 series are recommended for operating the synchronous motor. Thanks to the Green Premium eco-label, you can receive detailed information on material content, environmental impact and circular economy that supports your sustainability goals.
Type: BMH0701P11A1A
