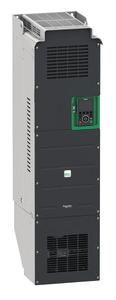

Schneider Electric ATV930C11N4C frequency, 400 / 480V without braking module IP00
|
10.678,95 EUR 11.128,59 EUR |
|||||||||||
|
( 12.707,95 EUR incl. VAT ) ≈ £9,045.07 | ≈ $11,960.42 plus delivery charges |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 636154 | ||||||||||
| Mfg Part No: | ATV930C11N4C | ||||||||||
| UPC/EAN: | 3606480883453 | ||||||||||
| Weight: | 76.4 kg | ||||||||||
| Type: | ATV930C11N4C | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Frequency converter, soft starter from Schneider ElectricFurther products in category Frequency converter, soft starter
All products of Schneider Electric
Product information for Schneider Electric ATV930C11N4C:
Altivar 900 process frequency converter - converter for moving solid bodies & mechanics e.g. crushers, mixers, extruders, conveyor belts, cranes. Wall mounting. Frequency converter ATV930, without brake module, IP 21, conformity UL Type 1. Dimensions 320 x 852 x 393320 x 1157 x 393 mm, power KW 110 kW. Supply voltage, three-phase 380-480 V 50/60 Hz. Output frequency 0.1-500 Hz. Overload in normal operation 120% for 60s, overload in high overload mode 150% for 60s (when downgraded by one power class). Control types asynchronous motors, constant torque, variable torque, optimized torque mode, synchronous motor PM, (permanent magnet) motor. Integrated web server with direct access to system configuration and monitoring, simple master/slave coupling via Ethernet, with load balancing. Application functions for e.g. conveyor belts or cranes. Continuous and historical real-time measurements with customer-specific customizable dashboards. Integrated safety function STO (Safe Torque Off) SIL3. Number of integrated I/O Analog inputs 2 analog differential inputs, logic inputs 8, relay outputs 3, analog outputs 2. Integrated communication Ethernet-based (with 2 ports, internally switched) Modbus/TCP, Ethernet/IP. Serial communication Modbus RS485 interface. Configuration and control elements Decentralized graphical operator terminal, integrated web server, DTM (Device Type Manager), SoMove software. Optional I/O expansion cards, relay output cards. Optional communication cards (CANopen Daisy Chain RJ45, Sub-D and screw terminals, ProfiNet, Profibus DP V1, EtherCAT and DeviceNet).
Questions & answers
What is the delivery time of Schneider Electric ATV930C11N4C frequency, 400 / 480V without braking module IP00?
The article Schneider Electric ATV930C11N4C frequency, 400 / 480V without braking module IP00 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schneider Electric ATV930C11N4C to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schneider Electric ATV930C11N4C frequency, 400 / 480V without braking module IP00 always at the best possible price. We can give you a discount of 2% on Schneider Electric ATV930C11N4C frequency, 400 / 480V without braking module IP00 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Schneider Electric ATV930C11N4C frequency, 400 / 480V without braking module IP00 we can offer you a price of 10.438,67 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
