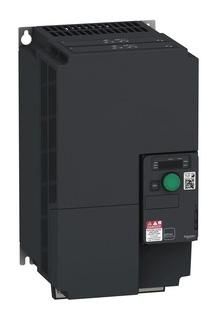

Schneider Electric ATV320D11M3C
Schneider ATV320 11KW 230V 3PH COMPACT
|
1.764,15 EUR 1.838,43 EUR |
|||||||||||
|
( 2.099,34 EUR incl. VAT ) ≈ £1,513.64 | ≈ $2,044.65 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1859847 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | ATV320D11M3C | ||||||||||
| UPC/EAN: | 3606480966699 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Frequency converter, soft starter from Schneider ElectricFurther products in category Frequency converter, soft starter
All products of Schneider Electric
Product information for Schneider Electric ATV320D11M3C:
The Altivar Machine ATV320 range is a variable speed drive offering designed for original equipment manufacturers (OEMs). Its compact form factor allows vertical stacking of drives in machine frames. It operates with rated power up to 11 kW / 15 HP and rated voltage from 200 V to 240 V AC. Its robust construction with coated circuit boards class 3C3 according to IEC 60721-3-3 allows extending machine availability in harsh environmental conditions. Such as ambient temperatures up to 60°C without the need for additional cooling. It has features suitable for the most common applications including torque and speed accuracy at very low speeds, high dynamic performance with sensorless flux vector control. It has extended frequency range for high speed motors. It also allows parallel connection of motors and special drives using voltage/frequency ratio. As well as static speed accuracy and energy saving for open loop synchronous motors. It weighs 6.8 kg and has dimensions of 180 mm width, 330 mm height and 198 mm depth. The drive software includes 5 safety functions. These help machines meet safety requirements whether they are used in conjunction with a Preventa safety module or not. These safety functions are configured using SoMove software. Altivar Machine ATV320 is designed for original equipment manufacturers (OEMs). They cover simple and advanced application requirements in the packaging, material handling, textile, material processing, mechanical actuators and lifting operations. It complies with IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available for Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive power. The product is delivered in a box. It is designed to be mounted in a vertical position (+/- 10°) on a plate thanks to 4 fixing holes. It is fully integrated into the Schneider Electric EcoStruxure machine via DTM. It is possible to configure, control and diagnose ATV320 drives directly in the SoMachine and SoMove software using the same software building block (DTM). It is environmentally friendly and complies with directives such as RoHS, WEEE, etc. on environmental protection.
Type: ATV320D11M3C
Type: ATV320D11M3C
Questions & answers
What is the delivery time of Schneider Electric ATV320D11M3C Schneider ATV320 11KW 230V 3PH COMPACT?
The article Schneider Electric ATV320D11M3C Schneider ATV320 11KW 230V 3PH COMPACT is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schneider Electric ATV320D11M3C to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schneider Electric ATV320D11M3C Schneider ATV320 11KW 230V 3PH COMPACT always at the best possible price. We can give you a discount of 2% on Schneider Electric ATV320D11M3C Schneider ATV320 11KW 230V 3PH COMPACT if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Schneider Electric ATV320D11M3C Schneider ATV320 11KW 230V 3PH COMPACT we can offer you a price of 1.711,23 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
